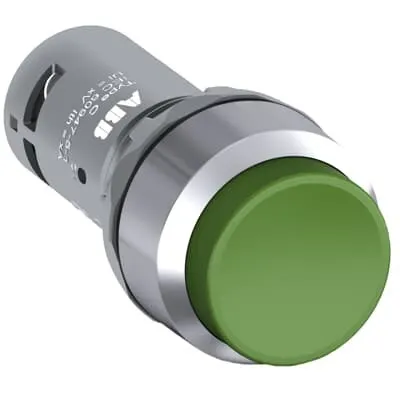

ABB 1SFA619102R3072 Pushbutton - Front IP66/IP67/IP69K
Part Number: 1SFA619102R3072
Quick Summary
1SFA619102R3072 Pushbutton by ABB provides compact, momentary signaling for control panels in industrial automation. Engineers often struggle with long installation times and bulky assemblies; this compact pushbutton reduces panel footprint and wiring complexity. It carries CE and UKCA marks and is supported by CB and cURus certifications for global compliance. With a chrome bezel, green extended actuator, and robust IP protection, it supports safer operation and easier maintenance in demanding environments. This pilot device also complements other ABB compact devices, offering a reliable, scalable solution for panel-mounted control circuits and standardized signaling in automation projects.
Product Information
Extended Description
1SFA619102R3072 ABB: The CP3-30G-11 Pushbutton is: Compact - Pushbutton - Momentary - Extended - Green - Non-illuminated - Chrome Metal - 1NO+1NC - 1 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Extended
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.364 kg
Package Level 1 EAN
7320500243800
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Compact and lightweight design: The 1NO+1NC momentary pushbutton helps shrink panel real estate while maintaining clear visual signaling. Business impact is faster enclosure assembly and reduced wiring complexity during panel builds, especially in tight control cabinets used for conveyors and packaging lines. Application: panel mounting in industrial automation setups. Rugged front protection: Front IP66 IP67 IP69K ratings guard against dust, water, and high-pressure washdowns, lowering maintenance frequency and lifecycle costs in food & beverage or chemical processing environments. Application: harsh environments where washdowns or dust exposure are common. Electrical robustness: Ui 300 V, Uimp 6 kV, AC-15 current up to 2 A at 240 V, DC-13 up to 0.3 A at 24 V, with a max power loss of 5 W; the device delivers reliable control signaling with safe derating and predictable thermal performance. Business impact: improved machine uptime and risk management; Application: control circuits in automation panels. Wiring and installation: Screw clamp connectors with 0.8 N·m tightening torque and 6 mm wire stripping length allow secure, repeatable field wiring; compatible with ferrule and insulated ferrule terminations. Application: easy maintenance and quick replacements in field service. Compliance and lifecycle: RoHS, REACH, TSCA, and WEEE commitments along with CE/UKCA and CB/CURus certifications support global procurement and long product lifecycle. Business impact: regulatory confidence and lower total cost of ownership due to global suitability and documented conformity. Durability and weight: 0.5 million mechanical cycles and a compact mass (0.036 kg) enable high-cycle applications without adding significant weight to the control enclosures. Application: high-use control stations and distributed control panels. Chrome bezel and extended actuator ensure legible signaling in tight spaces, while non-illuminated operation reduces power consumption in low-light environments.
Get a Quick Quote for a ABB 1SFA619102R3072
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619102R3072?
Enquire Now
FAQs
Yes. The design uses screw clamp terminals with a tightening torque of 0.8 N·m and a 6 mm wire stripping length, compatible with ferrules and insulated ferrules for reliable field wiring and straightforward replacements.
It features a rated insulation voltage of 300 V, rated impulse withstand of 6 kV, and supports AC-15 up to 2 A at 240 V and DC-13 up to 0.3 A at 24 V, with a maximum power loss of 5 W.
Front protection IP66/IP67/IP69K makes it ideal for dusty, wet, or washdown environments such as food processing, water treatment, and outdoor equipment, where ingress protection directly impacts reliability and maintenance intervals.
The pushbutton is CE and UKCA marked, and accompanied by CB Certificate, cURus, EAC, and other declarations (REACH/RoHS) to support global procurement and regulatory compliance.
With 0.5 million mechanical cycles, robust environmental sealing, and a compact, lightweight design, it reduces spare parts, installation time, and downtime, delivering lower maintenance costs and higher uptime in high-use control panels.
