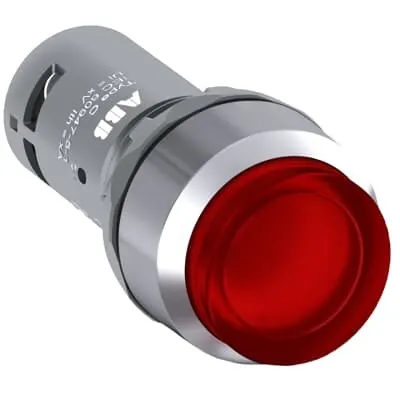

ABB 1SFA619102R3111 Pushbutton - Front IP66/IP67/IP69K
Part Number: 1SFA619102R3111
Quick Summary
Pushbutton 1SFA619102R3111 provides compact, illuminated control for industrial automation panels. Engineers often struggle with space constraints, wiring complexity, and maintenance overhead when upgrading pilot devices. This model offers front protection ratings IP66, IP67, and IP69K, plus a chrome bezel and CE/RoHS/CB/EAC/UKCA certifications to ensure reliability in demanding environments. The compact range reduces panel space, while 24 V LED signaling improves operator feedback. With screw terminals and a tight 0.8 N·m torque, installation time is minimized and long-term maintenance is simplified, delivering lower total cost of ownership and higher system uptime.
Product Information
Extended Description
1SFA619102R3111 ABB: The CP3-31R-10 Pushbutton is: Compact - Pushbutton - Momentary - Extended - Red - Illuminated - Chrome Metal - 1NO - Red - 1 NO - 0 NC - , 24 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.039 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Extended
Bezel Material
Chrome Metal
Illumination
Illuminated
Lamp Type
LED 24V AC/DC
Function
Momentary
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz | Supply Circuit 50 / 60 Hz
Rated Operational Voltage
24 V AC/DC | Maximum 300 V | Supply Circuit 24 V AC/DC
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.394 kg
Package Level 1 EAN
7320500409060
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
E-Number (Finland)
2312209
Feature The extended actuator and chrome metal bezel deliver durable, easy-to-clean status indication that fits tight panel footprints. Business Impact The compact form factor saves enclosure space and reduces assembly complexity, translating to quicker installs and fewer component conflicts. Application Panel-mounted control points in small automation cabinets benefit from a cleaner, faster wiring process and improved operator visibility. Feature 24 V LED illumination and 1 NO / 0 NC configuration provide clear signaling for start/stop functions. Business Impact Clear operator feedback reduces misoperation and downtime, while the low power consumption supports energy efficiency in multi-point control systems. Application Suitable for machine controls in manufacturing lines where reliable illumination is essential. Feature Screw clamp terminals and 0.8 N·m tightening torque simplify field wiring and ensure robust connections. Business Impact Faster commissioning, reduced field service time, and lower connection failure risk. Application Ideal for retrofit projects where existing pilots require quick replacement without re-engineering harnesses. Feature Front protection IP66 / IP67 / IP69K enables washdown readiness in harsh environments. Business Impact Maintains performance in dusty or wet settings, extending equipment life. Application Food & beverage, pharmaceutical, and general industrial automation environments benefit from enhanced ingress protection. Feature Enclosure compatibility Type1 | Type12 | Type13 | Type3R | Type4 | Type4X broadens installation options. Business Impact Enables flexible mounting across different cabinet standards, reducing need for adapters. Application Global deployments with varied enclosure requirements gain standardization. Feature RoHS/REACH/EAC/CB/UKCA compliance ensures regulatory alignment. Business Impact Lowers risk of non-compliance penalties and speeds market entry. Application Global procurement and cross-border deployments.
Get a Quick Quote for a ABB 1SFA619102R3111
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619102R3111?
Enquire Now
FAQs
The 1SFA619102R3111 is part of ABB's CP3-31R-10 family with a screw-clamp terminal setup and 1NO/0NC configuration. It supports 24 V LED signaling and integrates with standard control panels and pilot-device ecosystems. Its compatibility is enhanced by the compact form factor, robust enclosure ratings, and documented wiring schemes.
Electrical ratings include 24 V AC/DC operation with DC-13 at 0.3 A and AC-15 at up to 2 A, plus a maximum power loss of 2.5 W. Termination uses Screw Clamp terminals with flexible ferrule options and UL/CSA compatible wiring up to 22–14 AWG, ensuring reliable field connections and straightforward installation.
Yes. The device features front protection ratings IP66, IP67, and IP69K, making it highly suitable for washdown and dusty environments. The chrome bezel and extended actuator contribute to durability, and enclosure compatibility supports mounting in Type 1, Type 12, Type 13, Type 3R, Type 4, and Type 4X cabinets.
The unit carries CE, UKCA, CB, cURus, EAC, RoHS, REACH, and TSCA declarations, along with CMRT and WEEE classifications. These certifications simplify regulatory approval, support global deployment, and reduce risk of non-compliance penalties while ensuring product safety and environmental responsibility.
With a mechanical durability rating of 0.5 million cycles and low power loss, the pushbutton offers long service life and reduced maintenance cycles. Its compact design lowers panel costs and installation time, while robust ingress protection minimizes downtime in challenging environments, delivering a favorable total cost of ownership over the device lifecycle.
