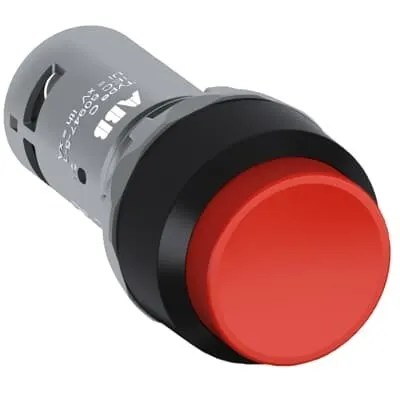

ABB 1SFA619103R1011 Pushbutton - Front IP69K Certification
Part Number: 1SFA619103R1011
Quick Summary
ABB 1SFA619103R1011 Pushbutton is a compact maintained pushbutton designed for control panels and distribution boards. This solution addresses space constraints and wiring complexity common in modern machine cabinets. It meets CE and IP69K front protection standards, with additional UKCA and RoHS declarations to support global compliance. By integrating this pilot device from ABB's compact range, engineers can streamline panel wiring, reduce installation time, and improve overall reliability in harsh environments where washdown and dust are factors. The product aligns with the needs of industrial engineers seeking robust, space-efficient, and compliant control interfaces for automation projects.
Product Information
Extended Description
1SFA619103R1011 ABB: The CP4-10R-10 Pushbutton is: Compact - Pushbutton - Maintained - Extended - Red - Non-illuminated - Black Plastic - 1NO - 1 NO - 0 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500243862
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312810
E-Number (Sweden)
3705478
Feature: Compact, extended actuator with red bezel and non-illuminated operation → Business Impact: Maximizes panel density and reduces enclosure footprint, enabling more functions in the same space → Application: Control panels in packaging lines and material handling systems. Feature: 1 normally open contact and 0 normally closed contacts → Business Impact: Simplifies wiring schemes and minimizes contactors, lowering bill-of-materials and fault potential → Application: Basic start/stop and status signaling in machine tools. Feature: Rated up to 300 V and AC-15 2 A / DC-13 0.3 A at 24–125 V → Business Impact: Broad compatibility with standard control circuits and DC/AC loads, reducing the need for relays → Application: Panel-mounted pilot devices in industrial automation. Feature: Screw clamp terminals with 0.8 N·m tightening torque and 6 mm wire stripping → Business Impact: Fast, reliable terminations with consistent torque ensures long-term reliability and compliance → Application: Field wiring on compact pilot devices in harsh environments. Feature: Front protection IP66/IP67/IP69K and terminal IP20 → Business Impact: Superior washdown and dust resistance, lowering maintenance frequency and downtime → Application: Food & beverage, automotive, and process lines where cleanliness is critical. Feature: UL/CSA, CB, CE/UKCA declarations and RoHS/REACH compliance → Business Impact: Smooth regulatory path and supplier risk mitigation for global installations → Application: Multi-region projects needing certified components. Feature: Data sheet and installation manuals included → Business Impact: Accelerates commissioning, reduces commissioning errors, and improves maintenance planning → Application: Commissioning of control panels and ongoing service operations.
Get a Quick Quote for a ABB 1SFA619103R1011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619103R1011?
Enquire Now
FAQs
The device uses screw clamp terminals with multiple compatible conductor options, including flexible and solid wires 0.5 to 1.5 mm². The recommended tightening torque is 0.8 N·m, and wire stripping length is 6 mm. UL/CSA support includes 1x 22…14 AWG and 2x 22…14 AWG, enabling straightforward integration into standard control circuits.
Yes. The CP4-10R-10 pushbutton offers front protection rated IP69K, along with IP66/IP67 for the enclosure interface, ensuring high resistance to dust and water ingress in demanding environments such as washdown zones and dusty production lines.
The device ships with CE and UKCA declarations, RoHS and REACH compliance, and additional certificates such as CB, CQC, cURus, CCC, DNV GL, and EAC where applicable. This broad certification support helps streamline regulatory approvals across multiple regions.
For AC-15, it supports up to 2 A at 240 V (and 220–240 V). For DC-13, it supports up to 0.3 A at 24 V and 0.2 A at 125 V. The rated insulation voltage is 300 V, with a rated impulse withstand voltage of 6 kV, facilitating compatibility with common control circuits.
The Compact Range delivers space-saving, non-illuminated pilot devices with robust IP ratings and compact dimensions (0.03 m width/height, 0.06 m depth). This reduces panel footprint, accelerates installation, simplifies maintenance, and lowers total cost of ownership for multi-channel control systems.
