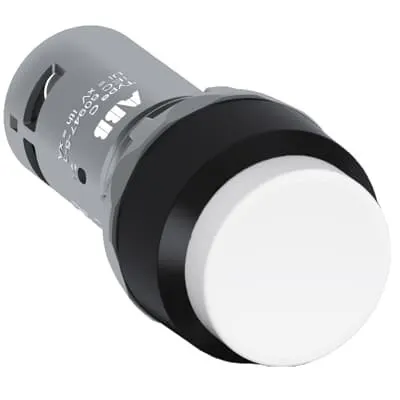

ABB 1SFA619103R1015 Pushbutton - IP66/IP67/IP69K
Part Number: 1SFA619103R1015
Quick Summary
ABB 1SFA619103R1015 Pushbutton is a compact, maintained control pushbutton for panel-mounted applications in industrial automation. It simplifies panel layouts and reduces wiring complexity, helping you cut installation time and downtime. This unit carries CE and UL/CSA compatibility, with UKCA, RoHS, and robust front protection to handle challenging environments. Its compact form, non-illuminated operation, and 1 NO contact arrangement deliver reliable control in confined spaces, while leveraging ABB's compact range for consistent performance across pilot devices. For procurement teams, the combination of space savings, standardization, and durable construction translates to lower inventory costs and faster project delivery.
Product Information
Extended Description
1SFA619103R1015 ABB: The CP4-10W-10 Pushbutton is: Compact - Pushbutton - Maintained - Extended - White - Non-illuminated - Black Plastic - 1NO - 1 NO - 0 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
White
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500243909
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312814
E-Number (Sweden)
3705482
Feature → Business Impact → Application: The compact form factor from ABB's compact range reduces panel footprint, enabling quicker installations and easier future modifications in control rooms and machine enclosures. This translates to tangible labor savings and less rewiring during upgrades on conveyors or packaging lines. Feature → Business Impact → Application: With screw clamp terminals and a 6 mm wire stripping length, wiring is faster, more reliable, and less prone to connection failure, reducing commissioning time on new lines or retrofits. Feature → Business Impact → Application: Rated 300 V and AC-15 2 A, plus DC-13 0.3 A at 24 V, supports common control circuits while maintaining safety, allowing designers to select a single device for multiple panel applications. Feature → Business Impact → Application: Front protection IP66/IP67/IP69K provides robust washdown tolerance and dust protection, lowering maintenance frequency in harsh environments such as food & beverage or chemical processing. Feature → Business Impact → Application: 0.5 million mechanical cycles offer long service life, lowering spare parts and maintenance costs for high-demand machines. Feature → Business Impact → Application: Non-illuminated operation minimizes power draw and reduces heat within enclosures, ideal for energy-conscious, cost-effective Control Panels.
Get a Quick Quote for a ABB 1SFA619103R1015
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619103R1015?
Enquire Now
FAQs
For installation, use the screw clamp terminals with flexible or solid conductors within 0.5 to 1.5 mm². Tighten to 0.8 N·m and strip 6 mm of insulation. Plan for panel cutouts to accommodate the 30 mm width and ensure the front face is protected to IP66/IP67/IP69K standards during assembly.
Key specs include rated voltage up to 300 V, AC-15 current up to 2 A at 240 V, and DC-13 current up to 0.3 A at 24 V. Power loss is a maximum of 2.5 W, with a mechanical durability of 0.5 million cycles, making it suitable for frequent actuation in control loops.
Yes. The front of the device provides IP66, IP67, and IP69K protection, while terminals are IP20. These ratings support use in dusty or washdown-prone environments typical of food processing, chemical handling, and outdoor installations, reducing risk of ingress and downtime.
The device carries CE and UL/CSA listings with UKCA and RoHS declarations, plus various regional certificates. This supports global deployments, simplifies supplier qualification, and helps meet regulatory and supplier standards in multiple markets.
The combination of compact size, long mechanical life, and compatible wiring reduces panel real estate, installation labor, and maintenance frequency. Standardized ABB components across the compact range also lowers spare parts inventory and accelerates project delivery, improving total cost of ownership.
