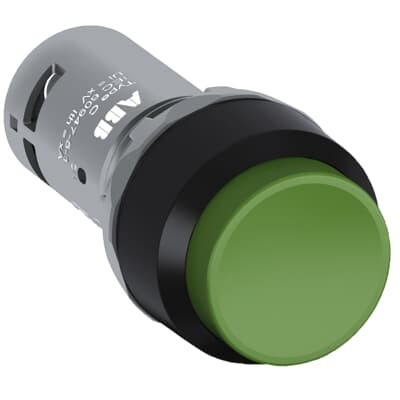

ABB 1SFA619103R1022 Pushbutton - 2NO Maintained IP66
Part Number: 1SFA619103R1022
Quick Summary
Pushbutton 1SFA619103R1022 is a compact maintained operator for control panels and safety circuits. Engineers contend with space constraints and complex wiring, which this compact design helps alleviate. It achieves front IP66/IP67/IP69K protection and CE/UKCA certifications, with RoHS and CB marks supporting global compliance. With 300 V rated operation and two NO contacts in a compact 0.022 kg package, it lowers installation time and lifecycle costs. As part of ABB's compact pilot devices range, it delivers quick wiring via screw clamps, reduces panel footprint, and simplifies regulatory traceability. This translates to faster time to market, lower assembly costs, and improved system reliability.
Product Information
Extended Description
1SFA619103R1022 ABB: The CP4-10G-20 Pushbutton is: Compact - Pushbutton - Maintained - Extended - Green - Non-illuminated - Black Plastic - 2NO - 2 NO - 0 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500243947
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
E-Number (Finland)
2312818
E-Number (Norway)
4373469
E-Number (Sweden)
3705486
Feature: Compact, maintained pushbutton with 2 NO and 0 NC contacts. Business Impact: Reduces panel footprint and wiring complexity, enabling faster panel assembly and easier maintenance in dense control environments. Application: Ideal for machine safety circuits and control cabinets where space is at a premium. Feature: Front protection IP66/IP67/IP69K. Business Impact: Ensures reliable operation in dusty, wet, and washdown environments, reducing nuisance trips and unplanned downtime. Application: Process lines, food & beverage, and outdoor installations; compatible with demanding environments. Feature: Screw Clamp terminals. Business Impact: Fast, secure wiring with consistent torque (0.8 N·m) and straightforward field service. Application: Industrial panels requiring robust, tool-friendly connections. Feature: Rated 300 V and dual AC/DC currents. Business Impact: Supports a wide range of control circuits, enabling cross-platform integration. Application: General control and automation panels with mixed voltage requirements. Feature: Mechanical Durability (0.5 million) and 5 W power loss. Business Impact: Long service life with minimal energy waste, lowering maintenance costs. Application: High-cycle applications where reliability matters. Feature: Compact weight (0.022 kg) and extended actuator. Business Impact: Simplifies mounting, reduces shipping, and lowers installation time. Application: Tight spaces and modular panel designs. Feature: Compliance and certifications (CE, UKCA, CB, ROHS). Business Impact: Eases regulatory approvals and global deployment. Application: Multinational facilities requiring consistent pilot device standards.
Get a Quick Quote for a ABB 1SFA619103R1022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619103R1022?
Enquire Now
FAQs
Install by mounting the device in the appropriate panel cutout and securing the wiring with the screw clamp terminals. Use 0.8 N·m tightening torque on the terminals, ensure a 6 mm wire stripping length, and confirm there are two NO contacts and no NC contacts engaged. This approach minimizes miswiring and guarantees stable electrical contact in demanding environments.
The pushbutton offers 2 normally open (NO) contacts and 0 Normally Closed (NC) contacts. It operates up to 300 V with rated currents of (AC-15) 2 A at 240 V and (DC-13) 0.3 A at 24 V (0.2 A at 125 V). This configuration supports common control circuits while maintaining safe isolation and performance in standard automation tasks.
Yes. The device features front protection ratings IP66, IP67, and IP69K, indicating excellent resistance to dust and water ingress in harsh conditions. Terminals are IP20 protected, and the enclosure supports robust operation in environments requiring high ingress protection, reducing maintenance frequency and extending service life.
The pushbutton carries CE and UKCA declarations, CB/UL compatibility, cURus, CCC, DNV GL, and EAC certifications, along with RoHS compliance. This broad certification set supports global deployment, regulatory approvals, and supplier diligence across multinational facilities, helping you meet internal and external compliance requirements.
The compact design reduces panel footprint and wiring complexity, cutting installation time and material costs. With 0.5 million mechanical cycles and only 5 W power loss, it offers high durability and energy efficiency, translating to lower maintenance costs, fewer panel reworks, and improved mean time between failures (MTBF) in high-cycle applications.
