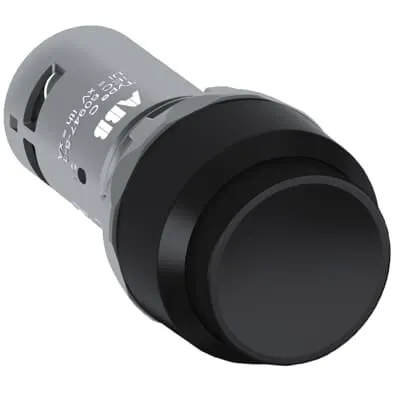

ABB 1SFA619103R1026 Pushbutton - IP66/IP67/IP69K Front
Part Number: 1SFA619103R1026
Quick Summary
Pushbutton CP4-10B-20 provides compact, maintained actuation for control panels and distribution boards. Engineers often struggle with space constraints, wiring complexity, and downtime from maintenance. With front protection up to IP69K and certifications including CE, UKCA, and RoHS, plus UL/CSA and CB attestations, the device supports global compliance. Packaged in ABB's compact range, it delivers installation efficiency, reduced panel depth, and lower lifecycle costs for industrial automation projects across locations.
Product Information
Extended Description
1SFA619103R1026 ABB: The CP4-10B-20 Pushbutton is: Compact - Pushbutton - Maintained - Extended - Black - Non-illuminated - Black Plastic - 2NO - 2 NO - 0 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500243985
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312822
E-Number (Norway)
4373473
E-Number (Sweden)
3705490
The CP4-10B-20 is a compact, non-illuminated pushbutton with two normally open (NO) contacts and no normally closed (NC) contacts, designed for space-conscious control panels. Business impact: reduces enclosure footprint and simplifies wiring thanks to a screw clamp terminal and clear wire termination guidelines, enabling faster panel build times. Application: ideal for distribution boards and machine panels that require reliable, high-density control points without illumination. The device supports flexible conductor options from 0.5 to 1.5 mm² and ferrules, improving field wiring reliability and field serviceability in harsh environments. The extended actuator and black bezels provide a robust, maintenance-friendly interface that withstands frequent actuation in industrial settings. Business impact: fewer callouts for mechanical wear and faster replacement cycles, lowering maintenance costs over the device life. Application: suitable for packaging lines, conveyors, and automated tooling where compact, durable control is essential.
Get a Quick Quote for a ABB 1SFA619103R1026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619103R1026?
Enquire Now
FAQs
The CP4-10B-20 uses screw clamp terminals with a tightness torque of 0.8 N·m and supports flexible conductors with ferrule from 0.5 to 1.5 mm², as well as solid conductors in the same range. Wire stripping length is specified at 6 mm. This configuration simplifies field wiring, reduces installation time, and improves reliability in compact control panels and distribution boards.
This pushbutton offers front protection rated IP66, IP67, and IP69K, ensuring dust and water ingress protection in demanding environments. It accepts ambient operating temperatures from -25 to +70 °C, with a high protection level suitable for production areas, outdoor enclosures, and wash-down zones, helping to minimize maintenance cycles and unplanned downtime.
The device is rated for a maximum operating voltage of 300 V and provides AC-15 currents up to 2 A at 240/220 V. DC-13 currents are 0.3 A at 24 V and 0.2 A at 125 V. Power loss is limited to 5 W, and mechanical durability is rated at 0.5 million cycles, giving predictable performance in control circuits and safety interlocks.
Mechanical durability is rated at 0.5 million cycles, reflecting a robust maintenance-free life under normal operation. The extended actuator and durable black plastic bezel are designed for frequent actuation in industrial settings. This translates to reduced replacement costs and improved reliability for automation tasks such as conveyors, tooling, and packaging equipment.
The product carries CE and UKCA declarations of conformity, RoHS compliance, and CB, UL/CSA, CQC, and EAC certificates, among others. It also complies with REACH and TSCA declarations and is suitable for B2B WEEE categories, ensuring a broad regulatory footprint for international installations and supplier compliance programs.
