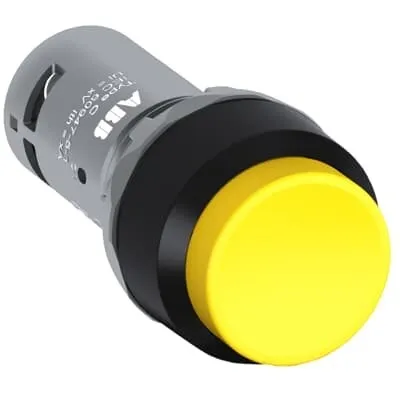

ABB 1SFA619103R1073 Pushbutton - Front IP69K Maintained
Part Number: 1SFA619103R1073
Quick Summary
ABB 1SFA619103R1073 Pushbutton provides compact, maintained actuation for control circuits in automated equipment. Many engineers face long installation times and wiring complexity when integrating large pilot devices. This device aligns with CE conformity and robust IP ratings (IP66/IP67/IP69K front), plus RoHS and REACH declarations, supporting safe, global deployment. As a compact, non-illuminated pushbutton with 1NO+1NC contacts, it minimizes panel space and simplifies wiring, helping maintenance teams reduce downtime. For manufacturers adopting ABB’s compact range, it offers faster installation, reliable operation in harsh environments, and straightforward compatibility with screw-terminal connections and varied conductor sizes, delivering cost efficiencies across procurement and commissioning.
Product Information
Extended Description
1SFA619103R1073 ABB: The CP4-10Y-11 Pushbutton is: Compact - Pushbutton - Maintained - Extended - Yellow - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Yellow
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500244166
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312840
E-Number (Norway)
4373482
E-Number (Sweden)
3705508
Feature: Compact, extended actuator pushbutton with 1NO+1NC contacts, non-illuminated, and 300 V rating. Business Impact: Saves panel space and simplifies wiring during panel build and refurbishment. Application: Ideal for control panels in automation lines where space is at a premium and visibility of status indicators isn’t required. Feature: Front protection rated IP66, IP67, and IP69K. Business Impact: Enhances dust and water ingress resistance in washdown and dusty environments, reducing maintenance cycles. Application: Suitable for food grade, beverage, and outdoor equipment where harsh cleaning processes occur. Feature: Screw Clamp connections and versatile conductor compatibility (0.5–1.5 mm²). Business Impact: Faster field terminations with reliable, vibration-tolerant connections, lowering commissioning time and rework. Application: Panel wiring in machines with mixed wire types and insulation. Feature: Tightening torque of 0.8 N·m and wire stripping length of 6 mm. Business Impact: Consistent, secure terminations that withstand operational vibrations, reducing fault rates. Application: Quick, repeatable installations across multiple production lines. Feature: Mechanical durability rated to 0.5 million actuations; RoHS/REACH/CE certifications. Business Impact: Long service life translates to lower maintenance costs and regulatory compliance across regions. Application: Applies to high-cycle safety interlocks and control stations in automated systems.
Get a Quick Quote for a ABB 1SFA619103R1073
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619103R1073?
Enquire Now
FAQs
The CP4-10Y-11 uses screw clamp terminals with a tightening torque of 0.8 N·m and a wire stripping length of 6 mm. It accepts flexible conductors with ferrule 0.5–1.5 mm² and solid 0.5–1.5 mm², ensuring reliable terminations in control cabinets and on machine frames. Minimum order quantity is 10 pieces, which supports batch installations.
The unit provides 1 normally open and 1 normally closed contact (1NO+1NC) with a rated voltage up to 300 V. For AC-15 operation, it supports up to 2 A at 240/220 V, and for DC-13 it supports 0.3 A at 24 V. The device also tolerates up to 6 kV rated impulse with a maximum power loss of 5 W.
Yes. The device features front Protection IP66, IP67, and IP69K, making it suitable for dusty and washdown environments. Its compact, black plastic bezel and non-illuminated yellow extended actuator are designed to withstand challenging conditions while delivering reliable actuation in automation panels and distribution boards.
The pushbutton carries CE and UKCA declarations, RoHS and REACH compliance, plus multiple third-party certificates (CB, CQC, cURus, CCC, DNV GL, EAC). This broad certification support helps ensure regulatory compliance for global deployments and reduces buyer risk during procurement and installation.
Choosing the compact CP4-10Y-11 reduces panel space, shortens installation time, and lowers wiring complexity with screw-terminal connections. Its 0.5 million mechanical cycles and IP69K front protection minimize maintenance and downtime in harsh environments, delivering lower total cost of ownership through faster commissioning, easier sourcing, and durable, regulator-ready performance.
