ABB CP4-10L-11 Pushbutton - 1NO+1NC, Compact, IP66/IP69K
Part Number: 1SFA619103R1074
Quick Summary
CP4-10L-11 Pushbutton by ABB is a compact maintained pushbutton designed for panel control and machine automation. It reduces installation time and wiring complexity by combining a small form factor with robust screw terminals, easing field wiring and commissioning. Certified for demanding environments with Front IP66/IP67/IP69K protection and CE/UKCA declarations, it offers rugged reliability across automotive, packaging, and process equipment. The 1NO+1NC configuration, blue extended actuator, and black bezel provide clear status signaling in safety circuits, while remaining compatible with ABB’s compact pilot device family. This combination translates into lower installation costs, easier maintenance, and faster time-to-value for panel builders and system integrators.
Product Information
Extended Description

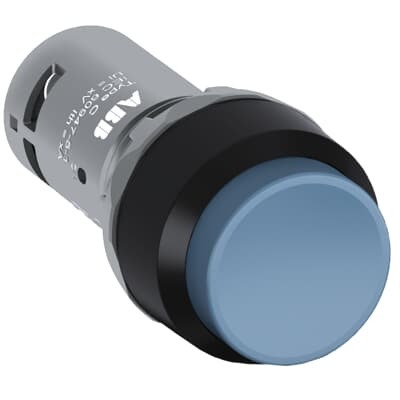

1SFA619103R1074 ABB: The CP4-10L-11 Pushbutton is: Compact - Pushbutton - Maintained - Extended - Blue - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500244173
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312841
E-Number (Norway)
4373483
E-Number (Sweden)
3705509
The CP4-10L-11 Pushbutton delivers a compact, maintained actuation with a 1NO+1NC contact configuration, reducing panel footprint and simplifying wiring for control circuits in automation environments. Business impact: space efficiency, simpler panel design, and lower component count enable faster commissioning and reduced wiring errors in factory automation applications. Application context: ideal for machine controls, safety interlocks, and local start/stop functions where reliability and quick maintenance matter. The device’s 0.8 N·m tightening torque and screw-terminal connection support repeatable, vibration-resistant installations, minimizing rework in high-duty environments. Long-term benefit: fewer field failures and lower maintenance costs on production lines employing pilot devices within ABB’s compact family.
