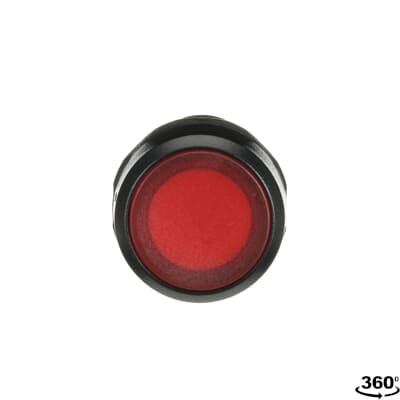

ABB 1SFA619103R1111 Pushbutton - IP69K Front Rating
Part Number: 1SFA619103R1111
Quick Summary
Pushbutton ABB CP4-11R-10 is a compact, illuminated pilot device used to start or stop machinery in control panels. Users often face prolonged installation times and wiring challenges when integrating multiple pilot devices into a single panel. This ABB unit delivers CE conformity, RoHS compliance, and multiple international certificates, simplifying procurement and regulatory qualification for global plants. The compact footprint, robust IP-rated front, and 24 V LED status indicator enable quick wiring and reliable visibility in cluttered control rooms. With screw clamp terminals and 1 NO contact, it fits standard panel architectures and reduces overall installation cost while improving maintenance efficiency in industrial automation applications.
Product Information
Extended Description
1SFA619103R1111 ABB: The CP4-11R-10 Pushbutton is: Compact - Pushbutton - Maintained - Extended - Red - Illuminated - Black Plastic - 1NO - Red - 1 NO - 0 NC - , 24 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.025 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Illuminated
Lamp Type
LED 24V AC/DC
Function
Maintained
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz | Supply Circuit 50 / 60 Hz
Rated Operational Voltage
24 V AC/DC | Maximum 300 V | Supply Circuit 24 V AC/DC
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.254 kg
Package Level 1 EAN
7320500381472
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312162
E-Number (Sweden)
3717257
Feature: Compact footprint and slim profile. Business Impact: Frees panel space and reduces wiring complexity, cutting installation time and enabling denser control layouts in manufacturing lines. Application: Ideal for space-constrained control cabinets and new installations in compact machines. Feature: Illuminated red status LED and extended actuator. Business Impact: Clear, at-a-glance operation indication even in challenging lighting conditions, minimizing operator error and downtime. Application: Pushbutton status signaling in demanding environments. Feature: 1 NO contact with no NC contacts and 24 V operation. Business Impact: Simplified control logic and safer fail-safe behavior for start/stop circuits; compatible with common 24 V control rails. Application: Start/stop circuits in conveyors, mixers, and packaging lines. Feature: Enclosure versatility and front protection. Business Impact: Type 1, Type 12, Type 13, Type 3R, Type 4 and 4X enclosures plus front IP66/IP67/IP69K protection. Application: Suitable for dusty, washdown, and harsh environments in food, chemical, and automotive sectors. Feature: Robust wiring and terminations. Business Impact: Screw clamp terminals with a wide conductor range (0.5–1.5 mm² or 2 x 0.5–1.5 mm²) and 0.8 N·m tightening torque reduce installation time and ensure secure connections. Application: Reliable field wiring for panel builders and OEMs. Feature: Compliance and lifecycle efficiency. Business Impact: RoHS, REACH, TSCA and WEEE compliance lower regulatory risk and simplify end‑of‑life planning for plants with global footprints. Application: Global deployments needing regulatory alignment and documented sustainability.
Get a Quick Quote for a ABB 1SFA619103R1111
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619103R1111?
Enquire Now
FAQs
This unit uses screw clamp terminals compatible with flexible and solid conductors (0.5–1.5 mm²) and requires a tightening torque of 0.8 N·m. It supports a compact footprint (0.03 m width/height, 0.055 m depth) and is designed for straightforward mounting with standard pilot device layouts in 24 V control circuits.
The device provides 1 NO contact with no NC contacts, operation at 24 V DC/AC, and a DC current rating of 0.3 A at 24 V (125 V up to 0.2 A). For AC operation, it handles up to 2 A at 240 V. Power loss is limited to 2.5 W, supporting energy-efficient, compact control schemes.
Yes. The front protection includes IP66, IP67, and IP69K ratings, with terminals rated IP20, and enclosure options Type 1/12/13/3R/4/4X, making it suitable for dusty, wet, and high-pressure washdown environments commonly found in manufacturing and packaging applications.
The device is RoHS and REACH compliant, with a broad certification package including CE and UKCA declarations, CB certification, cURus, CCC, DNV GL, and EAC where applicable. This supports regulatory compliance for global deployments and supplier qualification in multinational facilities.
The compact design reduces panel space and wiring, lowering assembly time and startup costs. Its robust construction and reliable LED indication decrease downtime due to misoperation, while widespread certifications simplify procurement and maintenance planning across sites, delivering a tangible reduction in total cost of ownership over the device lifecycle.
