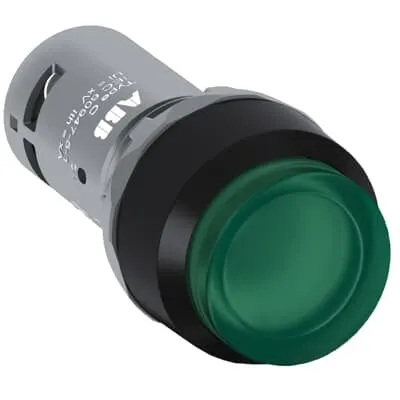

ABB 1SFA619103R1112 Pushbutton - 24V LED IP69K
Part Number: 1SFA619103R1112
Quick Summary
This pushbutton is a compact illuminated control device designed for machine control panels and distributed automation. Engineers often struggle with space constraints, installation speed, and reliable operation in harsh environments. This ABB unit carries CE, UKCA, and CB certifications and front protections up to IP69K, ensuring washdown readiness and regulatory compliance. Its 24 V LED signaling, 1NO/0NC configuration, and extended actuator simplify integration and reduce wiring effort. Designed for compact pilot devices, it delivers tangible business value through faster deployment, lower lifecycle costs, and safer operator interaction. With RoHS and REACH compliance, the device supports responsible sourcing and global procurement strategies.
Product Information
Extended Description
1SFA619103R1112 ABB: The CP4-11G-10 Pushbutton is: Compact - Pushbutton - Maintained - Extended - Green - Illuminated - Black Plastic - 1NO - Green - 1 NO - 0 NC - , 24 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.025 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Illuminated
Lamp Type
LED 24V AC/DC
Function
Maintained
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz | Supply Circuit 50 / 60 Hz
Rated Operational Voltage
24 V AC/DC | Maximum 300 V | Supply Circuit 24 V AC/DC
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.254 kg
Package Level 1 EAN
7320500381489
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312163
E-Number (Sweden)
3717258
Feature: The compact range design reduces enclosure footprint and simplifies wiring. Business impact: Lower installation time and material costs, with fewer mounting components and shorter harness runs. Application: Ideal for space-constrained machine controls and compact pilot devices in modern automation lines. Feature: LED illumination at 24V AC/DC provides clear, visible signaling. Business impact: Improves operator visibility and reduces misoperation in dim or challenging environments. Application: Start/stop stations, emergency control points, and panel indicators. Feature: Maintained operation and extended actuator ensure a defined control state. Business impact: Minimizes accidental actuations and guarantees deliberate operation, enhancing safety and process control. Application: Safety-critical stop circuits and manual control in continuous processes. Feature: 1 normally open contact (NO) with 0 normally closed (NC) supports straightforward control logic. Business impact: Reliable switching for common automation circuits with modest current draw. Application: Simple signaling, interlocks, and circuit control in automation equipment. Feature: Front protection IP66/IP67/IP69K and rugged enclosure resist dust and washdown. Business impact: Washdown readiness and reduced maintenance in harsh manufacturing environments. Application: Food & beverage, pharmaceutical, and heavy industry facilities. Feature: Screw clamp terminals with mixed conductor compatibility and UL/CSA ratings. Business impact: Easy, secure field wiring with ferrules or solid conductors, enabling faster commissioning. Application: Field installations across global control architectures.
Get a Quick Quote for a ABB 1SFA619103R1112
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619103R1112?
Enquire Now
FAQs
For installation, use screw clamp terminals rated for flexible or solid conductors (0.5 to 1.5 mm²). Tighten to 0.8 N·m and strip 6 mm of insulation. It supports both 24 V AC/DC operation and a compact footprint, making it ideal for space-constrained control panels and switchgear. Ensure front protection remains unobstructed to maintain IP66/67/69K ratings.
The 1NO/0NC configuration provides a simple yet flexible signaling scheme, enabling straightforward normally-open control paths with no closed-contact risk when released. This simplifies wiring, reduces both cost and potential fault points, and is well-suited for basic start/stop circuits and status signaling in compact automation stations.
The device carries CE, UKCA, and CB certifications, along with declarations of conformity for CE and UKCA. These certifications ensure regulatory compliance across Europe and the UK, facilitate global procurement, and support customer audits. Additional approvals such as RoHS/REACH declarations and EN/NEMA compatibility further reinforce safe, compliant use in diverse markets.
Yes. The front face offers IP66/IP67/IP69K protection, meaning it withstands dust ingress and high-pressure washdowns typical in food, beverage, and pharmaceutical environments. Combined with a robust black plastic bezel and extended green actuator, it maintains visibility and reliability even after repeated washdowns or harsh cleaning cycles.
The compact design reduces panel space and wiring complexity, cutting assembly time and field wiring costs. Its durable IP-rated front and maintained contacts lower maintenance and replacement frequency, delivering longer service life in demanding lines. When deployed at scale, these factors translate into lower total cost of ownership and faster time-to-market for new equipment.
