ABB 1SFA619103R1141 Pushbutton - Front IP66/IP67/IP69K
Part Number: 1SFA619103R1141
Quick Summary
Pushbutton control for start/stop signaling in industrial control panels. Engineers often battle bulky control fixtures and wiring complexity; this compact pushbutton reduces panel depth and simplifies installation. Critical certifications include CE, UKCA conformity for global safety, and RoHS compliance, with front protection rated IP66/IP67/IP69K for washdown and harsh environments. Designed for ABB's Compact C pilot devices family, it delivers reliable signaling with easy wiring and robust performance, helping OEMs and maintenance teams shorten commissioning time while improving overall system reliability and maintainability.
Product Information
Extended Description

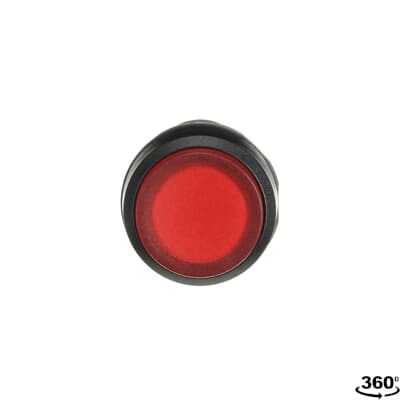

1SFA619103R1141 ABB: The CP4-11R-01 Pushbutton is: Compact - Pushbutton - Maintained - Extended - Red - Illuminated - Black Plastic - 1NC - Red - 0 NO - 1 NC - , 24 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.025 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Illuminated
Lamp Type
LED 24V AC/DC
Function
Maintained
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz | Supply Circuit 50 / 60 Hz
Rated Operational Voltage
24 V AC/DC | Maximum 300 V | Supply Circuit 24 V AC/DC
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.254 kg
Package Level 1 EAN
7320500381502
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312165
E-Number (Sweden)
3717260
Feature: Compact form factor with an extended actuator. Business Impact: Frees panel space and speeds installation, enabling quicker commissioning in tight control panels and distribution boards. Application: Ideal for machine control stations where space is at a premium.\n\nFeature: Illumination with LED 24V AC/DC. Business Impact: Clear, constant status indication even in low-visibility environments, reducing operator error and improving uptime. Application: Start/stop signaling in conveyors, packagers, and automated lines.\n\nFeature: Maintained function and red color. Business Impact: Positive latching action minimizes accidental resets in vibration-prone environments, enhancing safety and reliability. Application: Emergency stop-like signaling or pilot signaling in line start circuits.\n\nFeature: 1 NC contact, 0 NO. Business Impact: Simplified wiring and control logic with a single-pole configuration, streamlining panel schematics and reducing wiring costs. Application: Basic on/off control in compact automation panels.\n\nFeature: Front IP66/IP67/IP69K protection. Business Impact: Strong ingress protection for dusty or washdown environments, lowering maintenance frequency and replacement costs. Application: Food processing, packaging, and outdoor or wet environments.\n\nFeature: Screw clamp terminals and wide wiring options. Business Impact: Flexible, fast field wiring with secure connections and support for 0.5–1.5 mm² conductors, reducing install time and field errors. Application: On-site panel wiring and retrofits in existing installations.\n\nFeature: Compliance and safety certifications. Business Impact: Readiness for global markets with CE/UKCA, RoHS, and multiple third-party certificates, enabling faster time-to-market and regulatory assurance. Application: Deployment in multinational plants and OEM configurations across industries.
