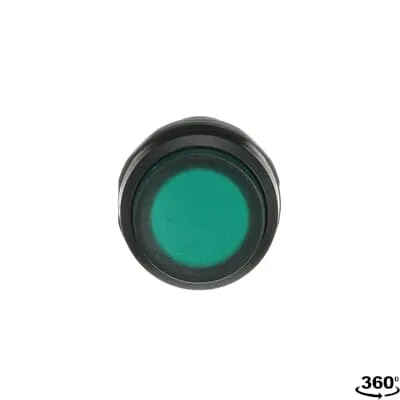

ABB 1SFA619103R1212 Pushbutton - Illuminated IP69K
Part Number: 1SFA619103R1212
Quick Summary
The ABB 1SFA619103R1212 Pushbutton is a compact, illuminated operator designed for control panels and machine front-ends. Engineers often wrestle with rugged components that fit tight geometries, provide clear signaling, and simplify wiring in crowded installations. This model carries CE certification, UL/CSA recognition, and strong front protection with IP66/IP67/IP69K ratings, ensuring safe operation in harsh environments. For panel builders and OEMs, the compact range reduces installation time and field wiring costs while delivering reliable signaling. The extended actuator and robust screw-terminal connections support quick replacements and straightforward maintenance, aligning with modern Industry 4.0 goals and helping minimize downtime on production lines.
Product Information
Extended Description
1SFA619103R1212 ABB: The CP4-12G-10 Pushbutton is: Compact - Pushbutton - Maintained - Extended - Green - Illuminated - Black Plastic - 1NO - Green - 1 NO - 0 NC - 110 ... 130 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.025 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Illuminated
Lamp Type
LED 110-130V AC/DC
Function
Maintained
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz | Supply Circuit 50 / 60 Hz
Rated Operational Voltage
110 ... 130 V AC/DC | Maximum 300 V | Supply Circuit 110 ... 130 V AC/DC
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.254 kg
Package Level 1 EAN
7320500381649
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312191
E-Number (Norway)
4372627
E-Number (Sweden)
3717274
Feature illuminate with green LED and extended actuator delivers immediate status indication while maintaining a low power draw, enabling faster operator decisions and reducing cycle times. Business Impact improved visibility and reduced misoperation translate to higher throughputs in packaging, conveyor, and processing lines; Application ideal for front-of-panel pilot devices where space is at a premium and signaling must be instantly recognizable. Feature screw clamp terminals support a wide range of conductor sizes (0.5–1.5 mm²) with ferrules, enabling fast, secure field wiring and reducing installation labor. Business Impact faster wiring, fewer faults, and easier maintenance; Application suitable for harsh environments where IP66/IP67/IP69K front protection guards against dust and water ingress. Feature 1NO/0NC contacts with 110–130 V AC/DC operation and 2 A AC-15 rating at 240 V ensures compatibility with common control circuits; Application fits start/stop and signaling within compact control panels. Feature compact weight (0.025 kg) and 0.8 N·m tightening torque streamline installation and reduce panel loading; Business Impact lowers mounting effort and ensures consistent performance; Application across small to mid-size control enclosures. Feature compliance and documentation include CE, RoHS, REACH, UL/CSA, CB, and EN classifications, giving assurance for global installations and reducing regulatory risk; Application supports global deployments and supplier audits.
Get a Quick Quote for a ABB 1SFA619103R1212
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619103R1212?
Enquire Now
FAQs
Yes. The product uses screw clamp terminals and supports flexible and solid conductors from 0.5 to 1.5 mm², including ferrule connections. Tightening torque remains 0.8 N·m to ensure a robust, vibration‑resistant connection suitable for panel mounting.
The device operates at 110–130 V AC/DC with 1NO/0NC contacts. Rated currents include DC‑13: 0.3 A at 24 V, 0.2 A at 125 V; AC‑15: 2 A at 240 V (and 220–240 V). Power loss is limited to 2.5 W, supporting energy efficiency in continuous signaling.
Yes. It provides front protection IP66/IP67/IP69K and terminals IP20, with an enclosure that meets EN/IEC ruggedization expectations. The component supports Type 1, 12, 13, 3R, 4, and 4X enclosures, making it suitable for dusty or wet environments and challenging washdown conditions.
The product line carries CE and UL/CSA recognition, along with RoHS and REACH declarations, plus CB, UKCA, and other regional certifications. This broad certification footprint simplifies global procurement, regulatory compliance, and cross-border deployments in diverse industries.
The compact, lightweight design reduces panel space, and screw terminals plus ferrule support speed installation. With 0.5 million mechanical durability and clear LED signaling, operators experience lower downtime, easier replacements, and longer service intervals, translating to lower total cost of ownership in automated lines.
