ABB 1SFA619103R1313 Pushbutton - Illuminated LED 230V
Part Number: 1SFA619103R1313
Quick Summary
ABB 1SFA619103R1313 Pushbutton provides reliable, illuminated control for industrial machines and control panels. Engineers often struggle with compact devices that deliver visibility, durability, and easy wiring in tight control cabinets. It carries front IP66/IP67/IP69K protection for harsh washdown environments, CE conformity, and a CB certificate for global compliance. Designed for ABB's compact pushbutton family, it reduces installation time with screw clamp terminals and 230 V LED lighting, lowering lifecycle cost and boosting panel clarity. In demanding environments, fast replacement and minimal maintenance are crucial, and the extended actuator combines with a robust black bezel to resist dust and moisture. This aligns with lean maintenance programs and helps you meet safety standards while enabling faster uptime.
Product Information
Extended Description

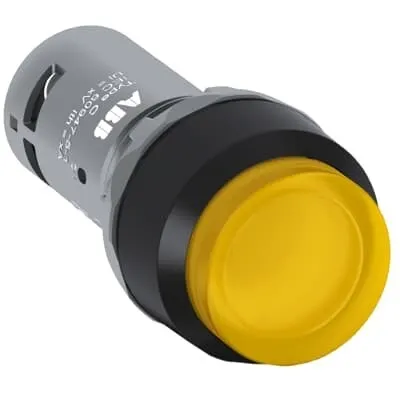

1SFA619103R1313 ABB: The CP4-13Y-10 Pushbutton is: Compact - Pushbutton - Maintained - Extended - Yellow - Illuminated - Black Plastic - 1NO - Yellow - 1 NO - 0 NC - 230 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.025 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Yellow
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Illuminated
Lamp Type
LED 220V AC/DC
Function
Maintained
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz | Supply Circuit 50 / 60 Hz
Rated Operational Voltage
230 V AC/DC | Maximum 300 V | Supply Circuit 230 V AC/DC
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(120 V) 1.5 A | (240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.254 kg
Package Level 1 EAN
7320500381816
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312200
E-Number (Norway)
4372652
E-Number (Sweden)
3717291
