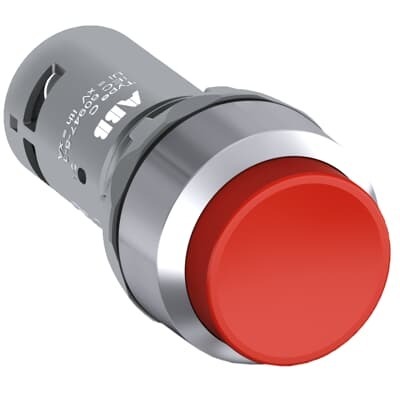

ABB 1SFA619103R3071 Pushbutton - IP66 Front, Maintained
Part Number: 1SFA619103R3071
Quick Summary
ABB 1SFA619103R3071 Pushbutton is a compact maintained control device designed for control panels in industrial automation. It addresses common user pain points such as limited panel space, lengthy installation times, and the need for reliable operation in dusty or wash-down environments. Certified for global use, it carries CE, UKCA, and CB credentials and meets stringent indoor and outdoor installation requirements with a front IP66/IP67/IP69K rating. The chrome metal bezel, red actuator, and 1NO+1NC configuration provide clear indication and flexible interlock or control circuits for machines and conveyors. Designed for easy wiring with screw terminals and standard tightening torque, it reduces panel drilling, minimizes wiring errors, and lowers total cost of ownership across machine builds.
Product Information
Extended Description
1SFA619103R3071 ABB: The CP4-30R-11 Pushbutton is: Compact - Pushbutton - Maintained - Extended - Red - Non-illuminated - Chrome Metal - 1NO+1NC - 1 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Extended
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Maintained
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.364 kg
Package Level 1 EAN
7320500244845
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature: Compact form factor and compact integration. Benefit: Frees panel space and reduces installation time, enabling denser control layouts and faster commissioning on automation lines. Application: New machine builds and retrofit projects where space is at a premium. Long-tail keywords: compact pushbutton, space-saving pilot devices, panel integration efficiency. Feature: Maintained actuation with 1NO+1NC contacts. Benefit: Ensures predictable control behavior and safe stop sequences, minimizing risk in critical start/stop circuits. Application: Conveyor control, machine tools, packaging lines. Long-tail keywords: maintained push button, 1NO+1NC configuration, reliable control signals. Feature: 300 V operation with 50/60 Hz compatibility and 6 kV impulse withstand. Benefit: Supports typical industrial AC/DC loads with robust surge protection, reducing nuisance trips. Application: General automation and panel-mounted controls. Long-tail keywords: rated operational voltage, impulse withstand, industrial electrical ratings. Feature: Screw clamp terminals, with 0.8 N·m tightening torque and 6 mm wire stripping length. Benefit: Quick, secure terminations that minimize wiring errors and field maintenance time. Application: Field wiring in control cabinets and distributed panels. Long-tail keywords: screw terminals, tightening torque, wire stripping length. Feature: Front IP66/IP67/IP69K rating and chrome bezel construction. Benefit: Excellent wash-down and dust protection, extended life in harsh environments, lower maintenance costs. Application: Food & beverage, packaging, automotive, and external controls. Long-tail keywords: front IP ratings, chrome bezel, harsh environment suitability. Feature: UL/CSA and global certifications integration. Benefit: Facilitates multi-region compliance, Simplifying procurement and reducing certification barriers for international projects. Application: Global manufacturing plants and OEMs. Long-tail keywords: CE UKCA CB certificate, compliance-ready pilot devices.
Get a Quick Quote for a ABB 1SFA619103R3071
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619103R3071?
Enquire Now
FAQs
This pushbutton uses screw clamp terminals and supports flexible and solid conductors in the ranges specified (1 x 0.5...1.5 mm² or 2 x 0.5...1.5 mm², with ferrules). Tightening torque is 0.8 N·m, and wire stripping length is 6 mm, enabling secure, vibration-resistant terminations for typical control-cabinet wiring.
The device carries CE and UKCA declarations, with CB Certificate and CQC listings among others. It’s designed to meet global regulatory expectations for pilot devices, and its performance is aligned with ETIM classifications for push buttons, ensuring compatibility in multi-region projects.
Yes. It features Front IP66, IP67, and IP69K protection ratings, plus a chrome bezel and extended temperature tolerance (-25 to +70 °C operation). This makes it suitable for wash-down areas, dusty environments, and outdoor installations while maintaining electrical isolation and reliability.
For AC-15, it supports up to 2 A at 220/240 V; for DC-13, it supports 0.3 A at 24 V and 0.2 A at 125 V. These ratings enable flexible control of standard industrial loads with safe current levels.
The compact form factor reduces panel footprint and wiring complexity, speeding installation and commissioning. With 0.5 million mechanical durability and robust IP ratings, there is less downtime, lower maintenance costs, and improved lifecycle value across OEM and end-user machines.
