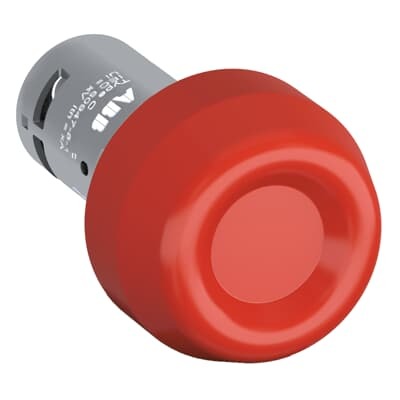

ABB 1SFA619105R1021 Push Button - IP66/IP67/IP69K
Part Number: 1SFA619105R1021
Quick Summary
ABB 1SFA619105R1021 push button is a heavy‑duty momentary control for industrial automation panels. engineers often face long installation times, wiring complexity, and downtime due to ingress in harsh environments. This device delivers front IP66/IP67/IP69K protection and CE/UKCA markings, with UL/CSA compatibility and RoHS/REACH compliance for global deployments. As a compact pilot device within ABB's compact range, it supports two NO contacts and robust 300 V ratings, delivering space efficiency, easier installation, and lower total cost of ownership for control panels and machine interfaces.
Product Information
Extended Description
1SFA619105R1021 ABB: The CP6-10R-20 Heavy Duty Pushbutton is: Compact - Heavy Duty Pushbutton - Momentery - Heavy Duty - Red - Non-illuminated - 2NO - 2 NO - 0 NC - 300 V
This Heavy Duty Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.037 m
Product Net Height
0.037 m
Product Net Depth / Length
0.061 m
Product Net Weight
0.031 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Heavy Duty
Bezel Material
n/a
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.312 kg
Package Level 1 EAN
7320500402566
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312984
E-Number (Sweden)
3705095
Feature → Heavy‑duty, non‑illuminated two‑NO pushbutton with 300 V rating and 0 NC contacts. Business Impact → Simplifies control wiring and reduces panel footprint while delivering reliable actuation in demanding environments. Application → Suitable for machine controls, pilot devices, and distributed control panels in harsh settings. Feature → Front protection rated IP66/IP67/IP69K with terminals IP20. Business Impact → Ensures dust, water, and high-pressure spray resistance, minimizing unplanned downtime. Application → Ideal for washdown areas and exposed machinery enclosures. Feature → Screw clamp terminals supporting flexible and solid conductors (0.5–1.5 mm²) and ferrules. Business Impact → Faster wiring, consistent terminations, and easier maintenance. Application → Field wiring in compact control panels. Feature → Rated operational current AC‑15 2 A at 240 V and DC‑13 0.3 A at 24 V. Business Impact → Safe, standards‑compliant control of motors and actuators with predictable behavior. Application → Use in control circuits and interlocking functions. Feature → Mechanical durability of 0.5 million cycles. Business Impact → Longer service life and reduced replacement costs. Application → High‑duty start/stop operations in industrial equipment. Feature → RoHS and REACH compliant with multiple global certifications (CE, UKCA, UL/CSA). Business Impact → Supports regulatory compliance and smoother global deployments. Application → Worldwide assemblies and international supply chains.
Get a Quick Quote for a ABB 1SFA619105R1021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619105R1021?
Enquire Now
FAQs
The CP6-10R-20 uses screw clamp terminals compatible with flexible or solid conductors in 0.5–1.5 mm² and ferrules. Connect the two NO contacts in the circuit path, ensuring a secure 0.8 N·m tightening torque. The device supports UL/CSA wiring configurations and accommodates both ferrule and insulated ferrule cables for fast, reliable terminations.
Operating temperature is −25 to +70 °C with storage from −40 to +85 °C. The front protection rating is IP66, IP67, and IP69K, while terminals are IP20. This combination supports reliable performance in dusty, wet, and high-pressure washdown environments typical of industrial plants.
Yes. The device carries UL/CSA compatibility alongside CE and UKCA declarations, and it complies with RoHS and REACH requirements for Pilot Devices. Certifications extend to CB, CQC, EAC, and related conformity marks, ensuring global applicability in production lines and service environments.
Absolutely. The CP6‑10R‑20 is designed as part of ABB’s compact range, delivering a space‑savvy pushbutton solution with robust performance. Its 2 NO contacts and compact footprint enable easy integration into small control panels and distributed pilot device layouts without compromising reliability or compliance.
Electrical ratings include AC‑15 at 240 V / 2 A and DC‑13 at 24 V / 0.3 A. The device provides 2 NO and 0 NC contacts with a maximum insulation voltage of 300 V and a rated impulse withstand of 6 kV. Wiring uses screw terminals with a 0.8 N·m torque, suitable for diverse control circuits and interlock applications.
