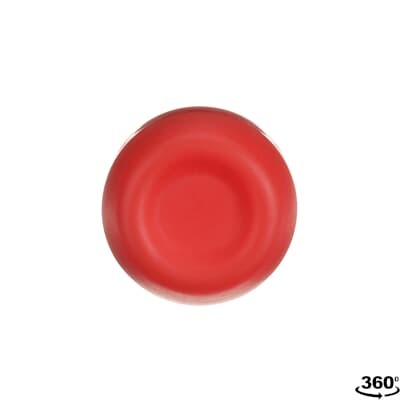

ABB CP6-10R-02 Heavy Duty Pushbutton - Front IP69K
Part Number: 1SFA619105R1051
Quick Summary
The ABB CP6-10R-02 Heavy Duty Pushbutton is a compact pilot device designed for rugged industrial control panels and machinery operation. It addresses the common challenge of downtime due to fragile components by delivering robust mechanical life and reliable operation in demanding environments. This pushbutton is protected to Front IP66, IP67 and IP69K with a 0.5 million mechanical durability rating, ensuring longevity in dust, water, and washdown conditions. It supports ABB’s Compact range philosophy, offering fast installation, minimal wiring complexity, and consistent performance across multiple panel configurations. For engineers and procurement teams, this translates to lower total cost of ownership and faster time-to-production with standard ABB parts and certified compliance.
Product Information
Extended Description
1SFA619105R1051 ABB: The CP6-10R-02 Heavy Duty Pushbutton is: Compact - Heavy Duty Pushbutton - Momentery - Heavy Duty - Red - Non-illuminated - 2NC - 0 NO - 2 NC - 300 V
This Heavy Duty Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.037 m
Product Net Height
0.037 m
Product Net Depth / Length
0.061 m
Product Net Weight
0.031 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Heavy Duty
Bezel Material
n/a
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
2
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.312 kg
Package Level 1 EAN
7320500402597
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312987
E-Number (Sweden)
3705098
Feature: Compact, heavy-duty design integrates into tight control panels; Business Impact: Reduces panel depth and installation time while delivering reliable operation; Application: Control stations on small conveyors and compact machines. The CP6-10R-02 is non-illuminated with a red actuator, making it ideal for status signaling in low-light environments without power draw. Feature: Two NC auxiliary contacts with no NO contacts; Business Impact: Simplifies interlock and stop circuit configurations, improving safety interlocks and reducing wiring complexity; Application: Motor control and safety circuits in packaging lines. Feature: 300 V rated insulation and 6 kV impulse withstand; Business Impact: Meets standard electrical isolation requirements and improves resilience against surges; Application: Panel boards in industrial environments with variable supply and transients. Feature: Screw clamp terminals with 0.8 N·m tightening torque and 6 mm wire stripping length; Business Impact: Ensures secure, vibration-resistant connections and repeatable installation quality; Application: Field wiring in harsh environments with vibration. Feature: Front protection IP66, IP67, IP69K; Enclosure Type with Type 1, 12, 13, 3R, 4, 4X suitability; Business Impact: Enables washdown and dusty environments without compromising control reliability; Application: Food & beverage, metalworking, and outdoor machinery. Feature: Rated currents AC-15 and DC-13 across multiple voltages; Business Impact: Allows flexible use across control circuits and safe operation at common industrial voltages; Application: Control relays, contactors, and pushbutton interlocks. Feature: Wide ambient temperature range -25 to +70 °C; Business Impact: Maintains performance in hot workshops and cold facilities, reducing failure rates; Application: Automotive assembly lines and machinery in unconditioned spaces. Feature: ABB Compact range advantage; Business Impact: Streamlines procurement with a single family of devices, reducing training and stocking variety; Application: New-builds and retrofits across factory floors. Feature: Compliance and certification mix including CE, UL/CSA, CB, RoHS/REACH; Business Impact: Accelerates regulatory approvals and market readiness; Application: Panel assemblies targeting global markets. Feature: Mechanical durability of 0.5 million cycles; Business Impact: Minimizes maintenance cycles and downtime, improving OEE in continuous operation lines; Application: Presses and continuous-process equipment.
