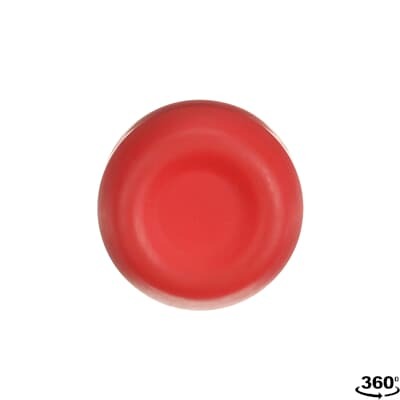

ABB CP6-10R-11 Pushbutton - Front IP66/IP67/IP69K
Part Number: 1SFA619105R1071
Quick Summary
The ABB CP6-10R-11 Pushbutton is a compact, heavy-duty momentary control device for demanding industrial applications. Engineers often struggle with limited panel space, wiring complexity, and maintenance downtime, and this unit minimizes footprint while simplifying installation. It carries CE and UKCA markings, plus CB and EAC certifications, reflecting global safety and quality compliance, while its rugged front protection safeguards against dust and water in harsh environments. With 1NO+1NC contacts, non-illuminated red actuator, and a 300 V rating, it delivers reliable control in compact pilot-device form. By standardizing on this ABB solution, you reduce wiring mistakes and stock variety, enabling faster builds and lower total cost of ownership.
Product Information
Extended Description
1SFA619105R1071 ABB: The CP6-10R-11 Heavy Duty Pushbutton is: Compact - Heavy Duty Pushbutton - Momentery - Heavy Duty - Red - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 300 V
This Heavy Duty Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.037 m
Product Net Height
0.037 m
Product Net Depth / Length
0.061 m
Product Net Weight
0.031 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Heavy Duty
Bezel Material
n/a
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.312 kg
Package Level 1 EAN
7320500402627
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312990
E-Number (Sweden)
3705101
Feature → 1NO+1NC contact arrangement; Business Impact → Flexible control path and simplified wiring; Application → Start/stop control on conveyors, presses, and packaging lines. Feature → 300 V rated operation with AC-15 2 A; Business Impact → Supports common industrial controls without overdesign; Application → Motor-control and logic circuits up to 240 V AC. Feature → Screw Clamp terminals with 0.8 N·m tightening torque and 6 mm wire stripping; Business Impact → Secure, vibration-resistant field wiring; Application → Panel installations and field wiring in harsh environments. Feature → Front protection IP66/IP67/IP69K and terminals IP20; Business Impact → Wash-down friendly and dust-tight performance; Application → Food and beverage lines, chemical plants, and outdoor installations. Feature → Mechanical durability of 0.5 million cycles; Business Impact → Longer service life and reduced maintenance; Application → High-use control points such as production lines and presses. Feature → Compact dimensions (0.037 m W, 0.037 m H, 0.061 m D); Business Impact → Space-saving integration and easier panel density; Application → Small control stations and distributed control panels. Feature → Minimum Order Quantity of 10 pieces; Business Impact → Predictable procurement and scalable deployment; Application → Batch production lines and multi-unit installations.
Get a Quick Quote for a ABB 1SFA619105R1071
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619105R1071?
Enquire Now
FAQs
Install using the screw clamp terminals with a tightening torque of 0.8 N·m. Prepare 6 mm wire strips and use ferrule-supported conductors as specified. The unit supports flexible and solid conductors within 0.5–1.5 mm² and is designed for panel-mount with a compact footprint, enabling quick field wiring and reliable connections in vibration-prone environments.
Electrical ratings include 300 V rated operation with AC-15 at up to 2 A and DC-13 up to 0.3 A at 24 V, or 0.2 A at 125 V. It supports 50/60 Hz operation, 6 kV impulse withstand, and a power loss of up to 5 W. The device offers 0.5 million mechanical cycles, ensuring durability in demanding applications.
Yes. The front is protected to IP66, IP67, and IP69K, with terminals rated IP20. This makes it suitable for wash-down areas, dusty environments, and outdoor or harsh factory settings, providing dependable performance in challenging conditions.
The product carries CE and UKCA declarations, CB certificate, and EAC, with additional RoHS and REACH conformity. These certifications indicate compliance with regional safety, environmental, and performance standards, reducing procurement risk and simplifying regulatory acceptance across global projects.
The device combines 0.5 million mechanical cycles with a compact footprint, reducing maintenance frequency and panel space. Its robust, vibration-resistant screw terminals minimize field wiring faults, lowering downtime and overall lifecycle costs on high-use lines such as conveyors and presses. The 10-piece MOQ aids predictable budgeting and scalable deployment.
