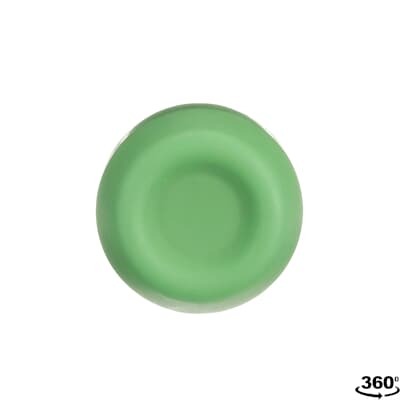

ABB 1SFA619105R1072 Pushbutton - Front IP69K Protection
Part Number: 1SFA619105R1072
Quick Summary
The 1SFA619105R1072 pushbutton provides compact, heavy-duty control for industrial machines and control panels. Engineering teams often face installation downtime and limited panel space; this unit minimizes both with a small footprint and straightforward screw clamp wiring. It carries CE conformity and UKCA declarations, plus robust front protection IP66/IP67/IP69K, ensuring safe operation in dusty, wet, and wash-down environments. As part of ABB's Pilot Devices portfolio, the 1NO+1NC configuration supports flexible control schemes while maintaining reliability in demanding cycles. For industrial automation projects, this pushbutton delivers durable performance, reduced maintenance, and a lower total cost of ownership across mission-critical applications.
Product Information
Extended Description
1SFA619105R1072 ABB: The CP6-10G-11 Heavy Duty Pushbutton is: Compact - Heavy Duty Pushbutton - Momentery - Heavy Duty - Green - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 300 V
This Heavy Duty Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.037 m
Product Net Height
0.037 m
Product Net Depth / Length
0.061 m
Product Net Weight
0.031 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Heavy Duty
Bezel Material
n/a
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.312 kg
Package Level 1 EAN
7320500402634
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312991
E-Number (Sweden)
3705100
Feature: Compact, heavy-duty design for space-constrained panels → Business Impact: Faster installation, reduced panel depth, and improved reliability in crowded switchgear installations → Application: Machine control panels in packaging lines and material handling. Feature: Electrical ratings including 300 V insulation and AC-15/ DC-13 currents → Business Impact: Safe operation within approved load ranges, fewer overcurrent incidents, and compliance with standard control circuits → Application: Start/stop and interlocking circuits in conveyors and processing lines. Feature: 1NO+1NC contacts with non-illuminated green actuator → Business Impact: Flexible logic for control sequences, reduced wiring complexity, and predictable fail-safe behavior → Application: Start/stop logic in motors and process equipment. Feature: Front IP66/IP67/IP69K protection and IP20 terminal protection → Business Impact: Exceptional dust and washdown resistance, lower maintenance in harsh environments → Application: Food processing, water treatment, and outdoor installations. Feature: Screw clamp terminals, 0.8 N·m torque, 6 mm wire stripping → Business Impact: Quick, repeatable field wiring with low risk of loose connections → Application: Rapid panel wiring during commissioning. Feature: Meets RoHS, REACH, TSCA and multiple certifications → Business Impact: Regulatory alignment and easier supplier audits, reducing compliance risk → Application: Global deployment across facilities with strict regulatory requirements.
Get a Quick Quote for a ABB 1SFA619105R1072
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619105R1072?
Enquire Now
FAQs
The pushbutton uses screw clamp terminals with a tightening torque of 0.8 N·m and supports flexible and solid conductors (6 mm wire stripping). Its compact footprint simplifies panel layouts, reduces wiring complexity, and speeds commissioning in control panels and starter assemblies.
Key specs include 300 V rated insulation voltage, AC-15 up to 2 A at 240 V, DC-13 up to 0.3 A at 24 V (and 0.2 A at 125 V), and a maximum power loss of 5 W. It provides 1NO+1NC contacts and a mechanical durability of 0.5 million cycles, suitable for demanding industrial sequences.
Yes. It features front IP69K protection, with IP66/IP67 variants available, ensuring robust resistance to dust, water jets, and high-pressure washdowns. Terminal area is IP20 protected, and the overall construction supports reliable operation in harsh environments common to food processing, water treatment, and outdoor installations.
The device carries CE and UKCA declarations for conformity, and is supported by CB, cURus, EAC, and RoHS/REACH declarations. This broad certification set helps with regulatory compliance and global deployments across multiple markets.
With a life expectancy up to 0.5 million cycles and a simple wiring scheme, maintenance is minimized and downtime is reduced during upgrades or replacements. Its compact footprint and reliable contacts lower installation costs, while its robust IP ratings extend service life in challenging environments, contributing to a favorable total cost of ownership.
