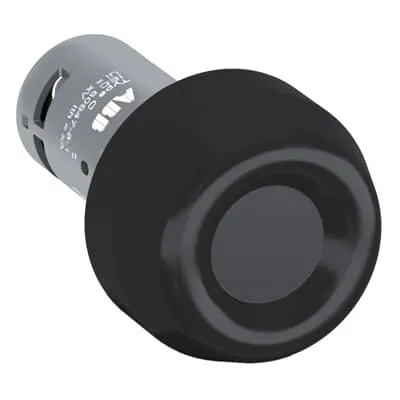

ABB 1SFA619105R1076 Heavy Duty Pushbutton - IP69K
Part Number: 1SFA619105R1076
Quick Summary
ABB CP6-10B-11 Heavy Duty Pushbutton provides rugged control for demanding industrial environments, enabling reliable start/stop operations in harsh machinery. Too often, operators replace failed controls after moisture, dust, or vibration breach seals, causing downtime and wasted maintenance. This compact, heavy-duty device carries front protection IP66/IP67/IP69K (plus IP20 terminals) and adheres to CE, UL/CSA, CB declarations, helping you stay compliant. With a 1NO+1NC contact set, 300 V rating, and screw-terminal wiring, it trims installation time and supports scalable control panels, while delivering long-term reliability. Its durable 0.5 million mechanical cycles specification offers confidence for high-demand lines.
Product Information
Extended Description
1SFA619105R1076 ABB: The CP6-10B-11 Heavy Duty Pushbutton is: Compact - Heavy Duty Pushbutton - Momentery - Heavy Duty - Black - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 300 V
This Heavy Duty Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.037 m
Product Net Height
0.037 m
Product Net Depth / Length
0.061 m
Product Net Weight
0.031 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Heavy Duty
Bezel Material
n/a
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.312 kg
Package Level 1 EAN
7320500402641
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312992
E-Number (Sweden)
3705102
Feature: Compact, heavy-duty design reduces panel footprint and simplifies wiring. Benefit: Saves space on control panels and accelerates installation, delivering a faster time-to-value for new lines or upgrades. Application: Distribution boards and machine control panels benefit from smaller enclosures without compromising protection. Feature: 1NO+1NC contact configuration. Benefit: Flexible logic for start/stop circuits and safe interlocking, improving process safety and fault handling. Application: Conveyor lines, packaging equipment, and automated handling systems. Feature: Non-illuminated bezel with standard screw clamp terminals. Benefit: Clean integration into panels with external lighting schemes and straightforward field wiring with guaranteed secure connections. Application: Harsh environments where external indicators are preferred. Feature: Wide electrical ratings up to 300 V and AC-15 2 A. Benefit: Supports common automation voltages without additional components, lowering BOMs and commissioning time. Application: General purpose control of small-to-medium loads. Feature: Flexible wiring options and termination. Benefit: Supports ferrules and both flexible and solid conductors (0.5–1.5 mm2), enabling reliable field termination and faster serviceability. Application: Panel upgrades and retrofit projects. Feature: Robust IP66/IP67/IP69K front protection. Benefit: Excellent dust and water ingress resistance, reducing maintenance and extending service life in dirty or wet environments. Application: Food & beverage, automotive, and outdoor installations. Feature: 0.5 million mechanical durability. Benefit: Long life in high-cycle applications lowers replacement costs and downtime. Application: Continuous operation lines and high-use start/stop controls. Feature: Comprehensive certifications (CE, UL/CSA, CB, UKCA, EAC, CQC, DNV GL, EAC). Benefit: Demonstrates compliance across international markets, easing procurement and regulatory approvals. Application: Global manufacturing operations and multi-site integrations.
Get a Quick Quote for a ABB 1SFA619105R1076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619105R1076?
Enquire Now
FAQs
This pushbutton uses a Screw Clamp terminal type with flexibles and Ferrule-compatible conductors (0.5–1.5 mm2). Tightening torque is 0.8 N·m, and wire stripping length is 6 mm. It supports both flexible and solid conductors, enabling quick field wiring and reliable connections in compact control panels.
Key specs include 1NO+1NC contacts, rated voltage up to 300 V, AC-15 rating of 2 A at 240 V, and DC-13 ratings at lower voltages. The device offers non-illuminated operation, a front IP66/IP67/IP69K rating, and a life expectancy of about 0.5 million mechanical cycles, which supports demanding process-control scenarios.
Yes. It carries CE and UKCA declarations, UL/CSA, CB certificates, and other certifications such as EAC and DNV GL. The product also aligns with RoHS, REACH, and TSCA considerations, helping you meet international electrical and safety standards across manufacturing sites.
With a life expectancy of 0.5 million cycles and IP69K front protection, downtime is minimized due to fewer replacements and easier washing-down environments. The compact footprint reduces panel space, while screw-terminals and robust connectors speed up commissioning, yielding lower total cost of ownership over the device’s lifespan.
Ideal for rugged automation like conveyors, packaging lines, and distribution boards where space is a premium, and harsh conditions are common. Its combination of IEC-rated performance, non-illumination, and 1NO+1NC contacts makes it a versatile choice for start/stop and control-signal tasks in industrial environments.
