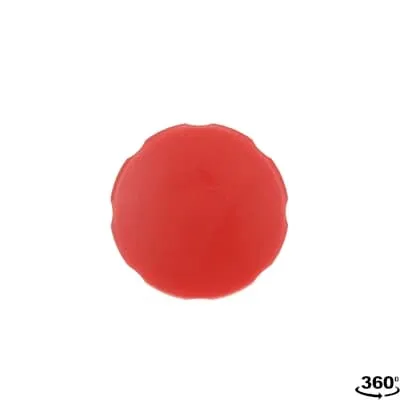

ABB 1SFA619126R1071 Pushbutton - IP69K Front IP66
Part Number: 1SFA619126R1071
Quick Summary
ABB 1SFA619126R1071 Pushbutton is a compact mushroom pushbutton for control panels and machine start/stop operations. Engineers often struggle with crowded panels, wiring complexity, and sealing in harsh environments, which can increase install time and downtime. This device ships with CE and UKCA declarations, plus CB and cURus certifications, and front protection rated IP69K/IP66/IP67 to resist dust and water ingress. By combining a robust form factor with a 1NO+1NC configuration and non-illuminated red actuator, it delivers reliability in demanding automation tasks while supporting cost-effective panel design and easier maintenance. In short, it provides a compact, compliant solution for modern industrial control architecture, aligning with your pilot devices and compact pushbuttons strategy.
Product Information
Extended Description
1SFA619126R1071 ABB: The CPM3-10R-11 Mushroom Pushbutton is: Compact - Mushroom Pushbutton - Momentary - Mushroom - Red - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Mushroom Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
ce507f4a-6031-44fe-9e8e-974cc151b608 Sweden (SE)
Simplified SCIP
66cb8327-cb41-4152-9707-58cc6029aef5 Germany (DE) | 4d12061b-5bee-4eda-8c1d-d66ca2814adc Belgium (BE) | 3cdbef9e-d02b-482d-8732-ee8f8c00345c Spain (ES) | be444883-0b4a-4cf5-84ee-b2647fe43306 Hungary (HU) | 90c53984-8bf0-4c0a-9b58-5fb6f176ff3e France (FR) | b298a45c-61ca-43b8-9817-7665b1d67867 Germany (DE) | 4d290196-ea5c-41e9-aeff-d4410eb8a6fd Poland (PL) | ce728cea-c40c-4ddd-b61f-d05f9d3bfb2d France (FR) | 3e717cbd-2209-4a60-87fe-89960d92b091 Germany (DE) | b7150d68-adda-4dfd-8302-dbe169bcbc46 Croatia (HR) | 2e443a6d-d78c-4aa0-bf68-d1f0c2db46dc Poland (PL) | 3e3e1281-6931-45a8-9be5-aa86503b9d1d Estonia (EE) | 204c3df8-ac85-469f-8561-274a850dc179 Netherlands (NL) | c5e114ca-2a9c-42a3-b978-3ba42574caa5 Czech Republic (CZ) | 1e13222d-1e5f-449e-b13d-30d4b7e57840 Sweden (SE) | 91fd353f-1e21-4b5c-ae2a-40d6ac671179 Bulgaria (BG) | 2d9865db-f7fa-41da-b1da-15bd129e9fbd Hungary (HU) | e0f11999-4ad2-4f1d-ba88-8a5983505d34 Portugal (PT) | 2f4520d1-691f-47de-ad9c-559ee5256ddc Greece (GR) | 0ff76b30-cd07-4e8e-be3a-d1da1f067573 Germany (DE) | 0d1045a0-c064-4481-8ea7-e284d1276afc Denmark (DK) | 7d6aeb8e-82f3-403c-bf50-9da19d35b210 Belgium (BE) | 6a7486a9-d8d2-429c-b009-6174941339cd Germany (DE) | 2fcd74fd-1324-4db0-be81-d9bef41e1363 Italy (IT) | 65fd6da8-0f20-4aa5-b733-a9842c8c7dc1 Poland (PL) | a1a6f091-dcd2-4fb5-9263-4f5d203db305 Norway (NO) | 39e25966-b59e-48cb-8925-e052d2ce06c0 Finland (FI)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.1 m
Package Level 1 Depth / Length
0.1 m
Package Level 1 Height
0.03 m
Package Level 1 Gross Weight
0.038 kg
Package Level 1 EAN
7320500375891
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Norway)
4372785
E-Number (Sweden)
3705006
Feature → Business Impact → Application: The compact mushroom pushbutton with a 1NO+1NC configuration minimizes panel footprint and wiring complexity, enabling faster panel wiring and reduced enclosure space for start/stop controls used in conveyor lines and packaging machinery. Application: control panels in bottling plants or automated assembly lines where space is at a premium. Feature → Business Impact → Application: Screw clamp terminals with torque specification of 0.8 N·m ensure secure terminations and repeatable performance, reducing maintenance calls and intermittent faults in high-vibration environments. Application: robotic cells and material handling systems requiring dependable wiring over time. Feature → Business Impact → Application: Front protection ratings IP66, IP67 and IP69K protect against dust and high-pressure washdowns, extending service intervals and lowering downtime in food & beverage and washdown environments. Application: washdown-ready machinery in processing lines. Feature → Business Impact → Application: Rated insulation voltage 300 V and currents up to 2 A AC-15 or 0.3 A DC-13 at low voltages provide versatile usage across control circuits, lowering the need for multiple devices. Application: general-purpose control stations and safety interlocks. Feature → Business Impact → Application: Compact pushbutton made for panel mounting with Type 1, Type 12, Type 13, Type 3R, Type 4 and Type 4X enclosures supports easy system integration and scalable protection levels. Application: brownfield upgrades and OEM panel design. Feature → Business Impact → Application: Non-illuminated red actuator improves visibility for emergency or stop functions in bright or outdoor settings, reducing operator error. Application: safety-critical control points in automated lines.
Get a Quick Quote for a ABB 1SFA619126R1071
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619126R1071?
Enquire Now
FAQs
Use the screw clamp terminals rated for Flexible with Ferrule 1 x 0.5...1.5 mm² or 2 x 0.5...1.5 mm², or Solid 1 x 0.5...1.5 mm². Tighten to 0.8 N·m using a standard screwdriver, strip 6 mm of insulation, and ensure correct 1NO+1NC wiring for reliable start/stop control. The front IP66/IP67/IP69K protection helps maintain reliability in washdown environments.
Rated operational voltage is up to 300 V, with AC-15 currents up to 2 A at 220/240 V and DC-13 currents up to 0.3 A at 24 V or 0.2 A at 125 V. Power loss is limited to 5 W. The device also features a 6 kV rated impulse withstand and supports 50/60 Hz operation, suitable for general control circuits.
Yes. The front protection class includes IP69K, IP67, and IP66, with terminals rated IP20, enabling reliable operation in high-pressure washdown and dusty environments typical of food processing, packaging, and other rugged industrial settings.
The device carries CE and UKCA declarations for Europe and the UK, plus CB and cURus certificates. RoHS and REACH declarations are also provided, ensuring compliance across many global supply chains and helping avoid project delays due to regulatory reviews.
Its compact form, screw-terminal wiring, and robust IP-rated design reduce installation time and field failures. The 1NO+1NC configuration supports flexible control logic, while the durable construction lowers spare-part costs and maintenance calls, delivering faster project realization and lower lifecycle costs for automation projects.
