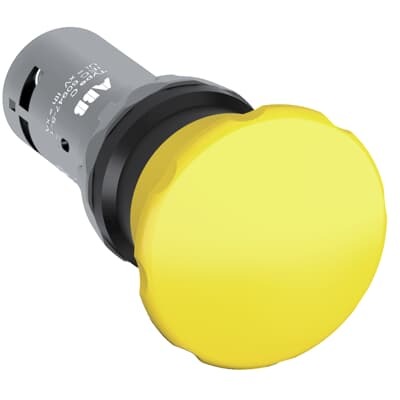

ABB CPM3-10Y-11 Pushbutton - Front IP66
Part Number: 1SFA619126R1073
Quick Summary
The ABB CPM3-10Y-11 Pushbutton delivers compact momentary control for pilot wiring on machine panels. Designed to shrink installation time and simplify maintenance, it helps address crowded control enclosures and tangled wiring. It carries CE and UKCA declarations and delivers robust front IP66 protection with RoHS and REACH compliance for harsh environments. For OEMs and integrators, this compact pushbutton provides a reliable, space-saving solution with a straightforward wiring footprint and predictable long-term performance. With 1NO+1NC contacts and a 300 V rating, it supports common control circuits while operating from -25 to +70 °C.
Product Information
Extended Description
1SFA619126R1073 ABB: The CPM3-10Y-11 Mushroom Pushbutton is: Compact - Mushroom Pushbutton - Momentary - Mushroom - Yellow - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Mushroom Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Yellow
Actuator Type
Mushroom
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
e35726a5-1a5e-42c6-b3c6-2a401d22beca Sweden (SE)
Simplified SCIP
eb0163d3-6fe0-4c41-aa5b-604ed23889f3 Germany (DE) | bda8ecaa-3b38-42dd-a047-fb4ba92a0802 Norway (NO) | 540b9ebb-0b1e-4f64-8963-db94697b56f9 Belgium (BE) | ab5f6039-266e-4eed-a265-228e50ae5cf2 Spain (ES) | 4b3a9589-9ec4-484d-834b-add96b40edc0 Hungary (HU) | c2916be1-641f-45f3-8581-5ad6ab84b22d Germany (DE) | 81c5541f-1dd9-4de1-8080-3e1f4e1836e4 France (FR) | 05f055bb-d596-4c6f-94ed-b92d1544a587 Germany (DE) | e7d7fb18-31ca-44bb-8add-13ae5c02d828 Poland (PL) | b970f8e3-cf0c-49a0-b3e8-953008489671 France (FR) | c6ddbf19-e921-4fa8-8931-215d1b96300c Croatia (HR) | 56d5e023-6f34-4f2c-aaf9-0a1ced682e24 Hungary (HU) | ab9cb1f4-fc2c-47a9-8604-c6cc48a79166 Greece (GR) | 6fc3e303-39d1-49f1-8276-b47bfe33b9e8 Portugal (PT) | 1f035e95-693b-4323-a3e1-81d2ea91ebcf Bulgaria (BG) | 51f201be-6047-4c87-b38f-5149dce5a861 Sweden (SE) | 3cef1d29-27b6-4a9a-9e40-9f3814afa937 Netherlands (NL) | 4c34ba6a-402b-4614-a596-514e4f988ab2 Poland (PL) | 14211c31-206e-4ff8-9aec-90dfc263c86e Czech Republic (CZ) | 605f4e60-d1c6-4259-8f67-bad6eed80c49 Estonia (EE) | 397475da-ff76-4d83-96c0-2bff343dd998 Germany (DE) | 9ac97e9b-667b-48ec-99ab-7d42c6b768dc Belgium (BE) | 0eca055e-6d0e-4f21-a7eb-2fd2d2accb24 Denmark (DK) | 37baaaff-affd-4410-aa6f-41ea2a401281 Germany (DE) | 3531cc6e-7773-4762-8fa3-1741306774b0 Italy (IT) | 36c5abf4-882b-45d2-8995-b009bcc413aa Finland (FI) | 20db2b64-676f-4319-91dc-83774cba31de Poland (PL)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.1 m
Package Level 1 Depth / Length
0.1 m
Package Level 1 Height
0.03 m
Package Level 1 Gross Weight
0.036 kg
Package Level 1 EAN
7320500376416
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Norway)
4372787
E-Number (Sweden)
3705009
The device’s compact footprint frees panel space and reduces installation time, supporting faster line changes and easier diagnostics in tight control cabinets. Its 0.04 m width, 0.04 m height and 0.073 m depth, plus a weight of 0.036 kg, translate into a lighter assembly and lower mounting complexity, which lowers overall installation costs. The 1NO+1NC configuration enables straightforward start/stop logic in a single pilot device, while the 300 V rating and AC-15 2 A / DC-13 0.3 A currents align with common control circuits, lowering wiring complexity and improving reliability. Screw clamp terminals and a tightening torque of 0.8 N·m provide secure, vibration-resistant connections, reducing maintenance interrupts in demanding environments. The mushroom actuator, yellow color, and black bezel support quick identification and ergonomic operation, especially in high-throughput processes.
Get a Quick Quote for a ABB 1SFA619126R1073
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619126R1073?
Enquire Now
FAQs
To install the CPM3-10Y-11, mount the unit in the panel opening and connect wires to the screw clamp terminals. Use conductors sized 0.5–1.5 mm², ferrules recommended if possible, and tighten to 0.8 N·m. The 1NO+1NC configuration supports simple start/stop logic, and the device fits compact panel footprints for minimal enclosure intrusion.
The pushbutton provides 1NO+1NC contacts with a maximum operational voltage of 300 V. It supports AC-15 up to 2 A at 240 V and DC-13 up to 0.3 A at 24 V (0.2 A at 125 V). Power loss is limited to 5 W, and wiring uses screw clamp terminals for reliable field connections.
Yes. The CPM3-10Y-11 offers front protection rated IP66, with IP67 and IP69K ratings available for enhanced washdown and dusty environments. It also features terminals with IP20 protection, enabling safe deployment in mixed environments. Operating temperature spans -25 to +70 °C to support harsh factory conditions.
The device carries CE and UKCA declarations, along with RoHS and REACH compliance. It is designed to meet general industrial standards and is supported by a CE declaration of conformity, making it suitable for European and other compliant installations.
The compact footprint reduces panel real estate and wiring complexity, cutting installation time and spare-part usage. With robust IP-rated protection and screw-terminal reliability, maintenance intervals are extended and downstream downtime decreases. These factors combine to lower total cost of ownership while delivering predictable performance in high-volume manufacturing lines.
