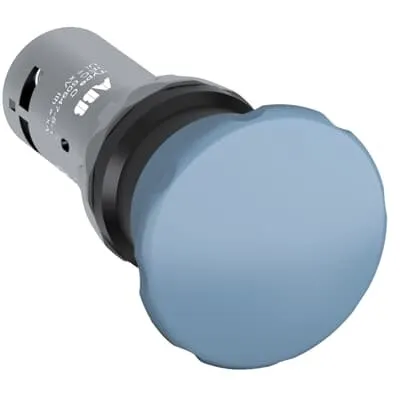

ABB 1SFA619126R1074 Mushroom Pushbutton - IP66 Front
Part Number: 1SFA619126R1074
Quick Summary
ABB 1SFA619126R1074 Mushroom Pushbutton delivers compact, momentary control for industrial panels and equipment. Installing pushbuttons can be time-consuming due to wiring complexity and space constraints. This device supports 1NO+1NC contacts and a compact footprint to simplify panel layouts, while its robust 300 V rating and non-illuminated blue actuator reduce misoperation in bright environments. The equipment is built for challenging conditions, with front protection rated IP66, IP67, and IP69K and ABB's trusted pilot-device certifications including CE and UL/CSA. For procurement and maintenance teams, standardized ABB components streamline sourcing, spares, and lifecycle costs, boosting uptime and consistency across facilities.
Product Information
Extended Description
1SFA619126R1074 ABB: The CPM3-10L-11 Mushroom Pushbutton is: Compact - Mushroom Pushbutton - Momentary - Mushroom - Blue - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Mushroom Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Mushroom
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
66c2f2f7-650c-4a68-a3cc-59ef98a38bd0 Sweden (SE)
Simplified SCIP
68d887ba-dc7b-4e01-8176-fbc05d24da79 Germany (DE) | 1d7d44dc-2082-4995-914e-847c6c2381f2 Croatia (HR) | ecf0f340-5208-4b70-a95f-08ec9cd52039 Poland (PL) | d3e81ded-0c0b-4547-b856-70b81b1f45ed Czech Republic (CZ) | 675bd835-0b25-4c57-bbe0-da483831301a Estonia (EE) | c7a948f7-4a7d-40fb-bda3-589f44973a03 Netherlands (NL) | 335e2a1b-a26d-4213-aa02-de53fcd7abbf France (FR) | feaeaeb4-434b-4d25-8fd1-1c2195836e0b Hungary (HU) | cec9f8e1-2cd0-41d1-be81-d6bd6d8c84d4 Greece (GR) | f09d4589-4e45-479c-91c4-745505489d69 Portugal (PT) | cccf1fc7-f2a0-49d1-a01b-fdafc16470b0 Bulgaria (BG) | 914f9e31-3e8d-4c33-bbc9-bdd37d95fef2 Sweden (SE) | 68d3cabe-fe23-48ae-b3e1-9690323d6dcd Poland (PL) | 85eebea6-70b2-4b13-908c-dd01285b3886 Spain (ES) | 7f4414f9-0edf-47df-94bc-033f0f83c35a Belgium (BE) | 5891175d-fc27-458a-82a2-bf91eedd108c Germany (DE) | dcdd06b5-670b-4f4c-8b9a-85ea34ecdfb7 Germany (DE) | 5921b7ad-9087-4a22-9c05-930808cc3c7d France (FR) | 72c326a5-8a58-47ed-8f44-62bdcac0e772 Hungary (HU) | 02b3b8f4-9989-48c4-b2b3-3b1310abf17c Poland (PL) | 8da4b5d2-6d69-464d-9488-8984349289c2 Italy (IT) | 64d59ae0-9c66-4768-95f8-a4817e168b8e Norway (NO) | 51446763-d0a9-4cae-b42c-337de63fd1ee Finland (FI) | c62ae195-6d09-47e7-9751-495aca7836d7 Belgium (BE) | d039a472-4460-4f96-ad33-502ed513bf2b Germany (DE) | fe7c8df1-fd0c-41cb-ac48-8e2a116f6ee1 Denmark (DK) | 893e842d-285d-47da-b344-fa14fd2b443c Germany (DE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.1 m
Package Level 1 Depth / Length
0.1 m
Package Level 1 Height
0.03 m
Package Level 1 Gross Weight
0.036 kg
Package Level 1 EAN
7320500383568
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Sweden)
3705011
Feature: Compact form factor and 1NO+1NC contacts. Business Impact: Frees panel space and simplifies wiring, enabling faster panel builds and easier maintenance. Application: Control panels in packaging lines and machine automation. Feature: Front protection IP66/IP67/IP69K. Business Impact: Delivers dust and water resistance in demanding environments, reducing downtime due to ingress. Application: Outdoor or dusty production areas, washdown environments. Feature: Screw Clamp connection and 0.8 N·m tightening torque. Business Impact: Faster, reliable field wiring with consistent torque ensuring long-term integrity. Application: Panel wiring on conveyors and automated machines. Feature: 300 V rated operation with 50/60 Hz. Business Impact: Supports versatile control circuits with both DC and AC signals, limiting component proliferation. Application: Mixed-voltage automation control, safety interlocks. Feature: 1 NO + 1 NC auxiliary contacts. Business Impact: Enables simple control logic for start/stop and interlocking schemes, improving safety and fault detection. Application: Process control and machine guarding in compact ABB pilot devices ecosystem. Feature: Non-illuminated blue actuator with black bezel. Business Impact: Clear tactile feedback without illumination power draw, reducing energy use in large installations. Application: Panels where indication external lighting is not required.
Get a Quick Quote for a ABB 1SFA619126R1074
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619126R1074?
Enquire Now
FAQs
This pushbutton uses screw clamp terminals for wiring with a tightening torque of 0.8 N·m. Wire ranges include flexible and solid conductors from 0.5 to 1.5 mm², enabling straightforward field wiring and reliable, vibration-resistant connections in demanding industrial panels.
It provides 1 NO and 1 NC auxiliary contact with a rated operational voltage up to 300 V and a rated frequency of 50/60 Hz. Operational currents include DC-13: 0.3 A at 24 V and 0.2 A at 125 V, and AC-15: 2 A at 240 V or 220/240 V, with a maximum power loss of 5 W.
Yes. The front of the pushbutton is protected to IP66, IP67, and IP69K, with terminals rated IP20. This makes it suitable for dusty, wet, and high-pressure wash-down environments common in manufacturing and packaging facilities.
The unit is supported by CE and UKCA declarations, UL/CSA (cURus) certification, CB certificate, RoHS and REACH compliance, and environmental attestations (EAC, DNV GL, and more). These certifications help streamline regulatory approvals and supplier qualification for regulated industries.
Ideal for compact control stations, machine guarding, and process controls, it delivers a reliable momentary action with 1NO+1NC, reducing wiring complexity and panel space. Its robust IP ratings and certifications minimize risk in regulated environments, while ABB’s pilot-device ecosystem supports standardized spares, faster maintenance, and lower lifecycle costs.
