ABB 1SFA619199R1007 Pushbutton - IP69K Front Protection
Part Number: 1SFA619199R1007
Quick Summary
ABB 1SFA619199R1007 Pushbutton is a compact momentary control device for panel-start applications. Engineers often struggle with limited panel space and lengthy wiring when retrofitting control stations. This device carries CE and UKCA conformity, CB and CULus certifications, and RoHS/REACH compliance, reflecting broad regulatory acceptance. Its high level of dust and water resistance, with front IP66/67/69K protection, makes it suitable for harsh environments, while non-illuminated green illumination reduces visual noise in automation panels. The compact design helps minimize panel depth and installation time, and the 1NO+1NC configuration supports versatile start-stop circuits, enabling reliable, cost-effective control across multiple lines and processes.
Product Information
Extended Description

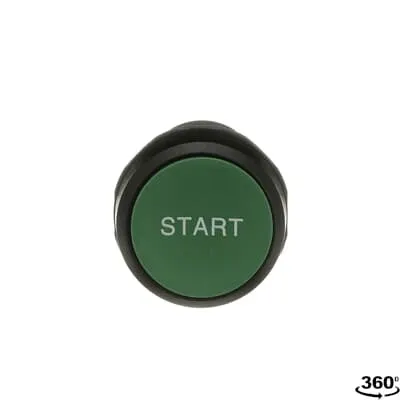

1SFA619199R1007 ABB: The CP9-1007 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Green - Non-illuminated - Black Plastic - 1NO+1NC - with marking "START"
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 304.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
START
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500259221
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
The pushbutton leverages a compact flush actuator to maximize panel real estate, delivering immediate business impact by reducing enclosure depth and installation complexity; it is ideal for space-constrained automation cabinets and machine panels used in packaging and material handling. The 1NO+1NC configuration enables simple start/stop logic, cutting wiring complexity and enabling more predictable maintenance intervals in conveyor and bottling lines. With a rated voltage up to 300 V and AC-15 and DC-13 current ratings, it supports common control circuits while maintaining safe operation and reduced heat dissipation, improving overall system reliability in process lines. Its front IP69K rating and operating temperature range of -25 to +70 °C ensure consistent performance in wet, dusty environments, lowering downtime in washdown areas and outdoor installations. Screw clamp terminals and a tightening torque of 0.8 N·m simplify field wiring and ensure robust connections under vibration. The device’s compact weight and dimensions (0.03 m width/height, 0.055 m depth) streamline retrofit projects and enable faster changeovers. RoHS and REACH compliance, plus CB/CULus certifications, support global procurement and regulatory alignment, reducing compliance risk and supplier audits. Compatibility with flexible and solid conductors from 0.5 to 1.5 mm², plus ferrule options, ensures reliable wiring with standard installation tools, while a 0.5 million mechanical durability rating provides confidence in long-term use in repeat-stop-start applications. Industry-leading compact pilot devices like this one help OEMs and integrators meet tight project timelines and budget targets by minimizing parts, simplifying assembly, and ensuring regulatory readiness across regions.
Get a Quick Quote for a ABB 1SFA619199R1007
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1007?
Enquire Now
FAQs
This pushbutton uses screw clamp terminals and supports flexible or solid conductors from 0.5 to 1.5 mm², including ferrules. It accepts 1x 0.5...1.5 mm² or 2x 0.5...1.5 mm² configurations and requires a tightening torque of 0.8 N·m, enabling secure, code-compliant field wiring and straightforward field upgrades.
Yes. It offers front protection IP66, IP67, and IP69K, with terminals protected to IP20. Operating temperature ranges from -25 to +70 °C, and its dust and water resistance supports reliable performance in washdowns, dust-prone floors, and outdoor or coastal environments.
The device is CE and UKCA compliant, with CB and CULus certificates. It also features RoHS and REACH declarations, CQC and DNV GL certificates, CCC/UK conformity, and WEEE B2B compliance, offering broad regulatory acceptance for global procurement and product deployment.
Rated insulation voltage is 300 V with a rated impulse withstand voltage of 6 kV. Rated frequency is 50/60 Hz. Operational current ratings are 2 A AC-15 at 240 V (and 220–240 V ranges) and 0.3 A DC-13 at 24 V (0.2 A at 125 V). Power loss is a maximum of 5 W, and the device supports up to 0.3 A at 24 V and 0.2 A at 125 V in DC-13 service.
The compact, flush-mounted design reduces panel depth and enables faster wiring, while screw terminals and 0.8 N·m torque ensure secure connections. The 1NO+1NC contact configuration simplifies control logic, supporting quick start/stop implementations across conveyors and presses. With broad compatibility and robust environmental protection, it lowers maintenance frequency and supports long service life in demanding automation environments.
