ABB 1SFA619199R1008 Pushbutton - IP69K Front
Part Number: 1SFA619199R1008
Quick Summary
The ABB 1SFA619199R1008 Pushbutton is a compact momentary pushbutton designed for control panels and machine start-stop circuits. In busy production lines, cramped panels and unreliable terminations drive downtime and maintenance costs, so a robust, easy-to-wire solution is essential. This device is built to withstand harsh environments with front IP66/IP67/IP69K protection, and it carries CE and UKCA declarations along with CB and DNV GL certifications for global compatibility. As a reliable pilot device in ABB’s compact range, it enables faster panel integration, lower wiring effort, and consistent performance across diverse machine applications. Use it to streamline start/stop control while maintaining stringent safety and compliance standards.
Product Information
Extended Description

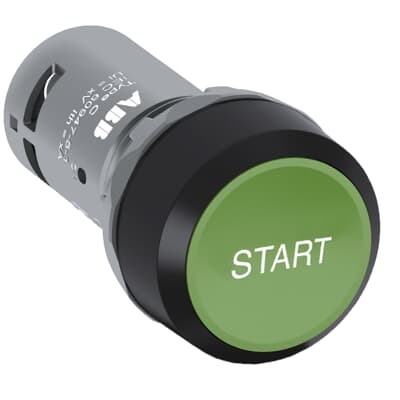

1SFA619199R1008 ABB: The CP9-1008 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Green - Non-illuminated - Black Plastic - 2NO - with marking "START" - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 304.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
START
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500259238
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature: Compact, flush actuator and momentary function. Business Impact: Reduces panel footprint and simplifies wiring, enabling tighter control layouts and faster commissioning. Application: Ideal for start/stop control on small to mid-sized automation panels. Feature: 2 NO contacts with 0 NC, rated up to 300 V, suitable for DC-13 and AC-15 configurations. Business Impact: Flexible driving of loads with predictable switching characteristics and safe isolation. Application: Suitable for general machinery control and signaling in packaging and material handling lines. Feature: Screw clamp terminals with specified tightening torque of 0.8 N·m. Business Impact: Secure, vibration-resistant terminations with repeatable performance, lowering rework and maintenance time. Application: Preferred in high-vibration environments like conveyors and robotics cells. Feature: Front protection IP66/IP67/IP69K; terminals IP20. Business Impact: High resistance to dust and washdown, reducing field service calls and increasing uptime. Application: Food & beverage, pharmaceutical, and harsh-cleaning environments. Feature: Operating range -25 to +70 °C; ambient conditions support robust field use. Business Impact: Maintains reliability across temperature swings, lowering failure rates and service intervals. Application: Outdoor or semi-outdoor control panels and process automation. Feature: Compact range compatibility with UL/CSA, CE, UKCA, CB, and DNV GL certifications. Business Impact: Global acceptance and streamlined compliance, enabling easier procurement and fewer regulatory hurdles. Application: Global installations requiring certified pilot devices and cross-border approvals. Feature: Durable mechanical life up to 0.5 million cycles and low power loss (max 5 W). Business Impact: Longer service life and reduced energy dissipation, lowering lifecycle costs. Application: High-cycle start/stop scenarios on production lines and automation loops.
Get a Quick Quote for a ABB 1SFA619199R1008
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1008?
Enquire Now
FAQs
It uses screw clamp terminals designed for flexible ferrule and solid conductors. Wiring options include 1 x 0.5–1.5 mm² or 2 x 0.5–1.5 mm², with UL/CSA capacities of 1x 22–14 AWG or 2x 22–14 AWG, enabling secure terminations and faster installation.
The device is rated for a maximum operational voltage of 300 V, with DC-13 ratings of (24 V) 0.3 A and (125 V) 0.2 A, and AC-15 ratings of (240 V) 2 A or (220/240 V) 2 A. Power loss is limited to 5 W, supporting efficient operation in control circuits.
Yes. It features front protection IP66/IP67/IP69K and terminals IP20, making it highly resistant to dust, water, and high-pressure washdowns typical in harsh environments such as food processing and packaging lines.
It carries CE and UKCA declarations, CB and DNV GL certifications, among others like CQC and cURus. This broad certification portfolio supports global deployment, regulatory compliance, and safer procurement for multinational projects.
The compact flush design, 2 NO contacts, and screw clamp wiring reduce panel space, terminate faster, and lower miswiring risk. With a mechanical life of 0.5 million cycles and low power loss, it also reduces maintenance frequency and energy use, improving total cost of ownership.
