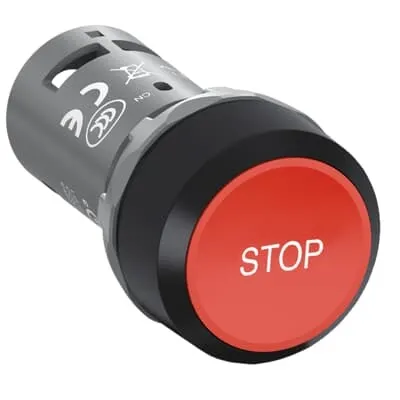

ABB 1SFA619199R1009 Pushbutton - IP69K Front
Part Number: 1SFA619199R1009
Quick Summary
Pushbutton ABB 1SFA619199R1009 is a compact momentary control device designed for panel-mounted stop/start functions in industrial automation. Engineers often battle long installation times and parts mismatch when retrofitting control stations. The product carries CE and UKCA declarations, CB certification, and DNV GL certification, supporting safety and reliability. Its IP66/IP67/IP69K front protection and robust 0.5 million mechanical cycles reduce maintenance costs and downtime. This compact pushbutton in the ABB pilot devices family combines a red non-illuminated flush actuator with 1NO+1NC contacts, and screw terminals for fast, secure wiring, delivering clear value for modern control panels and safety circuitry.
Product Information
Extended Description
1SFA619199R1009 ABB: The CP9-1009 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Red - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 303.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
STOP
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500259245
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature: The compact flush actuator with 1NO+1NC contacts delivers a small footprint and simple wiring, enabling tighter panel layouts. Business Impact: By reducing depth and connection points, installation time drops and field wiring errors decline, lowering labor costs and speeding commissioning. Application: Ideal for control panels in conveyors, packaging lines, and machine safety circuits where space is at a premium. Industry insight: The flush design minimizes protrusions, improving enclosure integrity in crowded panel environments. Feature: Front ingress protection of IP66, IP67, and IP69K provides robust dust and water resistance. Business Impact: Operators can rely on consistent performance in washdown environments and dusty plant floors, reducing unplanned downtime. Application: Food & beverage, pharmaceutical, and automotive assembly lines benefit from this level of protection. Industry context: When combined with a durable black plastic bezel and red actuator, it maintains reliability across repetitive cleaning cycles. Feature: Electrical ratings include rated insulation voltage up to 300 V and AC-15 up to 2 A; DC-13 values at 24 V and 125 V. Business Impact: Directly supports standard automation controllers without needing external transformers or adapters, cutting BOM complexity. Application: Control circuits, stop/start interlocks, and signaling lines in medium-power automation. Industry note: With 50/60 Hz operation, these ratings align with common PLC outputs and field devices. Feature: Screw clamp terminals and versatile conductor compatibility with 0.8 N·m tightening torque and 6 mm wire stripping. Business Impact: Ensures reliable, vibration-resistant terminations, reduces rework on field connections, and speeds up installation. Application: Mounting on control panels and distribution boards where wiring clarity matters. Industry nuance: UL/CSA compatibility supports mixed-wiring environments across regions. Feature: ABB compact range and 0.5 million mechanical cycles combine efficiency with durability. Business Impact: Longer service life lowers maintenance costs and downtime in high-cycle applications. Application: Emergency-stop style or stop/start control in demanding manufacturing lines. Industry note: This device integrates with the broader ABB Pilot Devices portfolio for scalable, standardized control solutions.
Get a Quick Quote for a ABB 1SFA619199R1009
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1009?
Enquire Now
FAQs
This pushbutton uses screw clamp terminals with a tightening torque of 0.8 N·m and requires 6 mm of wire stripping. It supports flexible with ferrule and solid conductors (1 x 0.5–1.5 mm² up to 2 x 1.5 mm²), enabling secure, vibration-resistant terminations. Plan panel cutouts to accommodate its compact flush actuator and ensure ample space for wiring and labeling.
The unit provides 1NO+1NC contacts with a rated insulation voltage of 300 V and rated frequency of 50/60 Hz. Rated operational currents include AC-15 up to 2 A at 240 V, and DC-13 up to 0.3 A at 24 V (0.2 A at 125 V). These specs support standard control circuits without extra power conversion, simplifying panel design.
Yes. It features front protection ratings IP66, IP67, and IP69K, with a rugged red flush actuator and black bezel. This combination supports reliable operation in washdown and dusty environments typical of food, pharma, and automotive assembly lines, while maintaining safe and consistent performance.
The device aligns with multiple certifications: CE and UKCA declarations, CB certificate, and DNV GL certification, along with REACH and RoHS declarations. It is designed for global use with WEEE B2B relevance, ensuring regulatory compliance across diverse markets.
The pushbutton offers up to 0.5 million mechanical cycles, supporting long service life in high-cycle applications. With robust terminals, standard wiring practices, and ABB Pilot Devices compatibility, maintenance is predictable, and replacement parts are readily sourced, helping minimize downtime and improve total cost of ownership.
