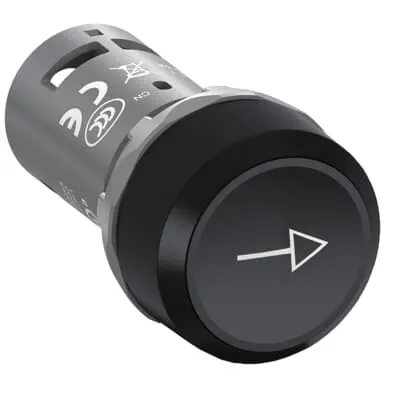

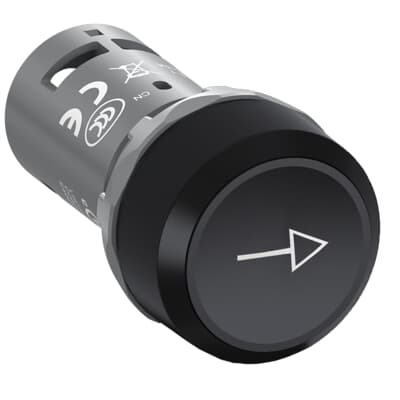

ABB 1SFA619199R1015 Pushbutton - IP66 Front
Part Number: 1SFA619199R1015
Quick Summary
The 1SFA619199R1015 Pushbutton is a compact, momentary control device designed for pilot operations in industrial enclosures. When space is tight and installation time matters, wiring and mounting can become a bottleneck for panel builders. It delivers rugged performance with front protection rated IP66, IP67, and IP69K, and it carries CE and UKCA conformity along with RoHS and CB certifications for compliant, global deployments. This pushbutton, part of ABB's compact range, reduces installation complexity and overall cost while providing 1NO+1NC contacts and a 300 V operating envelope for versatile control of machinery in harsh environments. Additionally, its flush actuator and black bezel simplify panel aesthetics while minimizing intrusion into the control area.
Product Information
Extended Description
1SFA619199R1015 ABB: The CP9-1015 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Black - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 368.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
Arrow up
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500355954
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature is a compact 1NO+1NC momentary pushbutton with a flush actuator and black bezel. Business Impact is reduced panel footprint and simplified wiring, accelerating assembly and reducing field wiring errors. Application is machine control panels and pilot devices in space-constrained control cabinets. Feature front protection IP66/IP67/IP69K provides robust ingress protection. Business Impact is reliable operation in washdown and dusty environments, lowering maintenance costs and downtime. Application includes food processing, chemical processing, and automotive manufacturing lines. Feature operates at 300 V with AC-15 up to 2 A and DC-13 up to 0.3 A at 24 V, 0.2 A at 125 V. Business Impact is broad compatibility with common control circuits, enabling safer, more efficient switching with fewer components. Application spans general automation panels and variable-speed drive interfaces. Feature uses screw clamp terminals compatible with flex and solid conductors from 0.5 to 1.5 mm², with a tightening torque of 0.8 N·m. Business Impact is secure, vibration-resistant connections and straightforward field wiring. Application includes dense panel layouts and retrofits with existing ABB compact range components. Feature weighs 0.022 kg and measures 0.03 m wide, 0.03 m high, and 0.055 m deep, contributing to lightweight, space-saving installations. Business Impact is lower panel mass, easier enclosure fit, and reduced shipping costs. Application includes high-density control panels in harsh environments. Feature is rated for ambient temperatures from -25 to +70 °C and supports ferrule wiring and 0.5–1.5 mm² conductors. Business Impact is reliable performance across operating conditions and easy integration into diverse control circuits. Application spans global panel builds and retrofit projects. Feature provides 0.5 million mechanical cycles, keeping downtime minimal over life cycles. Business Impact is long life expectancy and reduced replacement costs. Application includes continuous operation in demanding environments. Feature integrates CE/UKCA, RoHS, CB, CQC, cURus, CCC certifications. Business Impact is regulatory compliance across markets, enabling safer procurement and faster approvals. Application spans multinational manufacturing facilities and service networks.
Get a Quick Quote for a ABB 1SFA619199R1015
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1015?
Enquire Now
FAQs
The pushbutton is designed for screw clamp terminals and ferrule-compatible wiring, supporting flexible conductors from 0.5 to 1.5 mm². It uses a tightening torque of 0.8 N·m, which ensures reliable connections in standard panel cutouts and existing enclosure layouts, enabling straightforward retrofits or new installs.
It is a momentary 1NO+1NC device rated up to 300 V, with AC-15 up to 2 A and DC-13 up to 0.3 A at 24 V (0.2 A at 125 V). The device has a maximum power loss of 5 W and a mechanical durability of 0.5 million cycles, suitable for demanding industrial switching tasks.
Yes. The front is protected to IP66/IP67/IP69K, while terminals remain IP20, providing robust protection in washdown and dusty environments. This makes it well-suited for food processing, chemical handling, and other environments where moisture and particulates are a concern.
The device carries CE and UKCA conformity, RoHS compliance, and CB, CQC, and cURus certifications. Additional compliance notes include EMC/industrial safety declarations and support for global deployments, including DNV GL and other international certifications referenced in the product data.
The compact form factor reduces panel depth and wiring complexity, cutting installation time. Its high durability (0.5 million cycles) and low power consumption (max 5 W) lower maintenance and energy costs, while CE/UKCA compliance reduces risk during audits and market rollouts.
