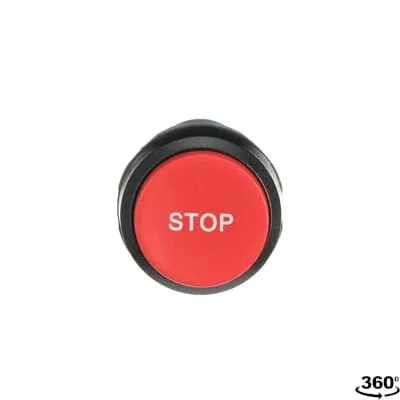

ABB 1SFA619199R1018 Pushbutton - IP66 compact 1NO+1NC
Part Number: 1SFA619199R1018
Quick Summary
ABB 1SFA619199R1018 Pushbutton is a compact momentary control device designed for harsh industrial environments and machine panels. The short lead-time and simple installation help reduce commissioning costs, but many engineers struggle with integration in tight spaces and dust or water exposure. This pushbutton delivers robust front protection and a compact footprint while meeting essential safety and performance standards. With CE, UKCA, and third-party safety certifications, plus RoHS and REACH compliance, it supports regulatory adherence across global operations. For OEMs and integrators, it enables faster panel assemblies, improved reliability, and easier spare-part management within existing ABB compact pilot-device ecosystems.
Product Information
Extended Description
1SFA619199R1018 ABB: The CP9-1018 Pushbutton is: Compact - Pushbutton - Momentary - Extended - Red - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 303.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
STOP
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500338148
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature → Business Impact → Application: The CP9-1018 pushbutton delivers a compact footprint with 1NO+1NC auxiliary contacts, enabling precise control circuits while preserving panel space and reducing wiring complexity. This translates to lower enclosure costs and faster installation in machine controls and safety circuits. Application: control cabinets, distribution boards, and compact automation panels where space is at a premium. Feature → Business Impact → Application: Extended actuator and non-illuminated design reduce failure points in dusty or rugged environments, improving uptime and maintenance intervals. Application: outdoor or wash-down areas where visibility is less critical yet reliability is essential. Feature → Business Impact → Application: Screw clamp terminals and compatible wire ranges streamline field wiring, cut tightening time to around 0.8 N·m, and improve termination quality. Application: retrofit jobs and new builds across manufacturing lines with tight wiring schedules. Feature → Business Impact → Application: Front IP66/IP67/IP69K protection combines with 300 V insulation and 6 kV impulse withstand, delivering safe operation in high-humidity environments and ensuring compliance with stringent industrial standards. Application: presses, conveyors, and robotic cells where equipment encounters dust, water jets, and wash-down cycles. Feature → Business Impact → Application: Mechanical durability rated at 0.5 million cycles provides predictable lifecycle costs and lower total cost of ownership. Application: long-running safety interlocks and start/stop controls in high-cycle applications. Feature → Business Impact → Application: 1NO+1NC configuration supports versatile interlocking schemes and safe-stop functions, enabling compliant emergency-stop alternatives and improved fault tolerance. Application: safety circuits in packaging, food & beverage lines, and material handling systems. Long-tail keywords integrated include compact pilot devices, 1NO+1NC pushbutton, non-illuminated red pushbutton, IP66 rated momentary pushbutton, screw clamp terminal pilot device, and ABB compact range compatibility.
Get a Quick Quote for a ABB 1SFA619199R1018
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1018?
Enquire Now
FAQs
Yes. The 1SFA619199R1018 uses screw clamp terminals with flexible conductor ranges and a compact footprint designed to drop into standard ABB and third-party pilot-device enclosures. The 0.8 N·m tightening torque ensures secure termination without over-torquing. This makes retrofits and new installations straightforward in compact control panels.
The device is rated for 300 V with DC-13 and AC-15 operating currents of up to 0.3 A (DC) and 2 A (AC) respectively, depending on the voltage. It is non-illuminated with a 0.5 million mechanical durability, and supports 50/60 Hz operation, making it suitable for standard industrial control circuits.
Yes. Front protection is IP66/IP67/IP69K, and terminals vary in protection, with IP20 behind the terminals. This makes it well-suited for dusty, wash-down, and high-pressure cleaning environments commonly found in manufacturing and packaging lines.
It carries CE and UKCA declarations, along with CB and cULus safety certifications, RoHS and REACH compliance, and various environmental/WEEE alignments. This combination supports regulatory compliance across global operations and supplier qualification programs.
The compact footprint and quick termination reduce panel space needs and wiring time, while high durability lowers maintenance costs and part replacements. The result is lower installation labor, faster time-to-production, and improved overall equipment effectiveness (OEE) in automation lines.
