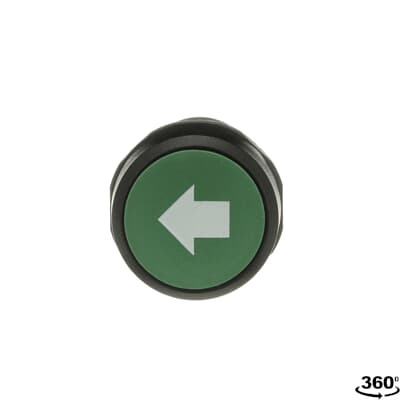

ABB 1SFA619199R1019 Pushbutton - 1NO+1NC, Flush IP69K
Part Number: 1SFA619199R1019
Quick Summary
Pushbutton CP9-1019 provides compact, momentary control for small automation panels. In tightly packed control cabinets, lengthy wiring and misalignment slow projects and inflate costs. This ABB device features front IP69K protection, CE and UKCA conformity, and RoHS/REACH compliance, ensuring safe, regulator-friendly operation even in wash-down environments. Leveraging ABB’s compact pilot device family, it offers easy wiring with screw clamps, 1NO+1NC contacts, and a non-illuminated green bezel for clear status indication. The combination of a small footprint, robust environmental ratings, and straightforward installation translates into faster commissioning, reduced maintenance, and lower lifecycle costs for machine builders and integrators, while maintaining strict safety and regulatory standards.
Product Information
Extended Description
1SFA619199R1019 ABB: The CP9-1019 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Green - Non-illuminated - Black Plastic - 1NO+1NC -
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 051.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
Arrow up
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500339350
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature → Business Impact → Application: The CP9-1019’s compact flush actuator and 1NO+1NC configuration deliver space-saving signaling critical for space-constrained control panels, reducing panel width and enabling tighter layouts in automated lines. This directly lowers assembly time and wiring complexity, producing measurable throughput gains on machine builds and retrofits. Feature → Business Impact → Application: Front protection rated IP66/IP67/IP69K combined with robust environmental sealing ensures reliable operation in wash-down and dusty environments, minimizing unscheduled downtime in food, beverage, and process industries while enabling easier cleaning cycles. Feature → Business Impact → Application: Screw clamp terminals and a 6 mm wire-strip length simplify field wiring, reduce install error, and cut commissioning time, especially in high-mix, low-volume production environments. Feature → Business Impact → Application: The 0.8 N·m tightening torque and 0.5 million mechanical durability enable durable, vibration-resistant performance in CNC machines and packaging lines, improving uptime and lowering maintenance costs. Feature → Business Impact → Application: Wide operating voltage range (AC-15 up to 2 A; DC-13 up to 0.3 A) supports diverse control circuits, allowing reuse across projects and minimizing spare-part inventories. Feature → Business Impact → Application: Compatibility with ABB’s compact pilot devices and multiple NEMA enclosure types streamlines procurement and installation strategies, offering a scalable solution for distributors and integrators. By addressing common objections about space, maintenance, and wiring complexity, this pushbutton delivers tangible efficiency, reliability, and cost savings in real-world industrial applications.
Get a Quick Quote for a ABB 1SFA619199R1019
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1019?
Enquire Now
FAQs
The CP9-1019 uses screw clamp terminals with a tightening torque of 0.8 N·m and requires 6 mm wire stripping. Its compact footprint (0.03 m width) and flush actuator support simple panel integration, enabling reliable 1NO+1NC signaling in tight control panels while minimizing backplane complexity.
Yes. It offers front protection ratings IP66, IP67, and IP69K, making it well suited for washdown and dusty environments. Combined with non-illuminated operation and a black plastic bezel, it maintains clear status indication while withstanding challenging factory conditions.
The device supports AC-15 up to 2 A and DC-13 up to 0.3 A, with a rated operational voltage up to 300 V. It also withstands a rated impulse voltage of 6 kV and a frequency of 50/60 Hz, enabling compatibility with standard control circuits across diverse industrial applications.
CP9-1019 complies with CE and UKCA for pilot devices, RoHS and REACH for materials and use, and carries wash-down capable IP-rated protection. These certifications help ensure regulatory alignment, global market access, and safer, compliant operation in industrial environments.
With 0.5 million mechanical durability and a compact, easy-to-wire design, the CP9-1019 reduces wiring labor, speeds commissioning, and lowers spare-part complexity. Its robust enclosure compatibility and minimal footprint translate to higher line uptime and lower lifecycle costs for machine builders and end users.
