ABB 1SFA619199R1020 Pushbutton - 1NO+1NC, 300 V, IP66
Part Number: 1SFA619199R1020
Quick Summary
Pushbutton CP9-1020 from ABB provides momentary control for industrial panels and machines. Engineers often face lengthy wiring and installation time when selecting compact, compatible pilot devices. This device carries CE, UKCA and UL/CSA certifications along with CB/CCC documentation, plus rugged front IP66 protection (with variants up to IP69K) for harsh environments. The combination of a compact, flush bezel design and robust electrical ratings translates into faster panel integration, lower commissioning costs, and easier regulatory compliance for value-focused OEM projects and maintenance teams alike.
Product Information
Extended Description

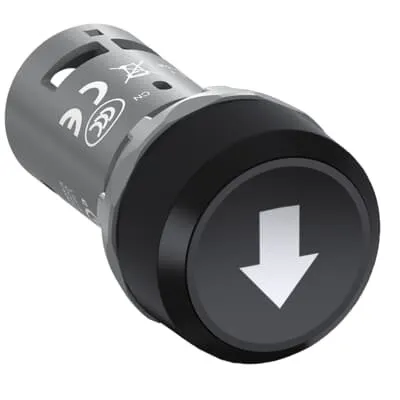

1SFA619199R1020 ABB: The CP9-1020 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Black - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 001.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
Arrow dwon
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500339367
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
The CP9-1020 Pushbutton embodies a compact design with a flush actuator that frees panel space and simplifies enclosure layouts, reducing installation time and panel depth requirements in tight spaces. This directly improves assembly efficiency on high-mix low-volume production lines and packaging machines, where every millimeter and second counts. The 1NO+1NC configuration, with momentary action and non-illuminated operation, delivers straightforward control logic for start/stop and interlock functions, minimizing wiring complexity and potential failure points in control circuits. Screw clamp terminals support versatile conductor options, including flexible and solid wires from 0.5 to 1.5 mm², enabling quick terminations and reliable maintenance across diverse control panels. With a 0.8 N·m tightening torque and 6 mm wire-stripping length, field wiring remains consistent and reduces rework during commissioning. The device’s environmental resilience—Operation -25 to +70 °C and Front IP66/IP67/IP69K protection—ensures dependable performance in dusty, wash-down, or outdoor panel applications, lowering downtime and service costs. Its broad enclosure compatibility (Type 1/12/13/3R/4/4X) and RoHS/REACH compliance support global deployments and future-proof panel designs. The robust mechanical durability (0.5 million cycles) and conservative heat loss (max 5 W) translate into lower maintenance and fewer preventive replacements, increasing overall equipment effectiveness. ABB’s commitment to compliance is reinforced by UL/CSA, CB, CE, and UKCA certifications, streamlining procurement and approval processes for international projects. In short, CP9-1020 integrates easily with existing ABB pilot device families while delivering measurable reductions in installation time, wiring complexity, and lifecycle costs.
