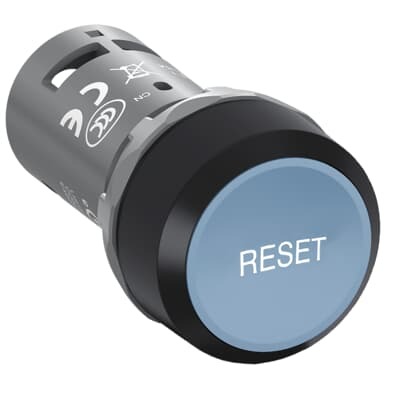

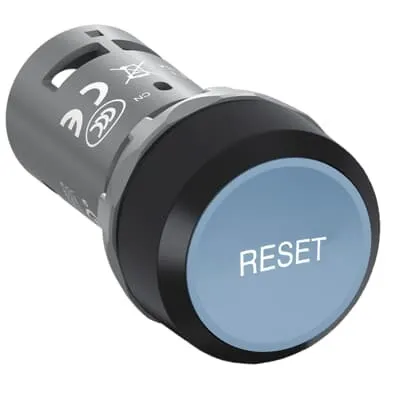

ABB CP9-1021 Pushbutton - Front IP66/IP67/IP69K
Part Number: 1SFA619199R1021
Quick Summary
CP9-1021 Pushbutton is a compact momentary control used in panel-mounted automation applications. In practice, engineers often battle space constraints, wiring time, and exposure to dust or water in harsh environments. This device meets those needs with advanced protection and a streamlined form. Certified for CE, UKCA, and CB with RoHS/REACH compliance, it delivers regulatory confidence for global installations. The combination of a non-illuminated blue actuator, 1NO+1NC contacts, and a 300 V rating supports reliable control in compact pilot device assemblies, reducing installation costs and spare-part complexity while maintaining safety and performance across demanding industrial environments.
Product Information
Extended Description
1SFA619199R1021 ABB: The CP9-1021 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Blue - Non-illuminated - Black Plastic - 1NO+1NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 305.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
RESET
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500358719
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature: Compact flush actuator design → Business impact: Enables dense panel layouts and easier installation in limited spaces, reducing enclosure width and wiring effort. Application: Ideal for control panels in packaging or conveyors where space is at a premium. Feature: Momentary action with 1NO+1NC contacts → Business impact: Simplifies logic wiring and minimizes contact wear for short electrical pulses, lowering maintenance cycles. Application: Start/stop control on process lines and machine tools. Feature: Blue, non-illuminated bezel in black plastic → Business impact: Clear operator indication in dim environments without power draw, reducing energy costs and noise in lighting. Application: Push-to-test or reset sequences on pilot devices. Feature: 300 V rated insulation and AC-15/DC-13 compatibility → Business impact: Broad electrical compatibility with standard control circuits, enabling a single part across equipment families and reducing stocking complexity. Application: 24 VDC and 230 VAC control circuits in industrial equipment. Feature: Front IP66, IP67, IP69K protection → Business impact: Extraordinary dust and water resistance minimizes field failures and service calls in wash-down or dusty environments. Application: Food & beverage, packaging, and outdoor machinery. Feature: Screw clamp terminals and 0.8 N·m tightening torque → Business impact: Fast, secure wiring with consistent termination, lowering rework and tightening time on installation. Application: New builds and replacements where durable connections matter. Feature: 0.5 million mechanical cycles → Business impact: Demonstrates long-term reliability in high-use applications, improving total cost of ownership. Application: Repetitive pushbutton actions in control panels and pilot devices. Feature: Extensive certifications (CE, UKCA, CB, RoHS/REACH, UL/cUL compatibility) → Business impact: Regulatory compliance across multiple markets, reducing certification lead times for global projects. Application: Global rollout of automated lines and distributed control systems. Feature: Lightweight 0.022 kg mass and compact footprint → Business impact: Minimizes load on panel fronts and supports modular, scalable control architectures. Application: Retrofit projects where weight and space are critical.
Get a Quick Quote for a ABB 1SFA619199R1021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1021?
Enquire Now
FAQs
To install, prepare conductors with the recommended stripping length (6 mm) and use flexible or solid wire 0.5 to 1.5 mm² per terminal. Tighten to 0.8 N·m, ensuring solid contact. The device supports 1 x 0.5...1.5 mm² or 2 x 0.5...1.5 mm² per terminal and accommodates both ferrule and non-ferrule wires for secure, code-compliant termination.
Yes. The CP9-1021 features front protection rated IP66, IP67, and IP69K, providing excellent dust and water resistance in wash-down and dusty environments. This makes it well-suited for food processing, packaging, and outdoor installations where contamination and moisture are concerns.
The device is rated for up to 300 V and supports DC-13 (24 V: 0.3 A; 125 V: 0.2 A) and AC-15 (240 V: 2 A; 220/240 V: 2 A). It is a 1NO+1NC momentary pushbutton with a maximum power loss of 5 W, suitable for standard control circuits in automation panels.
The CP9-1021 carries CE and UKCA declarations, CB certificate, cURus, CI/CQC health and safety declarations, and RoHS/REACH compliance, along with other regulatory markings. This broad certification support helps streamline global deployments and supply chain approvals for pilot devices.
With a mechanical durability of approximately 0.5 million cycles, the CP9-1021 is designed for high-use applications. Regular inspection of screw terminals and connectors is advised, and any sign of looseness or corrosion should be addressed promptly to maintain reliability in harsh industrial environments.
