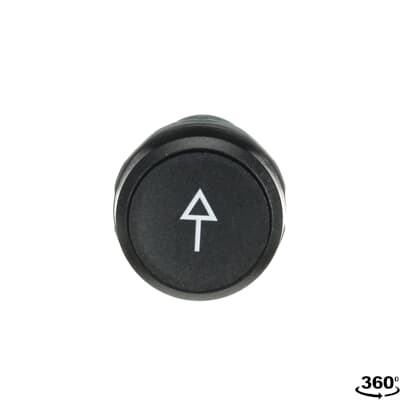

ABB 1SFA619199R1032 Pushbutton - Front IP66/IP67/IP69K
Part Number: 1SFA619199R1032
Quick Summary
Pushbutton ABB CP9-1032 is a compact, momentary flush button ideal for control panels and distributed automation. The design helps engineers cut installation time and simplify wiring in tight enclosures. With front IP66, IP67, and IP69K protection, plus a rugged black plastic bezel, it withstands dust, washdowns, and demanding environments. CE and UKCA markings, along with CB and other declarations, ensure global compliance for panel builders and integrators. The 2 NO contacts deliver reliable control in limited space, while the compact footprint supports scalable machine design and easy OEM integration. This device combines efficiency, durability, and cost savings, making it a practical choice for diverse industrial applications.
Product Information
Extended Description
1SFA619199R1032 ABB: The CP9-1032 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Black - Non-illuminated - Black Plastic - 2NO -
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 021.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
Arrow up
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500356838
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature: Compact flush actuator with two normally open contacts. Business impact: The compact footprint reduces panel real estate while preserving essential control functions, enabling tighter layouts and fewer component mismatches. Application: Ideal for control panels, distributed starter cabinets, and machine enclosures where space is at a premium. This combination also lowers assembly time as fewer harnesses are needed, increasing throughput on high-mix builds. Feature: Front protection rated IP66, IP67, IP69K. Business impact: Fewer field failures in harsh environments translates to lower maintenance costs and less downtime. Application: Food processing, water treatment, and outdoor machinery benefit from certified ingress protection, while still delivering predictable switching behavior. Feature: Screw clamp terminals supporting flexible and solid conductors with a tightening torque of 0.8 N·m. Business impact: Faster, more reliable terminations reduce installation time and rework, while maintaining robust connections in vibration-prone environments. Application: Panel wiring across automation, packaging lines, and conveyors. Feature: Rated AC-15 up to 2 A at 240 V, and DC-13 up to 0.3 A at 24 V; power loss max 5 W. Business impact: Enables efficient control circuits with minimal heat and energy usage, improving overall panel performance and cooling requirements. Application: Starter circuits, signaling, and control logic in drives and logic modules. Feature: 0.5 million mechanical cycles with certifications (CE, UKCA, CB, RoHS/REACH, TSCA). Business impact: Longer service life reduces maintenance and replacement costs, while regulatory compliance supports audits and supplier qualification. Application: OEMs deploying globally across multiple sites seeking durable, certified pilot devices.
Get a Quick Quote for a ABB 1SFA619199R1032
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1032?
Enquire Now
FAQs
The CP9-1032 provides a compact flush actuator and screw clamp terminals suitable for flexible wiring. It supports both solid and ferrule-ended conductors from 0.5 to 1.5 mm², with a tightening torque of 0.8 N·m. This design reduces panel space requirements and simplifies field wiring, improving installation speed and reducing potential wiring errors in dense control panels.
This pushbutton features two normally open (NO) contacts and zero normally closed (NC) contacts. Electrical ratings include AC-15 up to 2 A at 240 V and DC-13 up to 0.3 A at 24 V, with a maximum power loss of 5 W. The device operates at up to 300 V and is designed for robust control signaling in panel projects.
Yes. The CP9-1032 is rated front IP66, IP67, and IP69K, offering strong protection against dust and high-pressure washdowns. This makes it suitable for food processing, beverage, water treatment, and outdoor machinery environments, where reliable operation in harsh conditions is essential and enclosure integrity must be maintained.
The device carries CE and UKCA declarations for conformity, along with CB certification and RoHS/REACH compliance. Additional certifications include cURus and DNV GL on related pilot devices. These certifications support global procurement, quality audits, and compliance with industry and regional regulatory requirements for multi-site deployments.
With a mechanical durability of 0.5 million cycles and low power loss, the CP9-1032 delivers extended service life and reduced replacement costs. Its compact footprint, IP-rated protection, and standard terminal design lower installation and maintenance labor, contributing to lower total cost of ownership and faster return on investment in panel builds and machine integrations.
