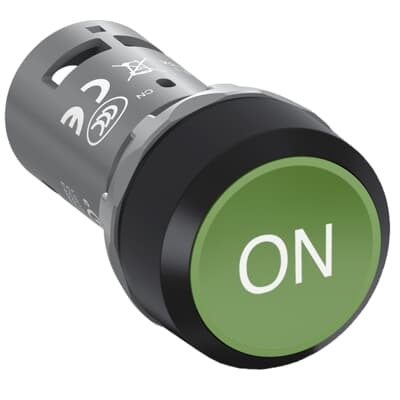

ABB 1SFA619199R1033 Pushbutton - Front IP66/IP67/IP69K
Part Number: 1SFA619199R1033
Quick Summary
The 1SFA619199R1033 Pushbutton is a compact momentary flush green pushbutton designed for robust control panels and machine interfaces. Engineers often struggle with installation time and ensuring ingress protection in wash-down or dusty environments, but this device addresses those pain points with a small footprint and high resistance to dust and water. It carries a suite of certifications that support safe integration into regulated systems, including CE/UKCA conformity and CB/CURustype approvals, reinforcing compliance across multiple markets. In addition to reliability, it aligns with ABB’s compact pilot-device range, delivering cost savings through reduced wiring, faster panel assembly, and proven compatibility with ABB accessories and standard control circuits. The product also supports flexible wiring and easy maintenance, underscoring value for industrial automation projects.
Product Information
Extended Description
1SFA619199R1033 ABB: The CP9-1033 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Green - Non-illuminated - Black Plastic - 1NO+1NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 301.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
ON
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500356678
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature → The pushbutton is compact with a flush actuator, 1NO+1NC configuration, and non-illuminated green bezel. Business impact → Enables space-saving panels and straightforward wiring, lowering install time and allowing easy diagnostics during operation. Application → Ideal for compact control stations and machine start/stop controls in panel-building projects. Feature → Rated up to 300 V and AC-15 2 A, with DC-13 0.3 A at 24 V and 0.2 A at 125 V. Business impact → Supports versatile control circuits and reliable switching in demanding industrial environments, reducing component count and improving uptime. Application → Suitable for general-purpose automation interfaces on conveyors and small machines. Feature → Front protection IP66/IP67/IP69K with terminals IP20. Business impact → Delivers superior ingress protection in wash-down and dusty areas, decreasing downtime due to contamination. Application → Common in food-processing, packaging, and outdoor equipment enclosures where wash-down cleanliness is essential. Feature → Screw clamp terminals for flexible and solid conductors, tightening torque 0.8 N·m, and wire-stripping length 6 mm. Business impact → Reassures secure, vibration-resistant connections, simplifying field wiring and serviceability. Application → Widely used in new installs and retrofits in control panels where reliable terminations are critical. Feature → Mechanical durability rated at 0.5 million cycles and 5 W power loss. Business impact → Ensures long service life with minimal maintenance, lowering lifecycle costs. Application → Critical in high-cycle applications such as production lines and automated handling. Feature → ABB’s compact range integration and 1NO+1NC configuration support easy expansion and compatibility with pilot devices. Business impact → Reduces engineering effort and stock complexity, accelerating project timelines. Application → Fits into standard ABB pilot-device ecosystems for scalable automation architectures.
Get a Quick Quote for a ABB 1SFA619199R1033
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1033?
Enquire Now
FAQs
This pushbutton uses screw clamp terminals with a tightening torque of 0.8 N·m and requires a wire stripping length of 6 mm. It supports flexible and solid conductors up to 1.5 mm² and is supplied in packages with a minimum order quantity of 10 pieces, aiding manufacturing planning and stock control.
Yes. The device is part of ABB’s compact pilot-device family and supports 1NO+1NC operation with a flush green actuator, designed to integrate smoothly with ABB’s pilot devices and companion accessories for streamlined panel builds.
It features 1NO+1NC contacts, with a maximum operating voltage of 300 V. Rated AC-15 at 240 V up to 2 A and DC-13 at 24 V up to 0.3 A (125 V up to 0.2 A). Power loss is limited to 5 W, and mechanical durability is rated at 0.5 million cycles.
The product carries CE and UKCA declarations, CB/CURus certifications, and additional declarations for REACH, RoHS, TSCA, and WEEE. It also provides CCC, CQC, and DNV GL references, ensuring broad regulatory alignment for global deployments.
Net width and height are 0.03 m with a net depth of 0.055 m, and a net weight of 0.022 kg. It offers front protection IP66, IP67, and IP69K, with terminals protected IP20, enabling durable operation in harsh environments and straightforward enclosure planning.
