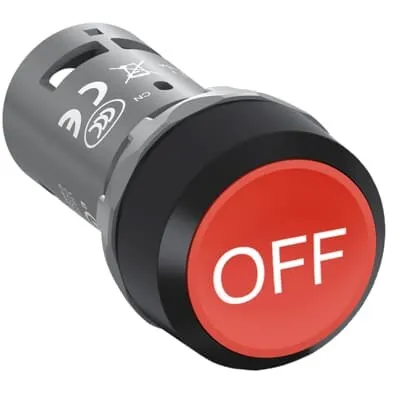

ABB 1SFA619199R1034 Pushbutton - Compact IP66/IP69K
Part Number: 1SFA619199R1034
Quick Summary
ABB 1SFA619199R1034 Pushbutton is a compact momentary control device designed for panel mounting in industrial automation. Engineers often face tight panel space, lengthy wiring, and environmental exposure that threaten uptime and inflate installation costs. This pushbutton delivers front protection rated IP66, IP67 and IP69K alongside CE, UKCA and CB certifications to support reliable operation in harsh environments. With a 1NO+1NC configuration, non-illuminated red bezel, and screw-terminal connections, it streamlines installation and maintenance while delivering consistent performance on automated lines and in control cabinets.
Product Information
Extended Description
1SFA619199R1034 ABB: The CP9-1034 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Red - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 302.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
OFF
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500356845
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Compact flush-mount design with 1NO+1NC contacts reduces panel footprint and wiring complexity, trimming assembly time and field wiring costs. This makes it ideal for space-constrained control panels on conveyors, packaging lines, and machine control setups. IP66/IP67/IP69K front protection guards against dust and wash-downs in harsh environments, reducing ingress risk and downtime, suitable for food & beverage, manufacturing and outdoor enclosures. The device is rated up to 300 V with AC-15 up to 2 A and DC-13 up to 0.3 A, plus 6 kV impulse withstand and 5 W power loss, delivering safe, reliable signaling for control circuits and motor loads. Screw clamp terminals with 0.8 N·m torque and 6 mm wire-stripping length simplify field wiring and maintenance while ensuring durable, vibration-tolerant connections. With a mechanical durability of 0.5 million cycles, you gain lower replacement costs and extended line availability; CE, UKCA, CB, RoHS and REACH certifications support regulatory compliance across global projects.
Get a Quick Quote for a ABB 1SFA619199R1034
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1034?
Enquire Now
FAQs
Mounting is flush with a standard panel, and wiring uses screw clamps that accept solid or ferrule-end conductors. The recommended tightening torque is 0.8 N·m and the connector supports ferrulated and solid conductors from 0.5 to 1.5 mm². This makes field installation straightforward on compact control panels and motor controllers, reducing commissioning time.
The pushbutton provides 1NO+1NC auxiliary contacts with AC-15 up to 2 A at 240 V and DC-13 up to 0.3 A at 24 V, a 300 V Ui rating and a 6 kV impulse withstand. It uses screw terminals with 0.8 N·m torque and a maximum power loss of 5 W. These specs ensure reliable signaling for typical automation circuits and safe operation.
Ideal for control panels on conveyors, packaging lines, and general machine controls, especially in harsh or wash-down environments. Its compact flush design saves panel space, while IP66/IP67/IP69K front protection withstands dust and water ingress. Compatibility with ABB Pilot Devices and standard enclosures makes it a versatile choice for OEMs and integrators.
This pushbutton carries CE, UKCA and CB certifications, along with RoHS and REACH declarations. Additional approvals include ETIM classifications EC001028 and DNV GL recognition for reliability in critical applications. WEEE is oriented toward business-to-business use. These marks support compliance when engineering panels for global deployments.
With 0.5 million mechanical cycles and a robust, compact design, this pushbutton minimizes replacement and downtime. Easy wiring, low power loss of up to 5 W, and a straightforward screw-terminal interface reduce lifecycle costs. The durable protection and compact form factor also translate to faster installation and longer mean time between failures on automated lines.
