ABB 1SFA619199R1040 Pushbutton - IP66/IP69K Front
Part Number: 1SFA619199R1040
Quick Summary
The 1SFA619199R1040 Pushbutton from ABB provides momentary control for compact automation panels. Engineers often struggle with space constraints and complex wiring when upgrading control stations. This compact pilot device helps reduce panel footprint and installation time with a simple screw clamp connection and a 0.8 N·m tightening torque. Built into ABB’s compact range, it offers robust protection in demanding environments, including front IP66, IP67, and IP69K ratings for washdown readiness. The device is CE and UKCA compliant and supports RoHS/REACH, accompanied by CB, UL/CSA and other global certifications for reliable multinational installations. For cost-conscious projects, it also functions as a true pilot device with 1NO+1NC contacts.
Product Information
Extended Description

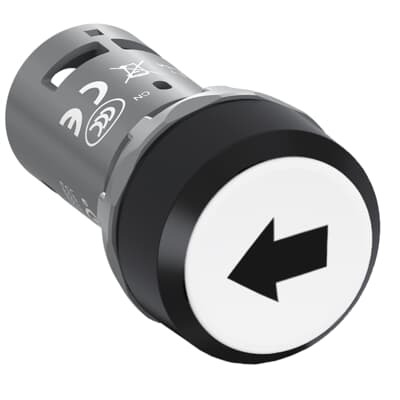

1SFA619199R1040 ABB: The CP9-1040 Pushbutton is: Compact - Pushbutton - Momentary - Flush - White - Non-illuminated - Black Plastic - 1NO+1NC -with markig "Arrow to left"- 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
85369001
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
White
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
Arrow left
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 1 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500358498
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature is a compact flush actuator with 1NO+1NC contacts, non-illuminated and white in color. Business impact is space efficiency and clear user interaction in tight panels, enabling faster wiring and reduced panel footprint in automation cabinets. Application spans control panels and small machines where a reliable, unobtrusive pushbutton is needed. Feature emphasizes front protection and environmental resilience with IP66/IP69K front ratings, delivering higher uptime in dusty or washdown environments, which translates to lower maintenance costs and fewer unscheduled shutdowns. Application is ideal for harsh industrial settings such as food & beverage lines, packaging, and robotics where washdown and debris are common. Feature covers screw clamp terminals and a 0.8 N·m tightening torque, ensuring repeatable, secure connections and lower installation rework. Application includes 6 mm wire stripping and compatibility with flexible and solid conductors, enabling quick field wiring and robust fault tolerance. Feature highlights 300 V rated operation and 50/60 Hz compatibility, supporting widespread industrial control circuits. Application includes 1x 22...14 AWG or 2x 22...14 AWG UL/CSA compatibility, which reduces the need for harness changes during upgrades. Feature notes mechanical durability of 0.5 million cycles and enclosure options Type1, Type12, Type13, Type3R, Type4 and Type4X, providing design flexibility for new builds and retrofits. Application is supported by RoHS/REACH compliance and various back-end certifications, reducing compliance risk in multinational projects. Feature final point emphasizes ABB’s compact range as a scalable solution for pilot devices in growing automation architectures, delivering lower total cost of ownership and predictable maintenance schedules.
Get a Quick Quote for a ABB 1SFA619199R1040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1040?
Enquire Now
FAQs
Install by wiring through the screw clamp terminals, using 0.8 N·m tightening torque and a 6 mm stripped wire length. Ensure the front IP66/IP69K seal remains intact and mount on a suitable panel cutout designed for flush actuators. The 1NO+1NC configuration supports standard control schemes without reclocking or re-terminating harnesses.
It operates up to 300 V with AC-15 at 1 A (240 V) and DC-13 at 0.3 A (24 V). It withstands 6 kV impulse voltage and supports 50/60 Hz. Power loss is limited to 5 W, with a mechanical durability of about 0.5 million cycles, suitable for demanding automation tasks.
Yes. The front is rated IP66, IP67, and IP69K, providing robust protection against dust and high-pressure washdowns, while terminals remain IP20. This makes it appropriate for harsh manufacturing areas and outdoor enclosures when mounted behind proper protection.
The device carries CE and UKCA conformity, RoHS and REACH compliance, plus CB, UL/CSA, CQC, CCC and other global certifications. This broad certification set supports compliance in multinational installations and reduces cross-border procurement risk.
With a mechanical durability rating of 0.5 million cycles and robust screw-terminal connections, maintenance intervals can be extended in typical panel environments. The non-illuminated, simple design minimizes failure points, while the compact form factor lowers installation and replacement costs during plant upgrades.
