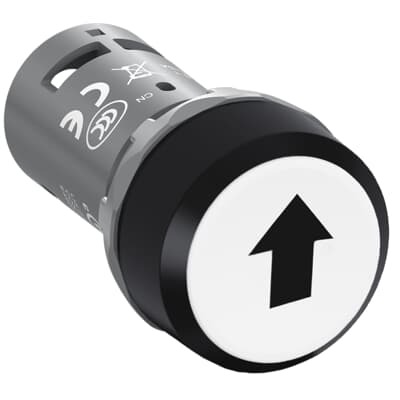

ABB 1SFA619199R1050 Pushbutton - 1NO+1NC, Front IP69K
Part Number: 1SFA619199R1050
Quick Summary
Pushbutton CP9-1050 is a compact momentary control device designed for panel-mounted start/stop applications in automation systems. Engineers face pressure to cut installation time while meeting harsh washdown and dust-resistance requirements. It features front IP69K protection, CE conformity, and CB/UL/CSA declarations to simplify global compliance. In addition to its small footprint, this member of ABB's compact pilot devices range delivers reliable actuation and scalable performance for conveyors, packaging lines, and machine controls, reducing downtime and total cost of ownership.
Product Information
Extended Description
1SFA619199R1050 ABB: The CP9-1050 Pushbutton is: Compact - Pushbutton - Momentary - Flush - White - Non-illuminated - Chrome Metal - 1NO+1NC with marking "Arrow to up" - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
85365019
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 052.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
White
Actuator Type
Flush
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Device Marking
Arrow up
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.364 kg
Package Level 1 EAN
7320500376478
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
The CP9-1050 pushes the boundaries of compact control by pairing a flush actuator with a chrome bezel, delivering a clean panel appearance while minimizing panel cutouts and enabling faster installation. This configuration supports tight control stations in space-constrained machines, improving operator ergonomics and reducing maintenance time. With 1 normally open and 1 normally closed auxiliary contact, you gain straightforward interlocking and signaling for safer machine start/stop sequences, reducing the risk of inadvertent resets. The device is rated for up to 300 V and supports both AC-15 and DC-13 operating regimes, enabling flexible integration across mixed control systems. Front protection up to IP69K ensures washdown viability in cleaning-heavy environments, while the rugged construction withstands daily industrial use. Screw clamp terminals, a 0.8 N·m tightening torque, and 6 mm wire stripping length simplify field wiring and improve connection reliability, even in harsh conditions. The CP9-1050 is part of ABB’s compact pilot devices family, delivering consistent actuation, lower spare-part costs, and straightforward replacement in standardized control panels. Compliance with RoHS, REACH, and WEEE requirements further reduces lifecycle risk and ensures global deployment without custom changes. Overall, this pushbutton supports faster project timelines, lower installation costs, and dependable operation in food processing, packaging, and material handling lines.
Get a Quick Quote for a ABB 1SFA619199R1050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1050?
Enquire Now
FAQs
CP9-1050 uses screw clamp terminals compatible with flexible and solid conductors from 0.5 to 1.5 mm². Terminal type is screw terminals and the recommended tightening torque is 0.8 N·m. Wire stripping length is 6 mm, and ferrule-trained conductors are supported for reliable, vibration-resistant connections in control panels.
The pushbutton provides 1 NO + 1 NC auxiliary contacts with a rated insulation voltage of 300 V. Rated operational current AC-15 is up to 2 A at 240 V (and at 220–240 V), while DC-13 ratings are 0.3 A at 24 V and 0.2 A at 125 V. It also supports a front-end impulse withstand of 6 kV and a maximum power loss of 5 W.
Yes. The device features front IP69K protection (with IP66/IP67 variants noted) suitable for washdown and exposure to rigorous cleaning processes. It is rated for ambient operation from -25 to +70 °C, with terminals protected at IP20, making it well-suited for conveyors, packaging lines, and rugged machine controls.
The CP9-1050 carries CE conformity and UL/CSA (cURus) declarations, plus UKCA where applicable. It aligns with RoHS and REACH requirements and supports WEEE categorization for B2B use. This broad certification footprint simplifies global deployment across facilities and ensures regulatory alignment with minimal customization.
Typical uses include start/stop control on conveyors, machine control panels, and safety interlocks in automated lines. It fits ABB’s compact pilot devices range, enabling fast replacement and consistent panel dimensions. With chrome bezels and a compact footprint, it provides a professional finish in space-constrained control stations while ensuring reliable actuation in demanding environments.
