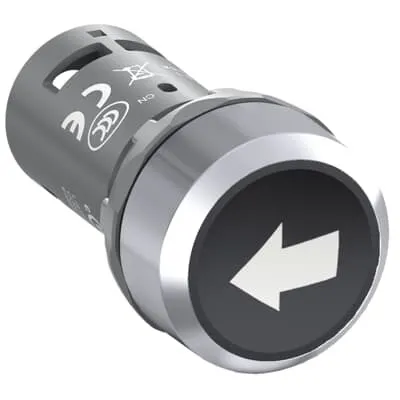

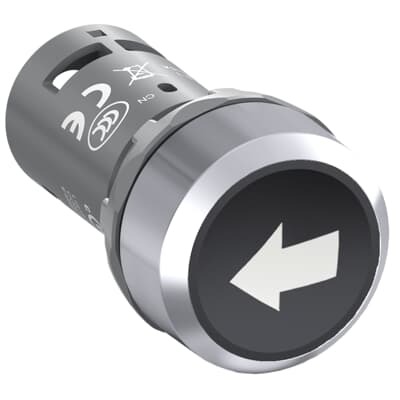

ABB 1SFA619199R1051 Pushbutton - IP66 Front, 6 kV
Part Number: 1SFA619199R1051
Quick Summary
ABB 1SFA619199R1051 Pushbutton is a compact momentary control device for panel-mounted automation. Engineers struggle with lengthy installation and protecting control access in dusty, wet plants. This device combines front IP66/IP67/IP69K protection with a 6 kV impulse withstand and CE/UKCA compliance, ensuring resilient operation across harsh environments. As part of ABB's compact range, it supports faster installations and reduced enclosure space, while maintaining reliability. For OEMs and panel builders, the robust pilot device simplifies wiring and minimizes assembly errors, delivering measurable business value. It is designed for standard 1NO+1NC configurations with screw terminals, helping to streamline changeovers and service.
Product Information
Extended Description
1SFA619199R1051 ABB: The CP9-1051 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Chrome metal - Non-illuminated - Chrome Metal - 1NO+1NC with symbol arrow down- 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
85365019
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 053.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Flush
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Device Marking
Arrow dwon
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 1 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.364 kg
Package Level 1 EAN
7320500376485
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature: Compact design and flush actuator save panel space and simplify mounting. Business Impact: enables smaller enclosures and faster wiring, reducing installation time and overall project costs. Application: ideal for dense control panels and limited-space cabinets. Feature: 1NO+1NC configuration with a chrome metal bezel and non-illuminated indicator. Business Impact: supports versatile control logic and clean operator interfaces, lowering mis-wiring risk and facilitating quick diagnostics. Application: process lines and machine controls that require dual-contacts without visible illumination. Feature: Front protection rating IP66/IP67/IP69K. Business Impact: ensures reliable operation in dusty and wash-down environments, reducing maintenance cycles and downtime. Application: food & beverage, manufacturing floors, and outdoor installations with hose-down cleaning. Feature: Screw clamp terminals and versatile conductor compatibility. Business Impact: simplifies field wiring, improves reliability, and speeds up commissioning with a 0.8 N·m tightening torque and 6 mm wire-stripping length. Application: panel builders seeking robust, serviceable connections. Feature: Broad electrical ratings and climate tolerance (-25 to +70 °C). Business Impact: supports direct integration with 24 V DC and 240–300 V AC circuits, enabling broader machine control scenarios while AWS/IEC compliance is maintained. Application: industrial automation across conveyors, presses, and packaging lines. Feature: Comprehensive compliance and ETIM classification. Business Impact: reduces regulatory risk and accelerates procurement with recognized standards (CE/UKCA, ETIM EC001028). Application: OEMs aiming for global market access and consistent parts cataloging.
Get a Quick Quote for a ABB 1SFA619199R1051
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1051?
Enquire Now
FAQs
The device uses screw clamp terminals compatible with flexible and solid conductors from 0.5 to 1.5 mm², including ferrule-end wires. Install with a tightening torque of 0.8 N·m and wire-stripping length of 6 mm to ensure a secure, vibration-resistant connection in compact panels.
Rated voltage is up to 300 V, with AC-15 at 240 V and 1 A, and DC-13 ratings of 0.3 A at 24 V and 0.2 A at 125 V. Operating temperature is -25 to +70 °C, with storage up to +85 °C. The device achieves a maximum power loss of 5 W and offers 0.5 million mechanical cycles.
Yes. It features CE and UKCA declarations of conformity, multiple certifications (CB, CQC, cURus, CCC), and ETIM classifications for pilot devices. It also carries robust environmental ratings (IP66 front, IP20 terminals) suitable for diverse regional regulations.
Ideal for panel-mounted machine controls, conveyors, and process lines in harsh environments. Its compact chrome bezel and 1NO+1NC configuration streamline control logic, while the non-illuminated actuator keeps operator interfaces clean in bright factory settings.
The compact footprint reduces enclosure size and wiring complexity, cutting installation time. Durable chrome metal construction and high ingress protection minimize maintenance and downtime, while universal specifications ensure compatibility across multiple machines, delivering faster commissioning and lower total cost of ownership.
