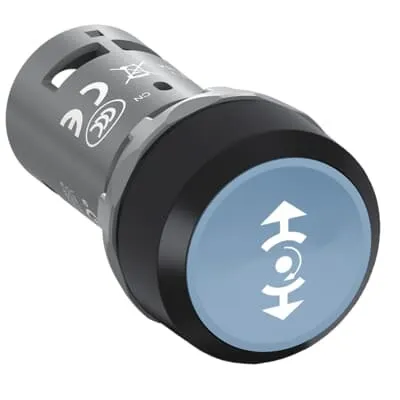

ABB 1SFA619199R1074 Pushbutton - IP66/IP69K Front
Part Number: 1SFA619199R1074
Quick Summary
Pushbutton ABB 1SFA619199R1074 enables reliable control in compact panels and automated machinery. This model addresses common wiring and space constraints that slow panel builds and increase installation costs. The compact flush design and blue, non-illuminated actuator deliver clean aesthetics and dependable operation in tight spaces. The device supports CE and UKCA compliance, and front protection ratings of IP66, IP67, and IP69K for washdown and rugged environments. By combining 1NO with screw clamp terminals, it offers straightforward wiring and maintenance, helping shorten commissioning time. Suitable for OEMs, panel builders, and field service teams, it provides a scalable pilot device solution with robust performance and long service life.
Product Information
Extended Description
1SFA619199R1074 ABB: The CP9-1074 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Blue - Non-illuminated - Black Plastic - 1NO - 1 NO - 0 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
Pictogram
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 1 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475386
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature: Compact, flush blue actuator with momentary action. Business Impact: Frees panel space and reduces assembly time, lowering overall installation costs. Application: Ideal for start/stop circuits in control cabinets and machinery enclosures. Feature: 1 NO contact, 0 NC; rated to 300 V; supports 24 V DC and 240 V AC circuits. Business Impact: Enables versatile control wiring with a reduced parts count and simplified maintenance. Application: Pilot devices and automation logic in conveyors and packaging lines. Feature: Front protection IP66 / IP67 / IP69K; terminals IP20. Business Impact: Enables reliable washdown performance and protection in harsh environments, reducing downtime and replacement costs. Application: Food/beverage, pharmaceutical, and general manufacturing environments. Feature: Screw Clamp connections; Tightening Torque 0.8 N·m; Wire Stripping Length 6 mm. Business Impact: Fast, secure installation with repeatable torque, improving field reliability. Application: Panel assembly and field wiring with flexible or solid conductors. Feature: Meets CE/UKCA and multiple standards (CB, RoHS, WEEE). Business Impact: Regulatory compliance reduces risk and accelerates time to market. Application: Global deployments across OEM and maintenance operations. Feature: Compact range integration with pilot devices and ETIM class EC001028. Business Impact: Streamlined spare parts management and standardized maintenance across equipment families. Application: OEM integration and service workforce efficiency.
Get a Quick Quote for a ABB 1SFA619199R1074
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1074?
Enquire Now
FAQs
Install with Screw Clamp terminals rated for Flexible or Solid conductors from 0.5 to 1.5 mm² (or 22–14 AWG). Tighten to 0.8 N·m and strip 6 mm of insulation. The unit supports 1 x 0.5…1.5 mm² or 2 x 0.5…1.5 mm² configurations, simplifying panel wiring and reducing installation time.
Rated for up to 300 V with DC-13: 0.3 A at 24 V and 0.2 A at 125 V; AC-15: 1 A at 240 V. It features front protection IP66/IP67/IP69K for washdown and rugged environments, plus a 6 kV impulse withstand rating and 0.5 million mechanical cycles for long service life.
Yes. The device offers front IP66, IP67, and IP69K protection, making it suitable for washdown areas and harsh manufacturing environments. Enclosure types include NEMA 1, 12, 13, 3R, 4, and 4X, supporting versatile installation in demanding applications.
The unit carries CE and UKCA declarations, plus CB, cURus, and RoHS/WEEE compliance. Additional certificates include EAC, CCC, DN V GL, and TSCA as listed for Pilot Devices, ensuring global regulatory alignment and reduced compliance risk.
The compact design reduces panel footprint and wiring effort, while 0.5 million mechanical cycles extend service life. Easy screw-terminal wiring lowers maintenance time, contributing to quicker commissioning and lower downtime in high-volume automation environments.
