ABB 1SFA619199R1086 Pushbutton - IP66/IP69K rated
Part Number: 1SFA619199R1086
Quick Summary
Pushbutton 1SFA619199R1086 is a compact illuminated momentary control device designed for robust industrial panels and machine control. Engineers often struggle with fitting reliable control points into tight spaces while protecting electronics from dust, moisture, and washdown. This solution carries CE, UKCA, and CB certifications to support global compliance, along with RoHS/REACH declarations for responsible sourcing. The compact design reduces wiring time and panel real estate, while 24 V LED illumination enhances visibility in harsh environments. For buyers, it translates to faster deployment, lower field wiring costs, and safer operation across diverse automation applications.
Product Information
Extended Description

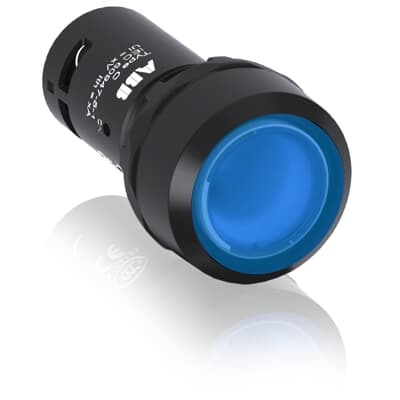

1SFA619199R1086 ABB: The CP9-1086 Pushbutton is: Compact - Pushbutton - Momentary - Extended - Blue - Illuminated - Black Plastic - 1NO - with laser marking "CHECK"- , 24 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 346.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.025 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Illuminated
Lamp Type
LED 24V AC/DC
Function
Momentary
Device Marking
CHECK
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz | Supply Circuit 50 / 60 Hz
Rated Operational Voltage
24 V AC/DC | Maximum 300 V | Supply Circuit 24 V AC/DC
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.254 kg
Package Level 1 EAN
7320500508114
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature → Business Impact → Application: The CP9-1086 style pushbutton in the ABB compact range is highly space-efficient, delivering a practical 1 NO contact configuration that minimizes panel footprint while preserving control functionality, enabling tighter control panels and streamlined wiring. This directly reduces installation time and wiring complexity, translating to lower labor costs and faster project turnover for machine builders and OEMs. Application: control panels, small automated lines, panel-mounted start/stop stations. Feature → Business Impact → Application: The device uses a 24 V LED lamp, delivering clear, immediate status indication even in bright factory floors, which reduces operator errors and improves process reliability. Application: visibility-critical controls in automated conveyors, packaging lines, and machine tools. Feature → Business Impact → Application: Front protection with IP66/IP67/IP69K ratings supports washdown and harsh environments, protecting electronics from water ingress and dust; this minimizes unplanned downtime and extends equipment life. Application: food and beverage packaging, pharmaceutical packaging machinery, and outdoor installations. Feature → Business Impact → Application: Screw clamp terminals with flexible and solid conductor compatibility plus a 0.8 N·m tightening torque simplify field wiring and ensure dependable connections; wire preparation is straightforward with a 6 mm stripping length. Application: on-site panel wiring and retrofit projects where reliability and ease of maintenance matter. Feature → Business Impact → Application: The product is certified for multiple regulatory standards (CE, UKCA, CB) and RoHS/REACH compliance, reducing procurement risk and simplifying audit trails. Application: compliance-heavy environments across global operations, including multinational OEMs. Feature → Business Impact → Application: The unit’s 0.3 A DC-13 and 2 A AC-15 ratings provide flexible control for co-operating loads while maintaining energy efficiency and safety. Application: motor-control circuits, auxiliary control in automation cells, and pilot devices within ABB’s compact range.
