ABB 1SFA619199R1087 Pushbutton - CE & UKCA Certified
Part Number: 1SFA619199R1087
Quick Summary
The 1SFA619199R1087 Pushbutton from ABB provides compact, maintained control for stop/start functions in industrial panels. Engineers often struggle with lengthy wiring, unreliable components, and costly rework when updating control stations. This device carries CE and UKCA conformity, UL/CSA readiness, and rugged front protection up to IP69K, enabling safe, compliant operation in harsh environments. As part of ABB's compact pilot-device range, it reduces installation time and wiring complexity, delivering dependable signaling in process automation while supporting panel miniaturization and cost efficiency.
Product Information
Extended Description

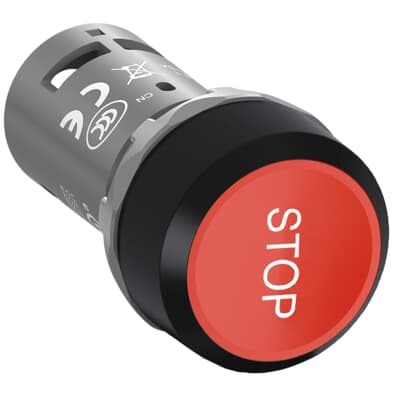

1SFA619199R1087 ABB: The CP9-1087 Pushbutton is: Compact - Pushbutton - Maintained - Flush - Red - Non-illuminated - Black Plastic - 2NC - 0 NO - 2 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
85369001
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 367.svg
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.022 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Flush
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Device Marking
STOP
Number of Auxiliary Contacts NC
2
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 1 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.224 kg
Package Level 1 EAN
7320500508176
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature: Compact, flush actuator design. Business Impact: Saves valuable panel space and simplifies installation, enabling tighter panel layouts without compromising ergonomics. Application: Ideal for crowded control cabinets in packaging lines and machine rooms where depth is limited and reliability matters. Feature: 2NC auxiliary contacts with maintained operation. Business Impact: Enhances control logic capabilities while reducing wiring complexity and cross-wiring risks. Application: Stop/interlock circuits and signaling in automation cells where a clear, latched OFF state is required. Feature: Non-illuminated red actuator with black bezel. Business Impact: Clear STOP indication in non-illuminated environments, minimizing power draw and simplifying label compliance. Application: Emergency-stop signaling in light- and power-constrained panels. Feature: Front protection IP66/IP67/IP69K. Business Impact: Robust washdown and dust resistance lowers maintenance frequency and service costs. Application: Food & beverage, pharmaceutical, and process industries with high pressure washing or dusty environments. Feature: Screw clamp terminals with flexible wiring options. Business Impact: Faster field wiring and reliable terminations with ferrules or solid conductors, reducing commissioning time. Application: Panel builds and retrofit projects where wiring density is high. Feature: Rated voltage up to 300 V and tight mechanical spec. Business Impact: Supports diverse control circuits (DC and AC) while maintaining low heat and energy use, improving energy efficiency. Application: Control circuits in PLC-driven lines and machinery, where safety and compliance are priorities. Feature: 0.8 N·m tightening torque and 6 mm wire stripping length. Business Impact: Ensures repeatable, secure connections across production runs, minimizing maintenance calls. Application: Field installations in industrial environments with frequent vibration. Industry insight: The CP9-1087 compact pushbutton sits in ABB’s pilot-device portfolio, aligning with common ETIM 6/7/8 classifications and ETIM-complete push-button specs, which helps with data synchronization in MRP systems and spare-part planning. The combination of robust enclosure protection and compatible wiring options supports faster migrations to safer, standardized control schemes across multi-site operations.
Get a Quick Quote for a ABB 1SFA619199R1087
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1087?
Enquire Now
FAQs
The pushbutton uses Screw Clamp terminals designed for Flexible with Ferrule 1 x 0.5…1.5 mm², Flexible with Ferrule 2 x 0.5…1.5 mm², Flexible with Insulated Ferrule 1 x 0.5…1.5 mm², and Solid conductors in the same range. Wiring requires up to 6 mm stripped length with a tightening torque of 0.8 N·m. This configuration reduces commissioning time and improves reliability in dense control panels.
The unit features 2 NC auxiliary contacts with 0 NO, enabling maintained stop signaling. It supports up to 300 V rated operational voltage, with AC-15 ratings of 1 A at 240 V and DC-13 ratings of 0.3 A at 24 V. Power loss is limited to a maximum of 5 W, supporting energy-efficient operation in modern automation schemes.
Yes. The pushbutton offers front protection rated IP66, IP67, and IP69K, ensuring dust ingress resistance and high-pressure washdown capability. It can operate in ambient temperatures from -25 to +70 °C and endure storage up to -40 to +85 °C. This makes it well suited for automotive, packaging, and process industries where washdowns and rugged conditions are common.
The device carries CE and UKCA conformity, plus CB, cURus UL/CSA compatibility, and other declarations. These certifications support compliance across European and North American markets, aiding risk management, supplier qualification, and regulatory alignment for machines and end-use equipment in regulated industries.
Net dimensions are compact: width 0.03 m, height 0.03 m, and depth 0.055 m, with a net weight of 0.022 kg. These small footprints help minimize panel depth, simplify layouts, and improve operator reach in compact control enclosures, while still delivering robust signaling in demanding environments.
