ABB 1SFA619199R1107 Pushbutton - Front IP69K Rating
Part Number: 1SFA619199R1107
Quick Summary
The 1SFA619199R1107 pushbutton is a compact green momentary control designed for panel-mounted start/stop applications. Engineers often struggle with lengthy wiring, installation time, and ensuring reliable performance in harsh environments. With front IP66/IP67/IP69K protection and certifications including CE, UKCA, and RoHS, this device balances ruggedness with global compliance. Its 22 mm panel footprint and chrome plastic bezel deliver a clean, professional operator interface, while screw-terminal wiring simplifies field installation. By combining robust sealing, a simple 1NO contact configuration, and a compact form factor, it enables faster projects, easier maintenance, and lower total cost of ownership across automated lines.
Product Information
Extended Description

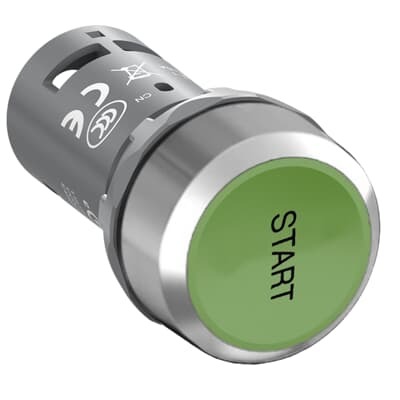

1SFA619199R1107 ABB: This product is compact green monentary pushbutton, 1NO with laser marking "START". The ABB Compact range is the all-in-one solution for simple ordering. It is the most efficient solution available, reducing installation time and cost. The compact range have the highest level of dust and water resistance on the market CP9-1107 is one of many Pushbuttons. The Pushbutton CP9-1107 is Green, Flush, NonIlluminated, Momentary with Chrome Plastic bezel, No lamp and integrated contact system 1NO for 22 mm panel holes. Electrical rating of contacts acc. to IEC 60947-5-1: AC-15 240 V 1 A, DC-13 125 V 0.2 A 24 V 0.3 A. START marking on Pushbutton.
Minimum Order Quantity
10 piece
Customs Tariff Number
85369001
Data Sheet, Technical Information
N
Instructions and Manuals
N
Product Net Width
0.03 m
Product Net Height
0.055 m
Product Net Depth / Length
0.03 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Flush
Bezel Material
Chrome Plastic
Illumination
Non-illuminated
Function
Momentary
Device Marking
START
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Power Loss
Maximum 2.5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
N
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500543351
Object Classification Code
S
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature: Compact 22 mm panel footprint and flush actuator. Business Impact: Saves panel space and reduces enclosure size, enabling more compact control panels and faster installations. Application: Ideal for small machine cabinets and regional control boxes where space is at a premium. Feature: 1NO, non-illuminated momentary function. Business Impact: Reduces complexity for start/stop circuits and minimizes power use while delivering predictable actuation. Application: Start/stop control on conveyors, packaging lines, and processing equipment. Feature: Chrome plastic bezel and durable construction. Business Impact: Enhances operator visibility and withstands tough environments while resisting wear. Application: High-traffic control stations in manufacturing and assembly lines. Feature: Screw clamp connections with 0.8 N·m tightening torque. Business Impact: Ensures reliable terminations with repeatable torque, lowering maintenance callbacks. Application: Field wiring in harsh production environments with mixed conductor types. Feature: Ambient operating range -25 to +70 °C and Pollution Degree 3. Business Impact: Supports dependable performance in factory floors and outdoor enclosures without extra cooling. Application: Industrial control panels subject to temperature variation. Feature: Front IP66/IP67/IP69K protection. Business Impact: Enables washdown-ready operation and high dust/water resistance, reducing downtime from contamination. Application: Food & beverage, pharmaceutical, and metalworking environments. Feature: Power ratings AC-15 240 V 1 A; DC-13 125 V 0.2 A; 24 V 0.3 A. Business Impact: Clear electrical compatibility for common control circuits, with safe margins for low and medium power loads. Application: Start circuits, interlocks, and signaling in mixed-voltage systems. Feature: Weight and materials (0.018 kg; Chrome Plastic bezel). Business Impact: Lightweight, easy handling during installation and replacement, lowering freight and labor costs. Application: Retrofit projects and new builds with strict weight constraints. Feature: Compliance suite (RoHS, REACH, TSCA, WEEE B2B). Business Impact: Helps customers meet global environmental and regulatory requirements with a single part. Application: Global manufacturing deployments requiring strict material declarations. Feature: 1 x 0.5–1.5 mm² or 2 x 0.5–1.5 mm² flexible/fixed conductor capacity. Business Impact: Flexible wiring options with robust terminals, reducing field rewiring time. Application: Control panels with mixed conductor configurations for scalable automation.
Get a Quick Quote for a ABB 1SFA619199R1107
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619199R1107?
Enquire Now
FAQs
To install, punch or machine a 22 mm panel hole, insert the flush actuator with the chrome bezel, and secure using standard mounting. Connect wires to the screw terminals, ensuring the stripping length is 6 mm, then tighten to 0.8 N·m. This yields a compact, vibration-resistant fit with fast, repeatable wiring.
The device provides AC-15 at 240 V, 1 A and DC-13 at 125 V, 0.2 A, with 24 V at 0.3 A also supported. It has 1 NO contact and flexible or solid conductor capacity up to 1.5 mm². This makes it suitable for start/stop circuits and small control circuits in typical automation panels.
Yes. The front protection is IP66/IP67/IP69K, offering excellent dust and water ingress resistance. With an operating range of -25 to +70 °C and a Pollution Degree 3 rating, it remains reliable in production lines, washdown zones, and outdoor enclosures.
The product comes with CB Certificate, CQC Certificate, cURus, and UKCA/CE-related declarations, along with RoHS and REACH compliance. WEEE B2B considerations are noted, ensuring suitability for global deployments and regulatory alignment.
The screw-terminal design and 0.8 N·m torque enable reliable terminations with minimal retightening. With low power loss (max 2.5 W) and a lightweight profile (0.018 kg), it reduces energy waste and simplifies installation, contributing to lower maintenance costs and faster project ROI on automated lines.
