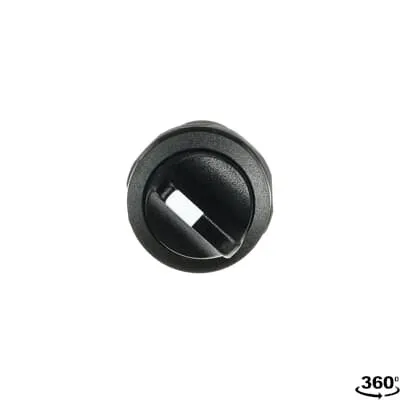

ABB 1SFA619200R1016 Selector Switch - IP69K Front
Part Number: 1SFA619200R1016
Quick Summary
1SFA619200R1016 selector switch delivers compact, reliable control for machine panels in demanding environments. Engineers often struggle with limited space, wiring complexity, and maintenance cycles when upgrading control interfaces. This device supports ABB's rugged, compact range with front protection IP66, IP67 and IP69K, CE and UKCA declarations, and CB certification for global traceability. With a non-illuminated black bezel, short handle and 1 NO contact, it streamlines panel design and installation. Designed for continuous operation from -25 to +70 C and a broad 24–300 V supply, it offers dependable performance in harsh automation tasks while reducing total cost of ownership. Secondary benefits come from its compatibility with ABB pilot devices and the compact range, enabling faster commissioning and simpler spare-part management.
Product Information
Extended Description
1SFA619200R1016 ABB: The C2SS1-10B-10 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Black - Non-illuminated - Black Plastic - 1NO - 1 NO - 0 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.02 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
B, C
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.2 kg
Package Level 1 EAN
7320500245378
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312851
E-Number (Norway)
4372689
E-Number (Sweden)
3705524
Feature → Business Impact → Application: The 2-position maintained actuator with a short handle delivers space-saving, ergonomic control for compact panels, reducing panel footprint and wiring complexity in packaging lines and packaging machines. This translates to faster installation and lower labor costs in new builds or retrofits. Feature → Business Impact → Application: The wide rated voltage and current (24–300 V, AC-15 up to 2 A, DC-13 up to 0.3 A) supports a broad control circuit palette, enabling a single device to handle multiple actuations and signaling tasks, simplifying BOMs and lowering spare-part inventories in automation cells. Feature → Business Impact → Application: Front IP66/IP67/IP69K protection and dust/water resistance ensure reliable operation in washdown and dusty environments, reducing unscheduled downtime and maintenance intervals in food & beverage, pharma, and heavy equipment lines. Feature → Business Impact → Application: Screw terminals with defined tightening torque (0.8 N·m) and standard wire-stripping length (6 mm) enable quick, repeatable field assemblies, improving commissioning speed and reliability in panel installations. Feature → Business Impact → Application: Mechanical durability rated at 0.5 million cycles provides long service life with minimal replacement, lowering lifecycle costs for servo and motor control panels in packaging and material handling. Feature → Business Impact → Application: Compatibility with ABB’s Compact C range and the pilot devices ecosystem reduces training needs and accelerates integration into existing control architectures, beneficial for OEMs delivering turnkey automation solutions. Feature → Business Impact → Application: Non-illuminated operation avoids unnecessary battery drain and simplifies operation in low-light or chopper-illuminated environments, suitable for standard control stations and emergency-stop line-ups. These collective benefits translate into measurable efficiency gains, improved compliance with safety standards, and a lower total cost of ownership for panel builders and end users.
Get a Quick Quote for a ABB 1SFA619200R1016
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619200R1016?
Enquire Now
FAQs
Install using standard 0.8 N·m tightening torque for the screw terminals, and use flexible or solid conductors within 0.5–1.5 mm² per the datasheet. Ensure 6 mm wire stripping and proper ferrule use for reliable connections. The unit is designed for straightforward panel mounting and wiring within ABB’s compact range.
The device operates from 24 to 300 V with AC-15 up to 2 A and DC-13 up to 0.3 A. It supports a 6 kV impulse withstand and is non-illuminated. This makes it suitable for control circuits in general automation panels, signal switching, and stop/start sequences in industrial equipment.
Yes. It features front protection IP66, IP67, and IP69K, plus IP20 terminal protection, making it well-suited for washdown, dust-prone, and rugged environments common in food & beverage, pharma, and metalworking applications.
The product carries CE and UKCA declarations, CB certificate, cURus, EAC, CCC declarations, and additional approvals like CQC and DNV GL in the provided data. This suite supports global market entry and compliance auditing for diverse supply chains.
It reduces installation time through its compact design and quick wiring, lowers maintenance with high mechanical durability, minimizes spare parts with a single-device solution, and ensures reliable operation in harsh environments thanks to superior IP ratings and robust electrical ratings.
