ABB 2TLA020057R2025 Cable - Shielded PVC Jacket
Part Number: 1SFA619200R1046
Quick Summary
ABB 2TLA020057R2025 Cable delivers a shielded, connector-free wiring solution for industrial automation across control panels and field devices. This design helps address EMI susceptibility and miswiring in long runs by providing a robust, ready-to-route cable on a spool. Key certifications like RoHS, REACH, and TSCA support regulatory compliance, while CMRT and WEEE B2B guidance underpin responsible sourcing and end-of-life considerations. With a 250 m spool and a black PVC jacket, this cable balances reliability with procurement efficiency, serving as a trusted backbone for automation wiring, sensor-actuator patches, and control cabinet interconnects. For engineers and procurement teams, the combination of compatibility, durability, and clear documentation translates into faster project timelines and predictable lifecycle costs.
Product Information
Extended Description

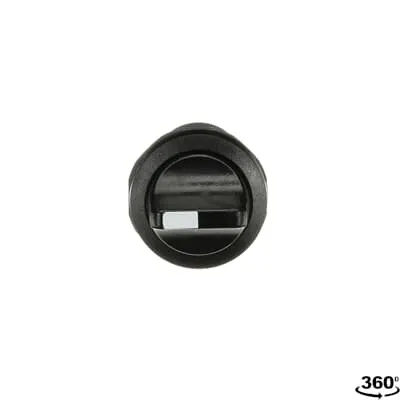

1SFA619200R1046 ABB: The C2SS1-10B-01 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Black - Non-illuminated - Black Plastic - 1NC - 0 NO - 1 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.02 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
B, C
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.2 kg
Package Level 1 EAN
7320500245439
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312857
E-Number (Sweden)
3705530
Feature → Shielded, 13-conductor cable with free-end terminations reduces EMI and cross-talk across motor drives and I/O networks, delivering improved signal integrity and fewer debugging cycles in automation projects. Business Impact → Lower downtime, higher data fidelity, and faster commissioning. Application → Suitable for sensor-actuator patch cords and control panel wiring where EMI performance is critical. Feature → 250 m spool with a black PVC jacket enables long, continuous runs with minimal joints, cutting installation time and joint failure risk. Business Impact → Reduced labor costs and fewer field failures in complex machine builds. Application → Ideal for large-scale production lines or machine tools requiring extended, traceable lengths. Feature → Wide operating temperature range (-20 to 80 °C) and PVC jacket provide reliable performance in harsh manufacturing environments. Business Impact → Consistent performance in diverse environments, decreasing replacement cycles and maintenance time. Application → Engineered for assembly lines, automotive fixtures, or process equipment exposed to heat and dust. Feature → 24 V rated control supply and free-end terminations simplify integration with common PLCs and Tina 8A systems. Business Impact → Faster wiring, fewer connector mismatches, and improved compatibility with standard automation hardware. Application → Directly supports typical industrial control setups in panel builders. Feature → Comprehensive compliance (RoHS, REACH, TSCA; CMRT; WEEE B2B) provides regulatory confidence and traceability. Business Impact → Easier audits, reduced supply-chain risk, and enhanced corporate responsibility. Application → Useful for regulated industries and environmentally conscious procurement. Feature → ETIM and eClass alignment aids cataloging and cross-referencing in ERP and purchasing workflows. Business Impact → Streamlined sourcing and accurate product matching. Application → Improves ePROCurement accuracy and catalog search relevance.
Get a Quick Quote for a ABB 1SFA619200R1046
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619200R1046?
Enquire Now
FAQs
The free-end terminations on both device and field sides simplify installation by allowing direct termination at terminals without bulky connectors. Route the 250 m spool along approved cable trays, use proper strain relief, label conductors, and terminate each conductor to its corresponding I/O point. This approach minimizes risk of miswiring and reduces on-site labor time, while preserving EMI shielding integrity.
Key specs include 13 conductors (11 × 0.52 mm2 and 2 × 0.82 mm2), shielded construction, 24 V rated control supply, and a wide operating temperature range of -20 to 80 °C. The jacket is black PVC, and the cable length is 250 m on a spool. It is suitable for automation wiring in control cabinets and sensor-actuator paths.
Yes, the cable is specified as suitable for Tina 8A, aligning with common industrial automation applications. Its shielded 13-conductor design helps deliver reliable control and sensing signals in environments with potential EMI, and the free-end terminations simplify integration with Tina-based controllers and related I/O modules.
The product adheres to RoHS and REACH directives, with TSCA declarations for safety products, CMRT for conflict minerals, and WEEE B2B classification. Additional classifications include CMRT, WEEE, and ETIM/eClass alignments, supporting compliance, traceability, and sustainable procurement practices.
The long 250 m spool reduces the number of joints and connections, lowering installation time and the chance of joint failures. Shielding improves signal integrity, reducing debugging and downtime. The robust PVC jacket supports longer service life in harsh environments, lowering replacement and maintenance costs over the system’s lifecycle.
