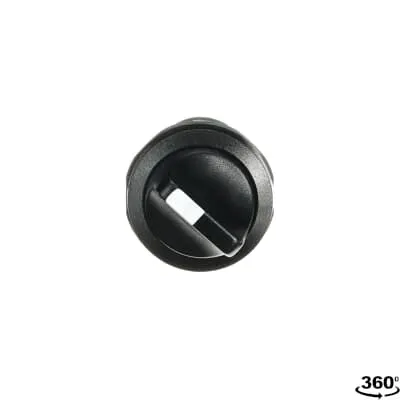

ABB 1SFA619200R1056 Selector Switch - 6 kV Uimp
Part Number: 1SFA619200R1056
Quick Summary
The ABB 1SFA619200R1056 selector switch is a compact, 2-position maintained control device used in panel applications. Many engineers face longer install times and unreliable performance in dusty or washdown environments. Certified CE and UKCA, with front IP66/IP67/IP69K protection and rugged 2NC wiring, support safe, compliant operation across industries. Built for ABB's compact range, it offers quick installation and predictable performance, delivering cost savings and easier maintenance in automation projects.
Product Information
Extended Description
1SFA619200R1056 ABB: The C2SS1-10B-02 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Black - Non-illuminated - Black Plastic - 2NC - 0 NO - 2 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
B, C
Number of Auxiliary Contacts NC
2
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500245460
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39121500
E-Number (Finland)
2312860
E-Number (Norway)
4372692
E-Number (Sweden)
3705533
Feature → Business Impact → Application: The compact form factor, part of ABB’s compact range, reduces panel space requirements and simplifies enclosure layouts, boosting installation speed and reducing cabinet height. This translates to lower assembly costs and faster machine commissioning on assembly lines and process plants. Application: panel-mounted control stations where space is at a premium and quick replacement is needed. Feature → Business Impact → Application: Maintained 2-position operation with 2 NC contacts and no NO contacts provides a straightforward, fail-safe control path for start/stop and mode selection circuits. Benefit: predictable operation and reduced risk of accidental switching, especially in emergency or safety-critical workflows. Application: machine start/stop circuits in conveyors, presses, and packaging lines. Feature → Business Impact → Application: 300 V rated operation with AC-15 up to 2 A and DC-13 up to 0.3 A at 24 V ensures compatibility with typical control circuits and low-voltage DC logic, enabling reliable interfacing with PLCs and relays. Application: control panels and pilot device layouts that require standard voltage levels. Feature → Business Impact → Application: 6 kV impulse withstand and IP66/IP67/IP69K front protection deliver rugged integrity in dusty, washdown, or outdoor environments, reducing unscheduled downtime. Application: harsh industrial environments, such as metalworking, food & beverage, and water/wastewater facilities. Feature → Business Impact → Application: Screw-terminal connections with defined tightening torque (0.8 N·m) and wire stripping length (6 mm) ensure robust, vibration-resistant terminations. Benefit: durable field wiring and reliable long-term performance. Application: field installations where mechanical vibration is common. Feature → Business Impact → Application: 0.5 million mechanical durability provides extended service life and lower maintenance costs. Application: high-cycle control operations and frequent operator interaction. Feature → Business Impact → Application: IP rating compatibility and enclosure types (NEMA Type1 | Type12 | Type13 | Type3R | Type4 | Type4X) enable flexible mounting in a range of control cabinets and environmental conditions. Application: versatile installation across industrial zones. Additional note: 10-piece minimum order quantity (MOQ) and packaging by bag support predictable procurement and streamlined stocking for OEMs and maintenance teams. This aligns with typical procurement processes in automation projects, improving supply chain reliability.
Get a Quick Quote for a ABB 1SFA619200R1056
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619200R1056?
Enquire Now
FAQs
To install the ABB 1SFA619200R1056, connect wires to the screw terminals using compatible ferrules or solid conductors within 0.5–1.5 mm². Tighten to 0.8 N·m as specified, and ensure proper stripping length of 6 mm. With 2NC contacts and no NO contacts, wire the control circuit for a straightforward start/stop or mode selection. Verify insulation and secure mounting in a panel opening that accommodates the compact form factor.
Yes. The selector switch features front protection ratings IP66, IP67, and IP69K, plus IP20 at the terminals, making it well-suited for dusty, washdown, and high-pressure environments. For installation in such spaces, position the device to minimize exposure to direct washdown and ensure proper sealing against ingress while maintaining accessibility for operation and maintenance.
The device is rated for 300 V maximum operational voltage. It handles AC-15 up to 2 A and DC-13 up to 0.3 A at 24 V, with 0.2 A at 125 V. It also offers a 6 kV rated impulse withstand voltage. These specs support reliable control of standard automation circuits and PLC interfaces while meeting common safety standards.
This selector switch carries CE and UKCA conformity, along with multiple third-party certifications documented in its product data, including CB Certificate and CQC where applicable. It also aligns with RoHS and REACH declarations for material compliance and supports global supply chains for certified pilot devices in automation projects.
The minimum order quantity is 10 pieces. Packaging information indicates 'bag 10 piece' units per carton or packaging level, which facilitates bulk procurement for OEM assemblies and maintenance inventories while aligning with typical automation supply-chain practices.
