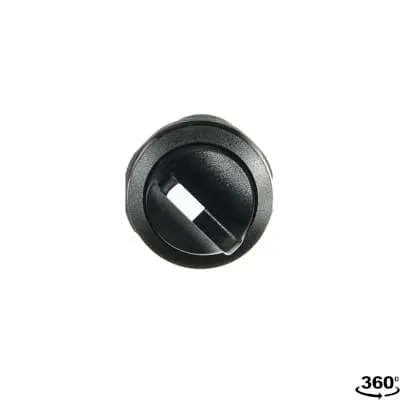

ABB 1SFA619200R1076 Selector Switch - Front IP66/IP67/IP69K
Part Number: 1SFA619200R1076
Quick Summary
ABB 1SFA619200R1076 Selector Switch is a compact, two-position pilot device designed for reliable panel control. Engineers often struggle with wiring complexity and limited space when upgrading control stations, but this unit reduces both with screw terminals and a small footprint. It carries CE conformity, UL/CSA listings, and CB certification, plus robust front protection ratings IP66/IP67/IP69K to withstand washdowns and harsh environments. With a 24–300 V operating range and 1NO+1NC contacts, it enables fast installation, easy maintenance, and long-term reliability in automation panels. This combination supports equipment uptime and lowers lifecycle costs for OEMs and integrators.
Product Information
Extended Description
1SFA619200R1076 ABB: The C2SS1-10B-11 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Black - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
B, C
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500245491
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312863
E-Number (Norway)
4372693
E-Number (Sweden)
3711300
Feature: Two-position maintained operation with 1 NO and 1 NC auxiliary contact. Business Impact: Delivers definite, repeatable control states, improving machine reliability and operator confidence. Application: Ideal for start/stop circuits in automation panels where predictable actuation is essential. Feature: Front protection rated IP66/IP67/IP69K. Business Impact: Ensures durability in washdown, dusty, and harsh environments, reducing component failure. Application: Suitable for manufacturing floors, packaging lines, and food & beverage processing stations. Feature: Ultra-compact footprint (0.03 m W x 0.03 m H x 0.072 m D). Business Impact: Saves panel space and reduces enclosure costs while simplifying installation. Application: Fits tight control cabinets and retrofit projects with limited mounting room. Feature: Screw terminals with versatile conductor compatibility (0.5–1.5 mm²; ferrules supported). Business Impact: Speeds wiring, lowers installation time, and improves termination reliability. Application: Field installations in automation cabinets and control panels. Feature: Broad electrical ratings (24–300 V; AC‑15 up to 2 A at 240 V; DC‑13 up to 0.3 A at 24 V). Business Impact: Enables use across mixed DC/AC control circuits and reduces part counts. Application: Control of motors, valves, and logic in industrial networks. Feature: Robust durability (0.5 million mechanical cycles) and wide operating temperature (-25 to +70 °C). Business Impact: Extends service life in demanding environments, lowering maintenance costs. Application: High‑duty-cycle applications in automation lines and process equipment.
Get a Quick Quote for a ABB 1SFA619200R1076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619200R1076?
Enquire Now
FAQs
This selector switch is designed for panel mounting within ABB's compact range. It uses screw terminals and supports flexible with ferrule 1 x 0.5...1.5 mm², flexible with ferrule 2 x 0.5...1.5 mm², and solid conductors in the same size range. Termination torque is 0.8 N·m, with a recommended wire strip length of 6 mm to ensure secure connections and reliable operation in automation panels.
The device offers 2-position maintained operation with 1 normally open and 1 normally closed auxiliary contact. Electrical ratings include AC-15 of up to 2 A at 240 V (and 220/240 V variants) and DC-13 up to 0.3 A at 24 V (0.2 A at 125 V). Rated insulation voltage is 300 V, with a rated impulse withstand voltage of 6 kV, suitable for mixed DC/AC control circuits.
Yes. The front of the device is rated IP66/IP67/IP69K, while terminals are IP20, providing excellent protection against dust and water ingress at the control face. Operating temperature ranges from -25 to +70 °C, and the unit supports demanding environments typical in manufacturing, packaging, and process lines, ensuring reliable performance under washdown conditions.
The product carries CE conformity and CB certificate documentation, with UL/CSA compatibility for wiring capacities, plus EC/EAC declarations and RoHS compliance for pilot devices. Additional certifications include CQC, DNV GL, and UKCA in various declarations, underscoring broad regulatory compliance for global deployments.
The compact form factor, screw-terminal termination, and wide voltage range reduce wiring complexity and cabinet space, cutting installation time. With 0.5 million mechanical cycles and robust protection ratings, maintenance intervals are extended, lowering lifecycle costs and improving equipment uptime for OEMs and end users in automation projects.
