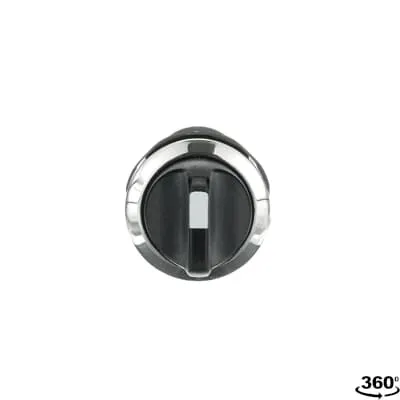

ABB 1SFA619200R3026 Selector Switch - IP66/IP69K
Part Number: 1SFA619200R3026
Quick Summary
ABB 1SFA619200R3026 selector switch provides reliable two-position control for compact pilot device applications in automation panels. Engineers frequently battle lengthy installation and wiring errors when integrating pilot switches into cramped control spaces. It carries CE conformity, UKCA declarations, and a CB certificate to verify global safety and quality, with RoHS compliance ensuring reduced hazardous substances. As part of ABB's compact range, the unit minimizes panel depth and simplifies wiring, delivering faster commissioning and lower maintenance costs. This combination of rugged durability and flexible connectivity supports aerospace, automotive, and general industrial automation projects, aligning with procurement goals for reliability, traceability, and total cost of ownership.
Product Information
Extended Description
1SFA619200R3026 ABB: The C2SS1-30B-20 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Black - Non-illuminated - Chrome Metal - 2NO - 2 NO - 0 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.032 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
B, C
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.32 kg
Package Level 1 EAN
7320500245705
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
Feature: Compact range design reduces panel footprint and wiring complexity. Business Impact: Shortens installation time, lowers labor costs, and enables denser control cabinets. Application: Ideal for new builds or retrofits in packaging lines and process plants. Feature: Wide electrical ratings and flexible wiring options. Business Impact: Enables direct PLC interfacing with 24–300 V operation and AC-15 2 A / DC-13 0.3 A specifications, reducing design risk and spare parts. Application: Control circuits for conveyors, pumps, and interlocks across industries. Feature: Maintained two-position operation with chrome bezel and two NO contacts. Business Impact: Predictable, safe operation with minimal misoperation and straightforward maintenance. Application: Start/stop and selector-based interlocks in harsh environments. Feature: Rugged protection and temperature tolerance. Business Impact: Front protection IP66/IP67/IP69K supports washdown and dusty environments, extending service life in demanding settings. Application: Food & beverage, packaging, and outdoor or dusty plants. Feature: Reliable termination and installation. Business Impact: Screw terminals with 0.8 N·m torque and 6 mm wire-stripping length improve termination reliability and reduce commissioning errors. Application: Any panel with tight wiring space and frequent terminations. Feature: Compliance and traceability. Business Impact: RoHS, REACH, and WEEE alignment minimize regulatory risk and simplify audits. Application: Global deployments with standard supplier approvals.
Get a Quick Quote for a ABB 1SFA619200R3026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619200R3026?
Enquire Now
FAQs
Install with flexible or solid conductors ranging 0.5–1.5 mm², or ferrules as supported. Insert conductors into the screw terminals and tighten to 0.8 N·m. Use a 6 mm wire stripping length and confirm secure, vibration-free terminations. Ensure the panel cutout accommodates the compact range and verify the front IP protection after mounting.
The device provides 2 normally open (NO) contacts with 0 normally closed (NC). Rated operational voltage is 24–300 V, with AC-15 up to 2 A at 240 V and DC-13 up to 0.3 A at 24 V. Power loss is up to 5 W, and the unit offers 6 kV impulse withstand, suitable for standard control circuits.
Yes. The front protection includes IP66, IP67, and IP69K ratings, making it highly resistant to washdowns and dust. It is designed for rugged industrial environments and can be used in packaging, material handling, and process plants that require durable, reliable operation under harsh conditions.
The device carries CE Declarations of Conformity, UKCA, and a CB certificate, with RoHS and REACH compliance. It also aligns with WEEE B2B requirements and is suitable for global deployment across markets with regulatory expectations for pilot devices and automation components.
With a mechanical durability of 0.5 million cycles and a compact, simple termination scheme, maintenance needs are minimal. The compact range reduces installation time and panel space, delivering lower lifecycle costs and faster time-to-operate, which translates to tangible ROI in high-volume production settings.
