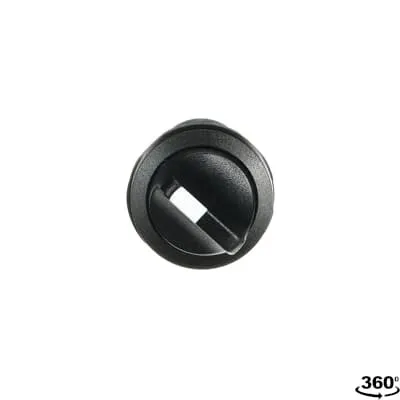

ABB 1SFA619201R1016 Selector Switch - IP69K

Part Number: 1SFA619201R1016
1SFA619201R1016
Manufacturer
ABB
Part number
1SFA619201R1016
Category

Quick Summary

ABB 1SFA619201R1016 selector switch is a compact, 2-position maintained control ideal for panel-mounted machinery and safety circuits. In practice, engineers struggle with crowded panels and long wiring runs that slow commissioning and increase the risk of wiring errors. This device carries CE and UKCA conformity marks and provides front protection up to IP69K, plus CB certification for global compliance. By embracing ABB's compact range, technicians gain straightforward installation, durable performance in harsh environments, and scalable pilot-device compatibility that reduce lead times and total cost of ownership.

Product Information

Extended Description

1SFA619201R1016 ABB: The C2SS2-10B-10 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Black - Non-illuminated - Black Plastic - 1NO - 1 NO - 0 NC - 24 ... 300, 300 V This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.02 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
A, C
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.2 kg
Package Level 1 EAN
7320500245828
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312867
E-Number (Sweden)
3705538
The compact design with a short handle and black bezel reduces panel footprint and simplifies operator access, enabling faster start-ups and cleaner wiring in control cabinets. The maintained two-position function with a non-illuminated bezel minimizes wiring complexity and energy use in non-illuminated control applications, while delivering clear actuation states for reliability in repetitive cycles. Electrical ratings cover 24 to 300 V operation with AC-15 at 2 A and DC-13 at lower voltages, including a 6 kV impulse withstand, providing robust performance across common automation circuits and machine tools. Front protection of IP66, IP67, and IP69K (with terminals IP20) supports washdowns and dusty environments, reducing maintenance intervals and downtime in demanding facilities. Screw terminals support flexible and solid conductors with ferrule compatibility and a tightening torque of 0.8 N·m, ensuring secure terminations that resist vibration in harsh installations. Compliance and lifecycle considerations are reinforced by RoHS, REACH, TSCA declarations and a broad range of certifications (CB, CQC, EAC, UKCA, CE), delivering regulatory peace of mind and simplified auditing for regulated industries.

Get a Quick Quote for a ABB 1SFA619201R1016

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in ABB 1SFA619201R1016? Enquire Now

FAQs

The 1SFA619201R1016 uses standard screw terminals compatible with flexible and solid conductors (including ferrules). Target 0.8 N·m tightening torque and 6 mm wire stripping length for secure connections. Its compact form and short handle simplify panel mounting, while the 24–300 V ratings align with common control circuits. Plan wiring around 1 NO and 0 NC to support typical control logic and ensure clear actuation states during commissioning.
This selector switch provides 1 NO contact and 0 NC, with rated operational voltage of 24–300 V. AC-15 current rating is 2 A at 240 V, and DC-13 current is 0.3 A at 24 V (0.2 A at 125 V). It includes a 6 kV rated impulse withstand and a maximum power loss of 2.5 W, delivering reliable actuation in demanding automation tasks.
Yes. The front enclosure offers IP66, IP67, and IP69K protection, with terminals rated IP20, making it well suited for washdown and dusty environments common in manufacturing, food & beverage, and packaging lines. The device’s mechanical durability of 0.5 million cycles further supports sustained operation in high-cycle applications.
The product carries CE and UKCA conformity markings and supports CB certification, CQC, EAC, DNV GL, and other declarations. It aligns with RoHS, REACH, TSCA, and WEEE requirements (B2B), and is designed to simplify regulatory audits for global deployment in regulated industries.
With non-illuminated operation and screw-terminal terminations, maintenance intervals are predictable and straightforward, reducing field service time. The rugged IP-rated front and robust mechanical durability minimize downtime, improving overall equipment effectiveness (OEE). The compact range simplifies installation, accelerates commissioning, and lowers total cost of ownership through reliable performance and scalable integration with ABB pilot devices.
