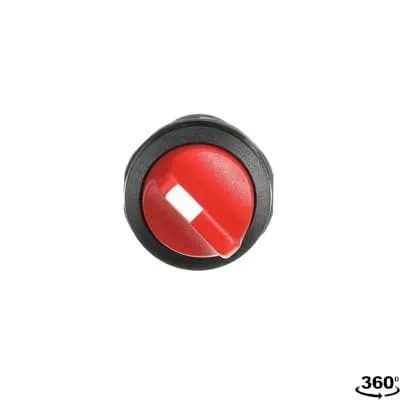

ABB 1SFA619201R1071 Selector Switch - 6 kV IP66 Front
Part Number: 1SFA619201R1071
Quick Summary
The ABB 1SFA619201R1071 Selector Switch is a compact two-position maintained pilot device ideal for control panels and automation lines. It minimizes wiring complexity and installation time in crowded, vibration-prone panels. Designed for global deployment, it carries CE and UKCA declarations, CB and cURus recognition, and RoHS compliance, with front protection up to IP66/IP69K to thrive in harsh environments. This combination translates to lower total cost of ownership while ensuring reliable operation, and it fits neatly within ABB's Compact range for flexible wiring and straightforward maintenance.
Product Information
Extended Description
1SFA619201R1071 ABB: The C2SS2-10R-11 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Red - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
A, C
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500245934
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312878
E-Number (Norway)
4373493
E-Number (Sweden)
3705549
The 1SFA619201R1071 offers a compact 2-position maintained selector switch with a short handle, saving panel space and simplifying installation while delivering reliable control in tight enclosures. It provides one normally open and one normally closed auxiliary contact (1 NO + 1 NC), enabling straightforward sequencing and interlocking in machine control circuits. With front protection rated IP66, IP67, and IP69K, it performs under washdown and dusty conditions, reducing downtime and maintenance costs. The device withstands surge events up to 6 kV (Uimp) and supports standard industrial wiring with screw terminals, improving field wiring efficiency and consistency. The rugged mechanical design delivers up to 0.5 million actuations, ensuring long service life in demanding environments. Its compatibility with UL/CSA wiring schemes and the ABB Compact range supports scalable automation projects across industries.
Get a Quick Quote for a ABB 1SFA619201R1071
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619201R1071?
Enquire Now
FAQs
This selector switch uses screw terminals and supports flexible or solid conductors from 0.5 to 1.5 mm², including ferrules. It accommodates 1 x 0.5…1.5 mm² or 2 x 0.5…1.5 mm² configurations, with a tightening torque of 0.8 N·m to ensure secure, vibration-resistant connections and reliable field wiring.
Yes. The front is rated IP66, IP67, and IP69K, offering excellent dust and water ingress protection. It operates from -25 to +70 °C, making it suitable for outdoor enclosures, washdown zones, and demanding production lines while maintaining electrical integrity.
It carries CE and UKCA declarations, plus CB and cURus recognition, and RoHS compliance. These certifications validate global regulatory compliance, simplify cross-border procurement, and support risk reduction in safety-critical applications.
For AC-15, it supports 2 A at 240 V or 2 A at 220/240 V. For DC-13, it supports 0.3 A at 24 V and 0.2 A at 125 V. Rated insulation voltage is 300 V, with a rated impulse withstand of 6 kV, ensuring reliable control under standard industrial loads.
The Compact range offers space-saving, modular pilot devices with rapid wiring and standardized interfaces, reducing panel depth, assembly time, and commissioning effort. The C2SS2-10R-11 variant maintains a practical footprint while delivering robust performance across global standards, thus lowering lifecycle costs and simplifying future upgrades.
