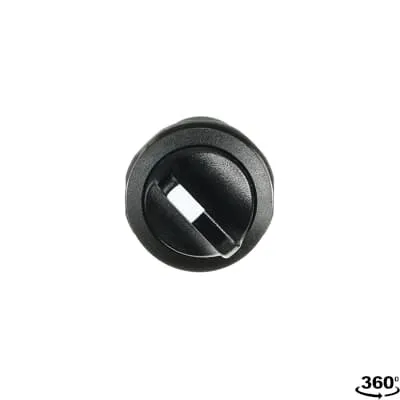

ABB 1SFA619201R1076 Selector Switch - IP66 Front
Part Number: 1SFA619201R1076
Quick Summary
ABB 1SFA619201R1076 Selector Switch enables reliable manual control on machine panels. It is designed for compact spaces where quick, maintenance-friendly operation matters. Engineers often struggle with devices that fit tight enclosures yet withstand demanding environments, and this unit addresses that gap with a robust, non-illuminated design. It meets CE and UKCA safety standards and offers front protections IP66, IP67, and IP69K, enabling dust and water resistance in hostile settings. As part of ABB’s compact range, it reduces installation time and wiring complexity, while supporting a wide operating voltage of 24 to 300 V. This combination delivers a versatile, cost-efficient control solution for industrial automation projects and panel builders seeking reliable pilot devices.
Product Information
Extended Description
1SFA619201R1076 ABB: The C2SS2-10B-11 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Black - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
China (CN)
Lead Time
28 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Lead Time
32 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
A, C
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500245941
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312879
E-Number (Norway)
4373494
E-Number (Sweden)
3711302
2-position maintained operation provides a stable state until the operator changes it, delivering predictable machine control and reducing the risk of unintended starts. This translates to improved line uptime and safer start/stop sequencing in conveyors, presses, and automated stations. The unit offers 1NO+1NC auxiliary contacts, which simplifies wiring and reduces the number of components needed in a control circuit, cutting installation time and total cost of ownership. With a compact form factor and panel-friendly bezel, it fits tight enclosures and enables faster panel assembly for machine builders and integrators. Front protection IP66/IP67/IP69K plus IP20 terminal protection ensures robust operation in dusty, wet, and wash-down environments common in manufacturing. Screw terminals and a tightening torque of 0.8 N·m support reliable, vibration-resistant connections across a range of conductor sizes. The operating voltage span 24–300 V accommodates both DC and AC control systems, improving compatibility with existing controllers and sensors. All these features align with ABB’s Compact Range ethos, delivering durable, low-maintenance pilot devices that reduce field service intervals and enhance overall reliability. In practice, this means fewer field adjustments, simpler substitutions, and smoother commissioning across diverse industrial applications.
Get a Quick Quote for a ABB 1SFA619201R1076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619201R1076?
Enquire Now
FAQs
This selector switch is panel-mounted and uses screw terminals rated for flexible and solid conductors from 0.5 to 1.5 mm². Ensure the mounting hole aligns with standard pilot device cutouts, tighten to 0.8 N·m, and route wires to NO/NC contacts in accordance with your control circuit. Prefer a protected, dry enclosure to maintain IP66 front protection and minimize ingress.
The device provides 1NO+1NC auxiliary contacts with a rated operational voltage range of 24–300 V (AC/DC as applicable). It supports AC-15 and DC-13 loads with appropriate current ratings, enabling reliable control of motors and actuators in typical industrial panels without oversizing wiring or components.
Yes. The C2SS2-10B-11 variant features front IP66/IP67/IP69K protection, along with a rugged black plastic bezel and non-illuminated operation. This makes it well-suited for dusty or wash-down environments, helping sustain performance in food, beverage, and manufacturing settings where protective enclosures matter.
The product aligns with CE and UKCA declarations for pilot devices, plus CB, CQC, and EAC certifications. It is RoHS-compliant and designed for safe operation across international markets, ensuring compliance during system integration and end-user audits.
The maintained 2-position function minimizes operational wear and avoids accidental state changes, reducing downtime. Its compact design, robust IP protection, and screw-terminal reliability lower wiring costs and service intervals, contributing to a favorable return on investment for panel builders and production lines requiring durable, easy-to-service pilot devices.
