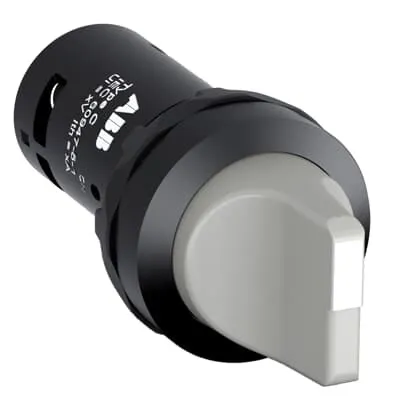

ABB 1SFA619201R1077 Selector Switch - IP66/IP67/IP69K
Part Number: 1SFA619201R1077
Quick Summary
ABB 1SFA619201R1077 Selector Switch is a compact, two-position maintained pilot device designed for control panels and machine safety circuits. In harsh industrial environments, space constraints and wiring complexity can slow installation and inflate costs. This model delivers front-face protection with IP66/IP67/IP69K ratings and robust insulation up to 300 V, backed by CE conformity and RoHS compliance for regulatory alignment. The compact range simplifies installation, reduces panel depth, and minimizes accessory costs. For OEMs and service teams alike, this translates into faster commissioning, easier field servicing, and lower total cost of ownership, while maintaining flexibility with 1 NO + 1 NC contacts and standard screw terminals.
Product Information
Extended Description
1SFA619201R1077 ABB: The C2SS2-10U-11 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Grey - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Grey
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
A, C
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500245958
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39121500
E-Number (Finland)
2312880
E-Number (Sweden)
3705550
Feature 1: Compact form factor and lightweight design reduce panel footprint and installation time, enabling quicker line setup and easier cable routing. Business impact: shorter commissioning windows and lower labor costs per project. Application: small to mid-size control panels and instrument housings where space is at a premium. Feature 2: Maintained 2-position operation with a short handle delivers reliable actuation and a clear stop/start indication, improving operator workflow and reducing misoperation in demanding lines. Business impact: improved process safety and reduced downtime due to mis-tacts. Application: conveyors, presses, and automated material handling. Feature 3: Electrical ratings of up to 300 V with 1 NO + 1 NC contacts (AC-15 2 A, DC-13 0.3 A at 24 V) allow direct integration into standard control circuits, lowering the need for intermediary relays. Application: start/stop and interlock circuits in automated machinery. Feature 4: Robust environmental protection including front IP66/IP67/IP69K and a wide operating temperature range (-25 °C to +70 °C) ensure dependable performance in dusty, wash-down, or high-vibration environments. Business impact: reduced maintenance cycles and longer service life. Application: food processing lines, wash-down applications, and outdoor installations. Feature 5: Mechanical durability of 0.5 million cycles and low power loss (maximum 5 W) translate to long life and predictable maintenance planning. Application: high-cycle applications where reliability matters. Feature 6: Easy wiring with screw terminals and versatile conductor compatibility (0.5–1.5 mm²) plus ferrule options simplifies installation, while tightening torque of 0.8 N·m ensures consistent torque and secure connections. Application: panel builders seeking fast, repeatable installation. Feature 7: Compliance and certifications including CE, RoHS, CB, UKCA, and DoC coverage give audit-ready documentation and global applicability. Application: global deployments requiring formal conformity records. Feature 8: Part of ABB’s Compact C pilot devices family ensures mechanical and electrical compatibility with other ABB components, enabling streamlined spare parts management and scalable control architectures. Application: system integrators upgrading existing panels or designing modular control solutions.
Get a Quick Quote for a ABB 1SFA619201R1077
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619201R1077?
Enquire Now
FAQs
This selector switch uses screw terminals compatible with flexible and solid conductors 0.5–1.5 mm², including ferrule options. Wire stripping length is 6 mm, and tightening torque is 0.8 N·m, enabling quick, repeatable installations across standard control panels and machine enclosures.
The device provides 1 NO + 1 NC auxiliary contacts with a rated operational voltage of 300 V. AC-15 current up to 2 A and DC-13 up to 0.3 A at 24 V (0.2 A at 125 V). It also withstands 6 kV impulse, supporting reliable actuation in typical machine control circuits.
Yes. It offers front protection IP66/IP67/IP69K and operates in ambient temperatures from -25 °C to +70 °C, with robust sealing and dust/water resistance. This makes it well-suited for conveyors, washing stations, and outdoor or rugged industrial settings.
The product carries CE conformity and RoHS compliance, with UL/CSA and other certifications reflected in the broader ABB pilot device family. These certifications ensure regulatory compliance, facilitating global deployment and simplifying supplier audits, quality control, and end-user safety validations.
With a mechanical durability of 0.5 million cycles and low heat dissipation (max 5 W), maintenance intervals are extended and downtime reduced. Its compact form and simple screw-terminal wiring shorten installation time, lowering labor costs and improving overall return on investment for automated line projects.
