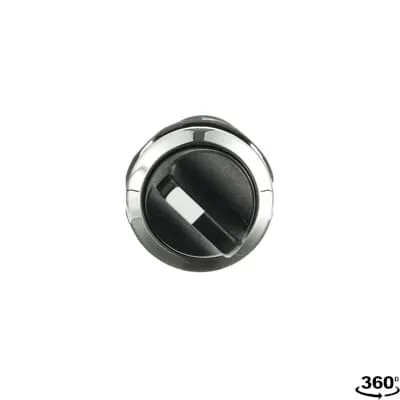

ABB 1SFA619201R3016 Selector Switch - IP69K Front
Part Number: 1SFA619201R3016
Quick Summary
ABB 1SFA619201R3016 Selector Switch is a compact, two-position maintained pilot device designed for rugged industrial control panels. In practice, engineers face costly wiring errors and extended installation times when upgrading machines or adding new control stations. This model carries key certifications including CE, UKCA, and CB, with RoHS and REACH compliance to support global deployments, while front protection is rated IP66, IP67, and IP69K for harsh environments. As part of ABB’s Compact range, it delivers a space-saving footprint and straightforward installation, helping reduce panel depth and wiring complexity. It’s well suited for pilot devices and selector switch applications across manufacturing, packaging lines, and processing equipment.
Product Information
Extended Description
1SFA619201R3016 ABB: The C2SS2-30B-10 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Black - Non-illuminated - Chrome Metal - 1NO - 1 NO - 0 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.028 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
A, C
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.28 kg
Package Level 1 EAN
7320500246122
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
Feature: Compact two-position maintained design with 1 NO contact and 0 NC. Business Impact: Reduces panel footprint and simplifies wiring, enabling faster panel upgrades and cleaner wiring diagrams. Application: Ideal for start/stop control and simple machine selection on compact control panels. Feature: Wide operating voltage range 24–300 V and compatibility with both DC and AC circuits. Business Impact: Enables a single device to support diverse control circuits, lowering parts variety and stock costs. Application: Suitable for mixed-voltage automation architectures in conveyors and process lines. Feature: Front protection rated IP66, IP67, and IP69K with terminals protected to IP20. Business Impact: Delivers robust wash-down and dust protection, minimizing unplanned downtime and maintenance. Application: Motor control panels in food/beverage, packaging, and pharmaceutical environments. Feature: Chrome metal bezel, black non-illuminated short handle, and maintained function. Business Impact: Improves ergonomics and visual integration while reducing maintenance interventions. Application: Visible, tactile operator interface on rugged equipment. Feature: Comprehensive certifications and RoHS/REACH compliance (CE, UKCA, CB, EAC, CCC, UL/CSA where applicable). Business Impact: Supports global procurement and regulatory adherence, reducing risk in multi-region deployments. Application: Global manufacturing setups with strict compliance needs. Feature: Screw terminals with 0.8 N·m tightening torque and various wiring configurations (flexible/solid, ferrules). Business Impact: Simplifies installation, ensures repeatable termination quality, and lowers rework. Application: Field wiring in control cabinets and on-machines with diverse conductor types.
Get a Quick Quote for a ABB 1SFA619201R3016
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619201R3016?
Enquire Now
FAQs
This selector switch uses screw terminals with a tightening torque of 0.8 N·m, supporting flexible and solid conductors from 0.5 to 1.5 mm². It accommodates ferrules and insulated ferrules, making field wiring straightforward and reliable. The product ships with a 6 kV impulse withstand, and its compact footprint reduces panel depth, easing enclosure planning and wiring harness routing.
Key ratings include rated operational voltage of 24 to 300 V, with AC-15 up to 2 A at 240 V and DC-13 up to 0.3 A at 24 V. It is a 2-position maintained device with 1 NO and 0 NC contacts, suitable for simple start/stop signaling and selector functions. The device also provides a front IP66/IP67/IP69K protection class for rugged environments.
Yes. The front of the device is protected IP66, IP67, and IP69K, while terminals remain IP20. This combination supports wash-down and dusty environments common in manufacturing, packaging, and processing lines. The chrome bezel and non-illuminated actuator also resist splashes and dirt, helping maintain reliable operation over a long service life.
The selector switch carries CE and UKCA declarations, CB certificate, and RoHS/REACH compliance, along with additional certifications like UL/CSA, CCC, and EAC where applicable. This broad certification footprint reduces compliance risk in global procurements and accelerates multi-region installations.
The device offers 0.5 million mechanical durability cycles and a robust 0.8 N·m torque for termination, improving long-term reliability and reducing maintenance interventions. Its compact range lowers panel space and wiring complexity, contributing to shorter commissioning times and lower total cost of ownership in new machine builds and panel retrofits.
